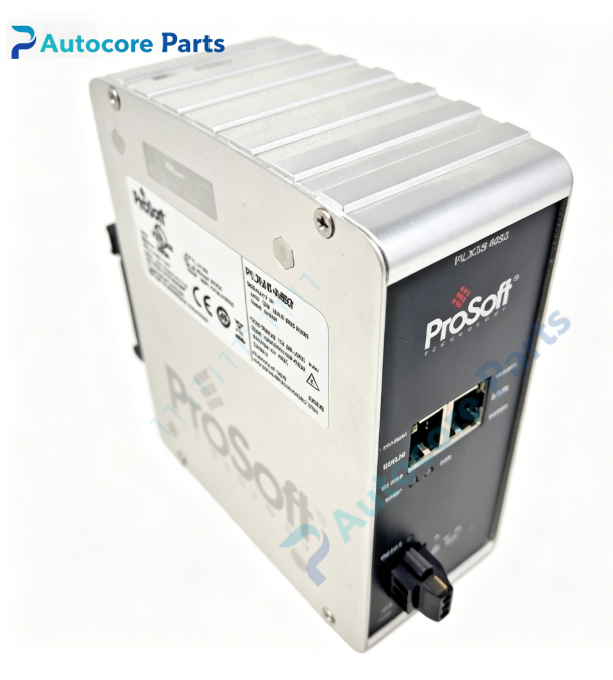

ProSoft PLX35-NB2 Industrial Network Bridge

Technical Specifications

Model:PLX35-NB2

Brand:ProSoft

Product type:Industrial Network Bridge for Secure Remote Access

Power supply:10~30VDC,peak power consumption less than 6W

Ethernet interface:210/100Base-T RJ45

Storage:SD card slot,max 32GB SDHC

Weight:0.45kg

Operating temperature:-30℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:140.1mm52.4mm*110.9mm

Certification:CE,UL,Class I Division2,ATEX Zone2

System compatibility

PLX35-NB2 belongs to ProSoft PLX35 series industrial network bridge.

It is used for secure remote access of on-site automation control network.

Compatible with Rockwell, Siemens and other brand PLC, EtherNet/IP and Modbus TCP field devices.

Support Belden Horizon cloud platform for remote maintenance, program upload/download and fault diagnosis.

Suitable for machinery manufacturing, water treatment, petrochemical, energy equipment remote maintenance renovation and spare replacement.

Function

Realize secure remote access to local industrial control network via Belden Horizon cloud platform.

Dual Ethernet ports, isolate local control network and remote tunnel network.

Support EasyBridge secure remote tunnel, no extra client software required on remote PC.

Remote access enable/disable can be locally controlled by EtherNet/IP MSG instruction.

Built-in File Relay function, realize file transmission between segmented networks.

Support remote packet capture for network fault analysis.

SD card slot for configuration backup and quick module replacement.

Web page configuration and online diagnostic function.

Installation

Mount network bridge on DIN rail,connect 10~30VDC power supply.

Connect one RJ45 port to local PLC control network,another port for tunnel network.

Register Belden Horizon cloud account and bind device.

Set network parameters and remote access authority via web configuration page.

Check LED indicators after power-on.

Interface

2*10/100Mbps Ethernet RJ45,power terminal,SD card slot,LED indicators:PWR,LINK,ACT,STATUS.

Feature

Compact DIN rail aluminum housing,wide temperature range for harsh industrial environment.

Industrial secure tunnel,only establish communication to target LAN,does not support routing.

Local hardware + EtherNet/IP dual remote access switch,improve OT network security.

File relay function,support program backup and log transfer across network segments.

Shock and vibration resistance design,stable operation in factory cabinet.

Simplify remote commissioning and troubleshooting,reduce on-site travel cost.

Diagnostic

Check PWR and network LED;communication failure:verify network cable,cloud platform online status;data abnormal:check remote access enable status and firewall setting.

Product Brief

PLX35-NB2 is ProSoft PLX35 series industrial network bridge.

It provides secure cloud remote access for automation control equipment,used for PLC remote debugging,program download and fault diagnosis,widely used in industrial equipment remote maintenance transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
