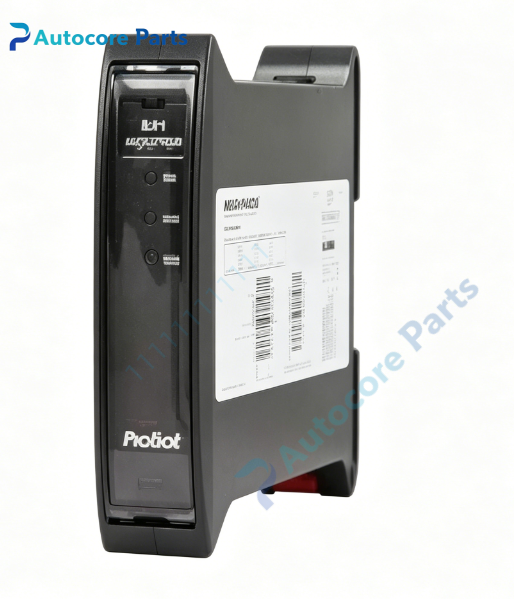

ProSoft PLX51-DF1-MSG DF1 Messaging Module

Technical Specifications

Model:PLX51-DF1-MSG

Brand:ProSoft

Product type:DF1 Serial to EtherNet/IP Standalone Messaging Gateway

Power supply:10~28VDC

EtherNet/IP:110/100Mbps RJ45,support Logix MSG instruction communication

DF1 serial port:RS232,DF1 Full Duplex / Half Duplex / Radio Modem

Baud rate:1200,2400,4800,9600,19200,38400,57600,115200

Check mode:BCC,CRC

Data bit:8,stop bit:1,parity:None / Even / Odd

Weight:0.38kg

Operating temperature:-25℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:136.7mm22.5mm*111.3mm

Certification:CE,UL,Class I Division2

System compatibility

PLX51-DF1-MSG belongs to ProSoft PLX51 series standalone messaging module.

Realize point-to-point message communication between Rockwell DF1 legacy devices and EtherNet/IP Logix controllers.

Compatible with PLC-5,SLC500,MicroLogix,ControlLogix,CompactLogix.

Suitable for phased migration of old factory automation systems,DF1 radio modem application,inter-PLC message data exchange and spare replacement.

Function

Specialized DF1 message transmission module for Logix MSG instruction communication.

Support DF1 full duplex,half duplex and radio modem three serial modes.

Bidirectional message exchange between DF1 serial devices and EtherNet/IP controllers.

Built-in DF1 packet capture analyzer for serial communication fault troubleshooting.

Web page configuration and real-time communication statistics view.

Support staged system upgrade of legacy DF1 equipment.

Configuration lock switch to prevent accidental parameter modification.

Installation

Mount gateway on DIN rail,connect 10~28VDC power supply.

Connect RS232 serial cable to DF1 PLC or DF1 radio modem,connect RJ45 port to EtherNet/IP network.

Set DF1 baud rate,parity and serial communication mode via web configuration page.

Configure MSG message parameters in Logix controller.

Check LED indicators after power-on.

Interface

110/100Mbps Ethernet RJ45,1RS232 terminal port,power terminal,LED indicators:PWR,ERR,COM,NET.

Feature

Thin DIN rail module,save cabinet installation space.

Focus on message communication,ideal for phased upgrade of old DF1 control system.

Support DF1 radio modem application for remote serial wireless communication.

Built-in serial data capture function,easy to debug DF1 communication.

Parameter lock function to avoid misoperation on site.

Shock and vibration resistant design,stable long-term operation in industrial cabinet.

Diagnostic

Check PWR and communication LED;communication failure:check serial wiring,baud rate and parity matching;data abnormal:verify Logix MSG instruction configuration and EtherNet/IP path.

Product Brief

PLX51-DF1-MSG is ProSoft PLX51 series DF1 serial to EtherNet/IP messaging gateway.

It is used for point-to-point message transmission between Rockwell old DF1 PLC and modern EtherNet/IP controllers,suitable for legacy automation system staged migration and DF1 radio modem application.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
