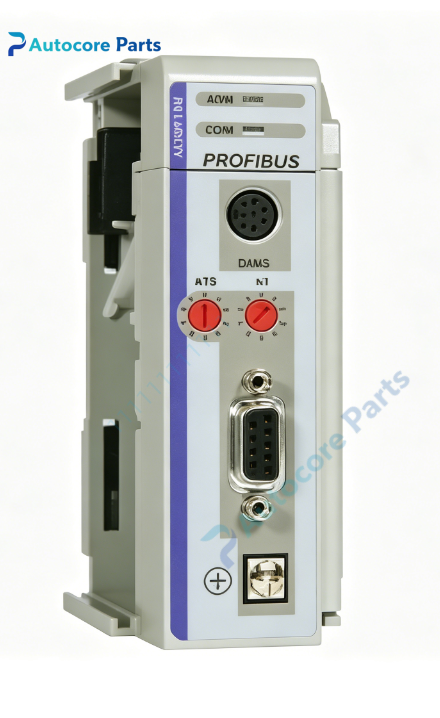

ProSoft PS69-DPS CompactLogix PROFIBUS DP DPV1 Slave Module

Technical Specifications

Model:PS69-DPS

Brand:ProSoft

Product type:1769 CompactLogix Chassis PROFIBUS DP DPV1 Slave Communication Module

Backplane power:260mA @5VDC

Communication:PROFIBUS DP RS485 interface,max 12MBaud;PS/2 RS232 diagnostic port

Cyclic data:244 bytes input,244 bytes output

Weight:0.28kg

Operating temperature:0℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:1769 single slot module,104mm35mm88mm

Certification:CE,UL,Class I Division2,PROFIBUS certified

System compatibility

PS69-DPS belongs to ProSoft PS69 series in-rack communication module.

It installs into Rockwell 1769 CompactLogix chassis,also compatible with MicroLogix1500 LRP processor,data exchange with controller via 1769 backplane.

It acts as PROFIBUS DP slave to connect PROFIBUS DP master PLC and controllers.

Suitable for factory automation,mixed brand PLC interconnection,legacy PROFIBUS system renovation and spare replacement.

Function

PROFIBUS DP DPV0/DPV1 slave module,supports cyclic real-time I/O data and acyclic DPV1 messaging.

Rotary switch on module for setting PROFIBUS slave station address.

Supports extended diagnosis,DPV1 alarm and acyclic read/write service.

Supplied with GSD file for configuration on PROFIBUS master side.

Treat as standard I/O module in RSLogix5000,data mapped via controller I/O image.

Comes with sample ladder logic for quick commissioning.

Bidirectional data exchange between CompactLogix controller and PROFIBUS DP master network.

Installation

Insert module into empty slot of 1769 CompactLogix chassis.

Wire PROFIBUS RS485 bus cable,install terminal resistor at bus endpoints.

Set slave address via rotary switches,connect RS232 diagnostic port to PC for monitoring.

Import GSD file into PROFIBUS master configuration software,add module in RSLogix5000,download project,check LED indicators after power-up.

Interface

1PROFIBUS RS485 terminal port,1PS/2 RS232 diagnostic port,1769 backplane connector,LED indicators:PWR,FLT,NET,COM.

Feature

1769 single slot compact rack-mounted design,hot-swap supported for qualified chassis.

PROFIBUS certified slave interface,supports wide baud rate selection from 9.6k to 12M baud.

Rotary switch for fast station address setting without software.

Shock and vibration resistant design,stable operation in industrial cabinet environment.

Diagnostic

Check module power and status LED;communication failure:verify PROFIBUS wiring,bus terminal resistor and baud rate;data abnormal:check GSD file and I/O mapping table.

Product Brief

PS69-DPS is ProSoft PS69 series in-chassis PROFIBUS DP DPV1 slave module for Rockwell CompactLogix 1769 rack.

It enables CompactLogix controller to act as PROFIBUS DP slave and exchange data with PROFIBUS DP master devices,widely used for mixed-brand industrial automation PROFIBUS network maintenance and transformation.
