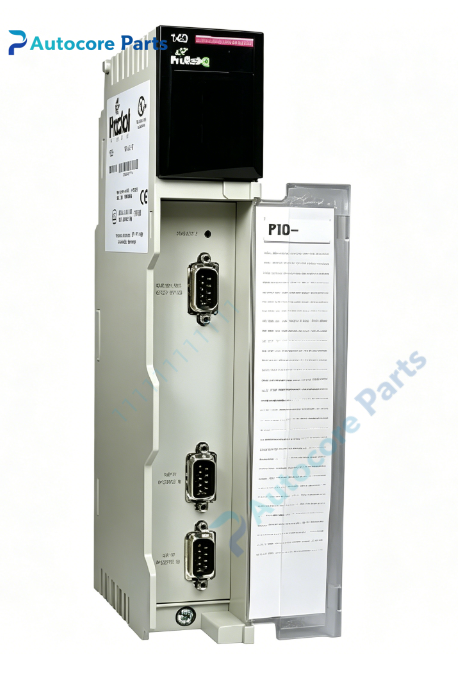

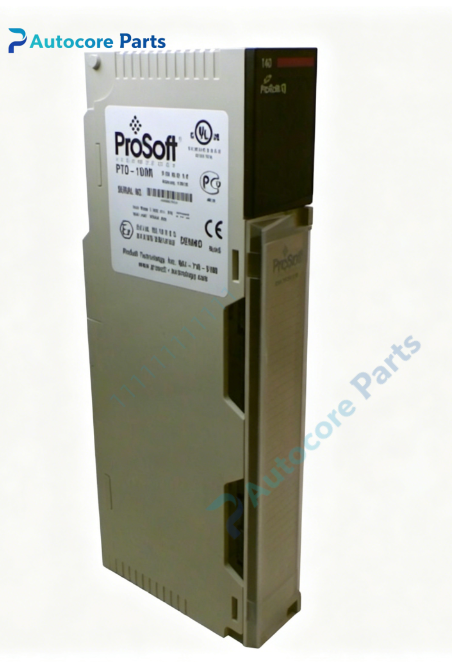

ProSoft PTQ-101M Quantum IEC60870-5-101 Master Communication Module

Technical Specifications

Model:PTQ-101M

Brand:ProSoft

Product type:Schneider Quantum Chassis IEC 60870-5-101 Master Communication Module

Backplane power:550mA @5VDC

Communication:Dual serial ports,RS232/RS485 selectable,IEC60870-5-101 master

Supports event time stamp,exception report

Weight:0.42kg

Operating temperature:0℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:Quantum single slot module,140mm42mm112mm

Certification:CE,UL

System compatibility

PTQ-101M belongs to ProSoft PTQ series in-rack communication module.

It is installed in Schneider Quantum PLC chassis,exchanges data with Quantum CPU via Quantum backplane.

It works as IEC60870-5-101 master to connect 101 slave RTU,substation protection and measuring equipment.

Suitable for power distribution,water treatment,utility telecontrol system renovation and spare replacement.

Function

IEC60870-5-101 master module,support balanced and unbalanced transmission modes.

Supports single point,double point,measured value,setpoint command,event with time stamp and exception report.

Dual serial ports can run independent 101 master channels.

Internal database maps 101 telecontrol data to Quantum PLC register area.

Configuration software for network parameter setup,point list definition and online diagnosis.

Bidirectional data exchange between Quantum PLC and IEC60870-5-101 slave field devices.

Installation

Insert module into empty slot of Schneider Quantum chassis.

Wire serial bus cable to RS232 or RS485 terminal,configure bus termination resistor.

Set serial parameters in ProSoft configuration tool,download project to module flash memory.

Configure data mapping with Quantum Concept software,check LED indicators after power-up.

Interface

2*serial ports(RS232/RS485 selectable),Quantum backplane connector,LED indicators:PWR,FLT,COM,NET.

Feature

Quantum single slot rack-mounted design,directly integrated into Quantum rack.

Dual independent serial channels for two separate 101 telecontrol networks.

Event time stamping and exception reporting function for power utility application.

Online point monitoring and diagnostic function for convenient commissioning.

Shock and vibration resistant design,stable operation in power cabinet environment.

Diagnostic

Check module power and status LED;communication failure:verify serial wiring,baud rate and bus terminal resistor;data abnormal:check 101 point address and register mapping table.

Product Brief

PTQ-101M is ProSoft PTQ series in-chassis telecontrol module for Schneider Quantum PLC.

It acts as IEC60870-5-101 master to communicate with substation RTU and field telecontrol devices,widely used for power and water utility automation system maintenance and transformation.
