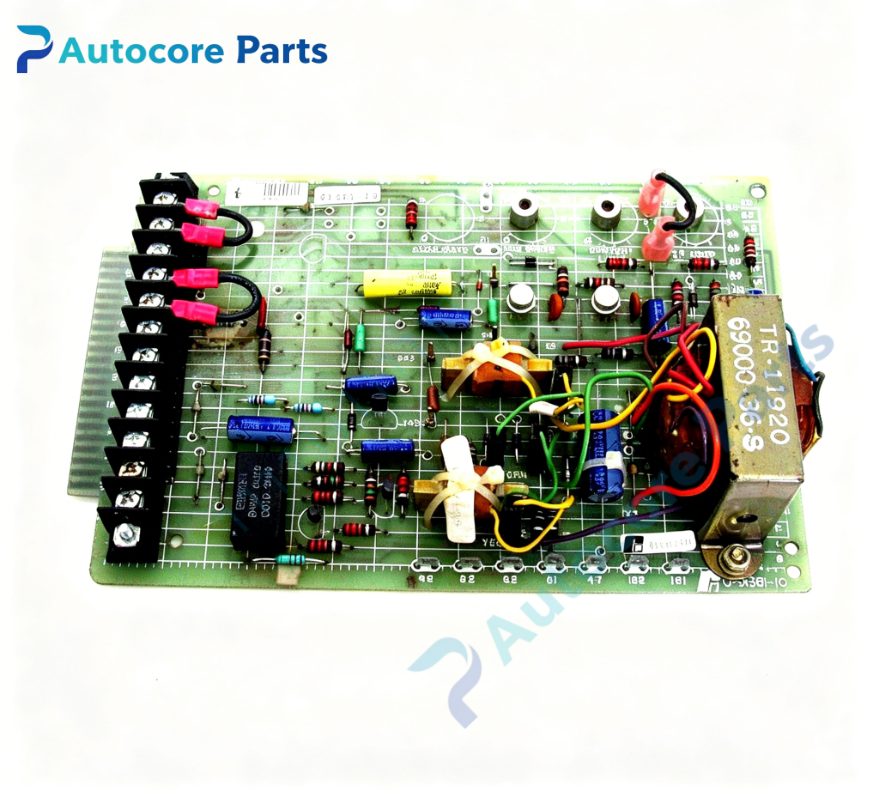

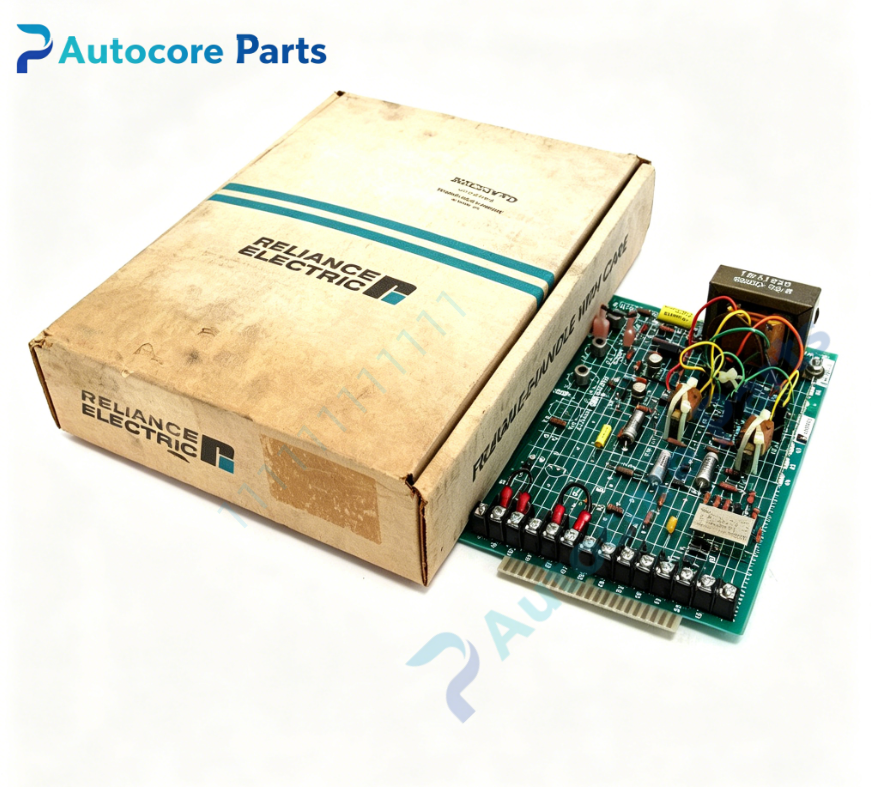

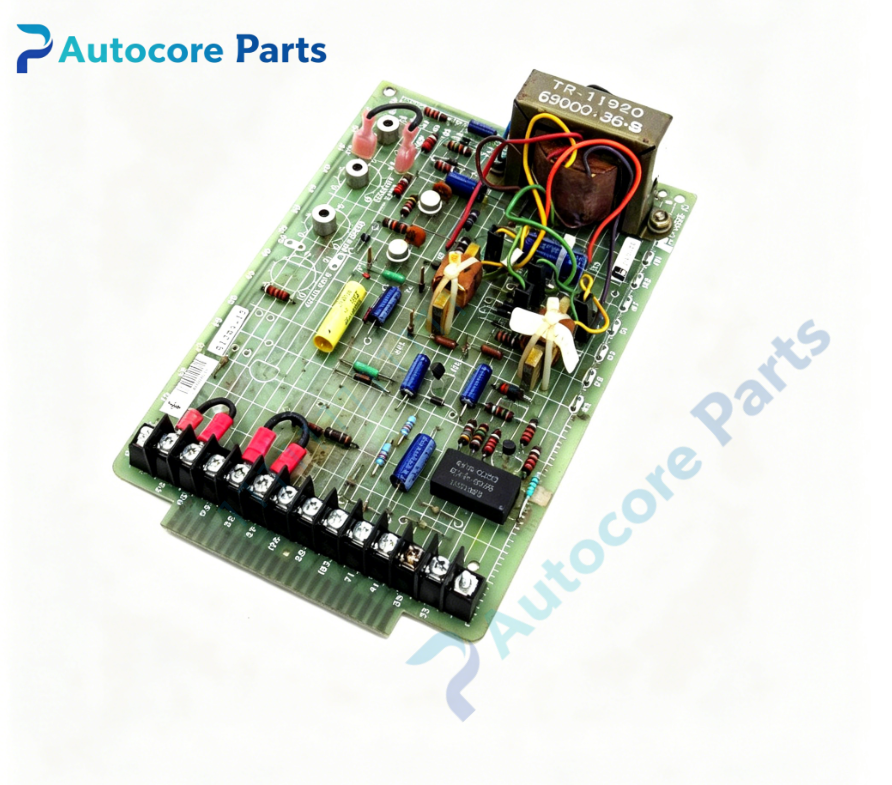

RELIANCE 0-51381-13 Drive Controller Board

Technical SpecificationsModel:0-51381-13 Brand:RELIANCE Product type:Drive Controller Board Weight:0.78kg Dimension:231mm161mm28mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51381-13 belongs to RELIANCE Minpak Plus series main drive controller board. Installed inside Minpak Plus DC variable speed drive cabinet,cooperates with pulse trigger board and single-phase SCR rectifier stack. It realizes full analog double closed-loop control of Minpak Plus DC drive system. Commonly used for old industrial DC drive equipment maintenance and spare replacement.

Function0-51381-13 is dedicated main analog control board for RELIANCE Minpak Plus DC drive system. Accept external speed reference signal and DC tachometer speed feedback. Complete speed PI regulator operation and current closed-loop control. Output firing angle command to pulse trigger circuit. Integrate overcurrent,overvoltage and loss-of-tacho fault detection logic. Support run/stop interlock and fault latch protection. Built-in acceleration and deceleration ramp function and adjustable current limit.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51381-13 board into designated chassis slot and lock retaining fasteners. Connect backplane connector and field analog & logic wiring. Separate low voltage signal wiring from high-current power bus. Power on system,tune speed loop gain and current limit potentiometer. Verify start,stop and variable load running performance.

InterfaceBackplane bus connector,speed reference input,tachometer feedback input,firing command output,fault logic output,adjustment potentiometer,status LED indicators.

FeatureRELIANCE 0-51381-13,plug-in analog main control board for Minpak Plus DC drive. Speed and current double closed-loop analog control circuit. Integrated ramp generator and multi-fault detection latch circuit. Onboard potentiometers for loop gain and current limit tuning. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Minpak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line DC drive renovation and maintenance.

DiagnosticMotor speed unstable:tacho signal interference or loop gain improper; Drive cannot start:enable interlock lockout or reference missing; Frequent overcurrent trip:current limit potentiometer misadjustment; No firing pulse command output:internal analog circuit damage; Intermittent drive shutdown:backplane connector poor contact.

Product BriefRELIANCE 0-51381-13 is Minpak Plus drive controller board. It completes analog double closed-loop speed & current regulation,firing angle calculation and multi fault protection for Reliance Minpak Plus DC drive,widely used as spare part for legacy DC drive equipment maintenance.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
