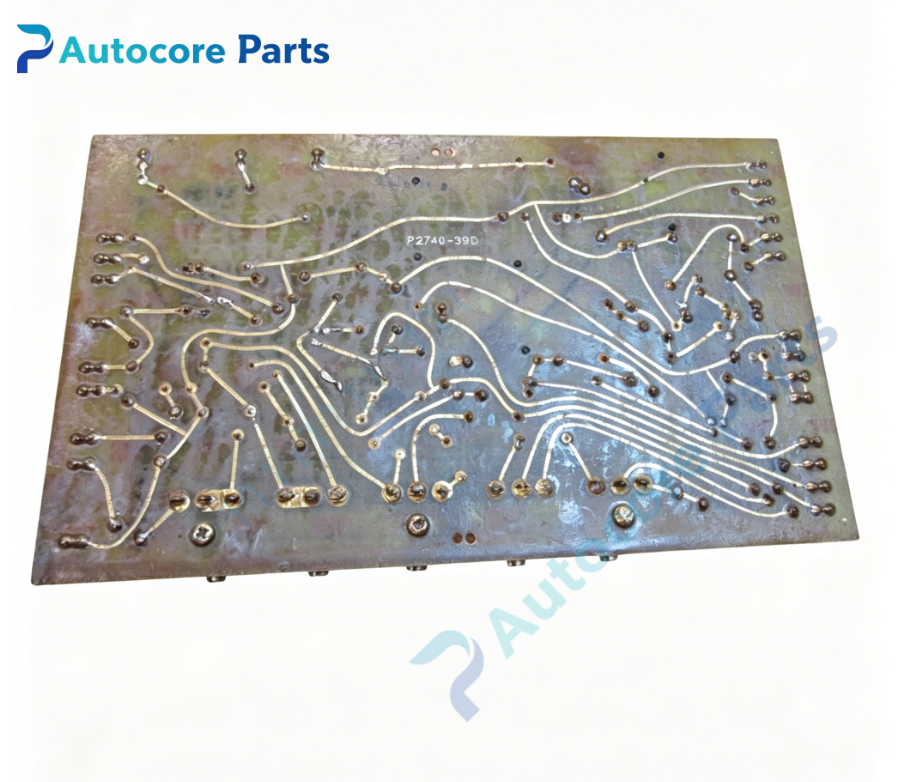

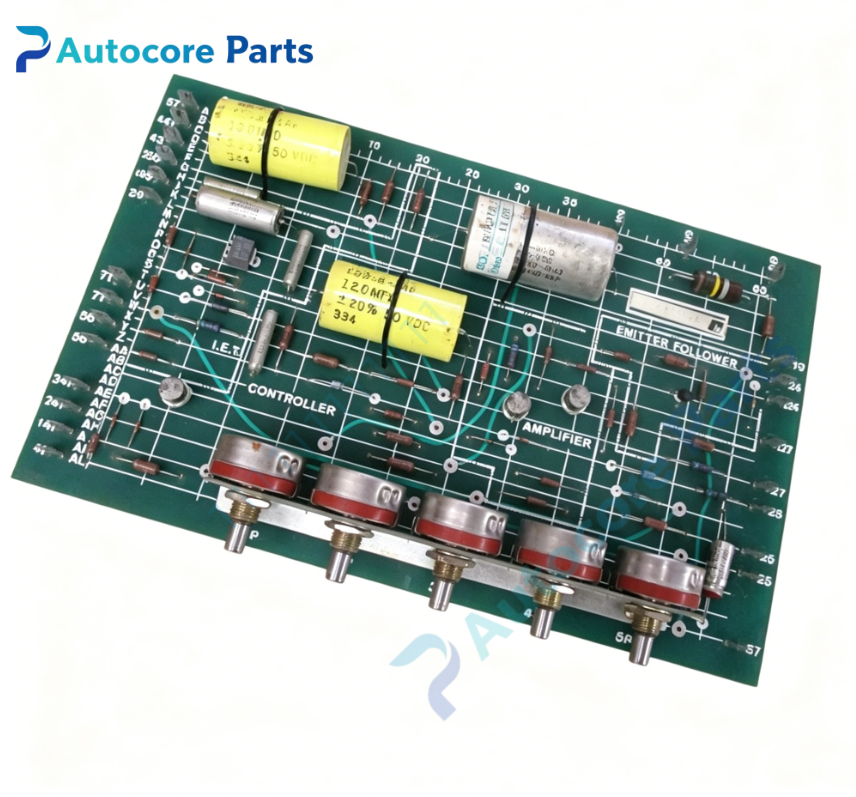

RELIANCE 0-51444 Power Supply Driver Board

Technical SpecificationsModel:0-51444 Brand:RELIANCE Product type:Power Supply Driver Board Weight:0.81kg Dimension:225mm150mm32mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51444 belongs to RELIANCE power supply driver board. Installed inside Reliance DC variable speed drive cabinet,cooperates with main control board and SCR rectifier stack. It supplies driving power and trigger drive signals for power thyristor assembly. Commonly used for maintenance and spare replacement of old industrial DC drive equipment.

Function0-51444 is dedicated power supply driver PCB for RELIANCE DC drive system. Receive low-level trigger command signal from main controller board. Amplify and convert signal into sufficient power drive pulse for SCR power devices. Integrate on-board transformers,inductors and power components to build local auxiliary power. Provide overcurrent and surge protection for power drive circuit. Monitor power drive status and feed fault signal back to main control card. Stabilize drive pulse amplitude under grid fluctuation.

InstallationPower off the whole drive cabinet and cut main power supply. Mount 0-51444 board to designated bracket and lock fasteners. Connect control signal input and power drive output wiring. Separate high-power drive wiring from low-voltage analog signal cable. Power on system,check pulse amplitude and waveform. Verify SCR turn-on consistency under no-load and loaded test.

InterfaceTerminal block connector,control trigger signal input,power drive pulse output,auxiliary power terminal,shield grounding terminal,status LED indicators.

FeatureRELIANCE 0-51444,power supply driver board with integrated transformers and inductors. Onboard power conversion and pulse amplification circuit for SCR driving. Built-in surge absorption and overcurrent protection components. Heavy-duty power components designed for industrial harsh environment. Industrial PCB design for long continuous running. Discontinued obsolete board,supply only for old Reliance DC drive system spare replacement. Suitable for metallurgy,paper-making production line DC drive renovation and maintenance.

DiagnosticSCR cannot be triggered:drive pulse missing or insufficient amplitude; Drive board overheat:overload or internal component short circuit; Frequent power fault alarm:surge damage to power components; Unbalanced three-phase firing:inconsistent pulse output of each channel; Intermittent drive failure:loose transformer winding or aging electrolytic capacitor.

Product BriefRELIANCE 0-51444 is power supply driver board. It amplifies control trigger signals and provides power drive pulses for SCR rectifier stack of Reliance legacy DC drive,widely used as spare part for legacy DC drive equipment maintenance.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
