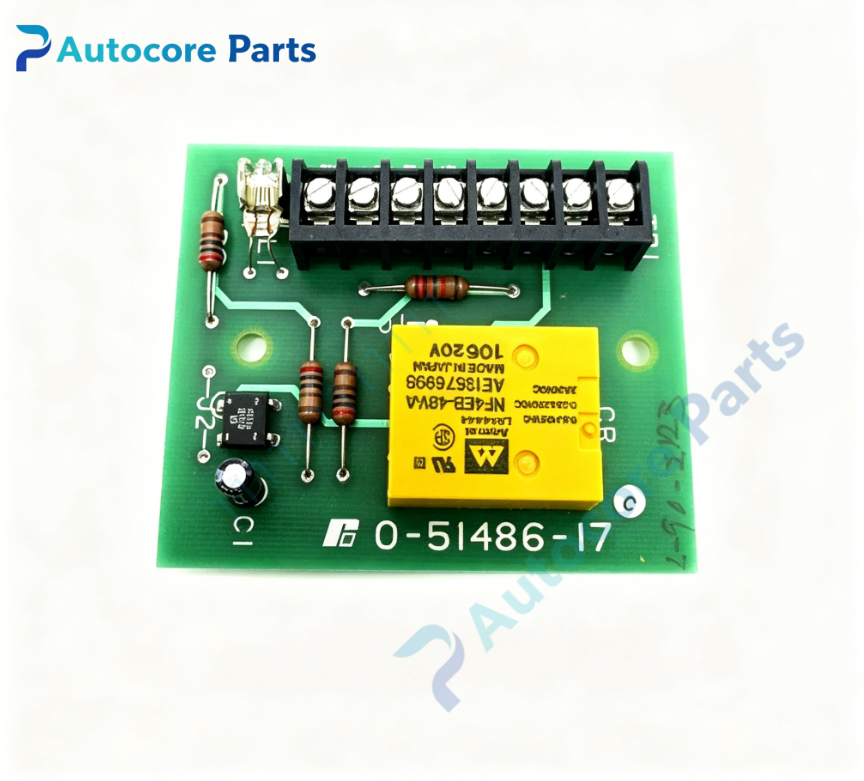

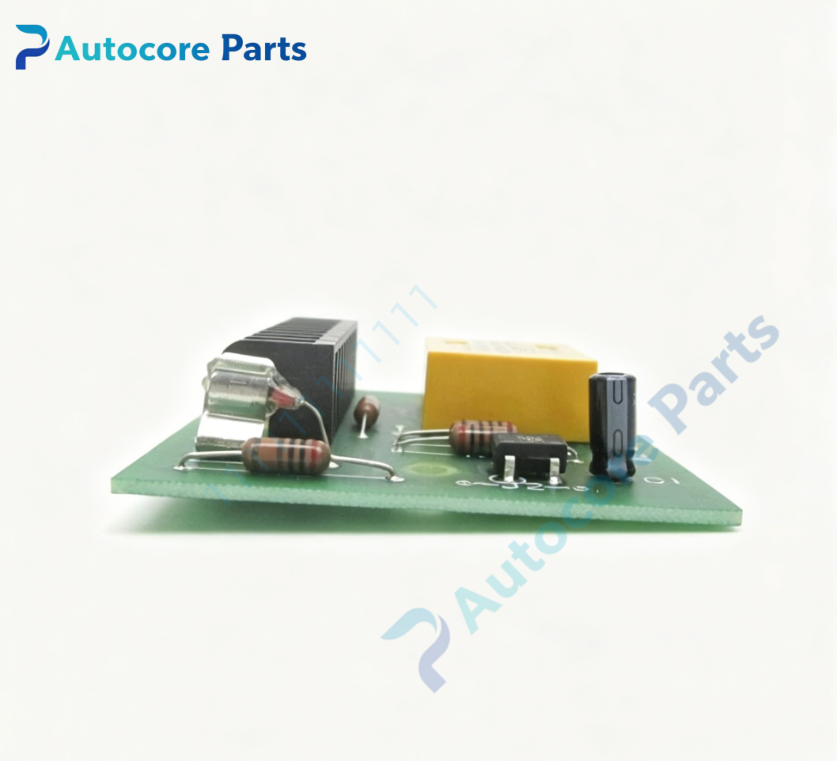

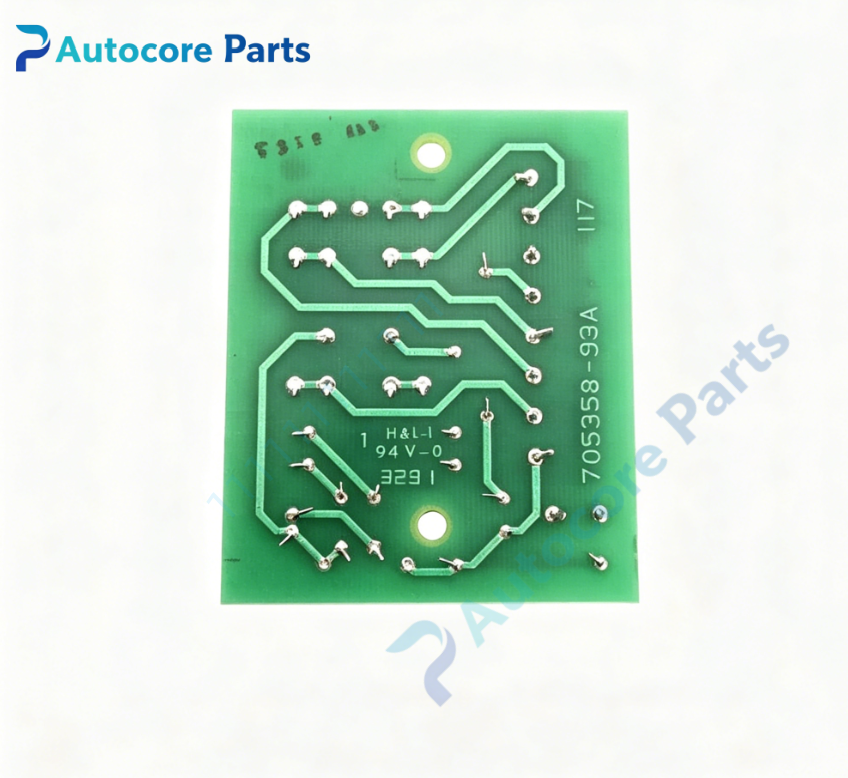

RELIANCE 0-51486-17 Input Relay Board

Technical SpecificationsModel:0-51486-17 Brand:RELIANCE Product type:Input Relay Board Weight:0.41kg Dimension:185mm110mm25mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51486-17 belongs to RELIANCE input relay board. Installed inside Reliance legacy DC variable speed drive cabinet,cooperates with main control board and external control circuit. It receives 115VAC external contact signals and provides relay isolation for drive interlock,run/stop and fault logic. Commonly used for maintenance and spare replacement of old industrial DC drive equipment.

Function0-51486-17 is dedicated 115VAC input relay PCB for RELIANCE DC drive system. Accept external 115VAC discrete control signals. Use on-board relays to complete electrical isolation between field circuit and internal drive logic. Convert AC input signals to dry contact logic signals for main controller. Process run enable,emergency stop,external fault interlock signals. Suppress inductive surge generated by relay coil switching. Translate external contact status to internal logic level for drive protection.

InstallationPower off the whole drive cabinet and cut main power supply. Mount 0-51486-17 board to designated bracket and lock fasteners. Connect 115VAC field input wiring and logic output terminals. Separate AC control wiring from low voltage analog signal cable. Power on system,verify relay pull-in and contact switching status. Test interlock response of emergency stop and external fault signal.

InterfaceTerminal block connector,115VAC signal input,dry contact logic output,shield grounding terminal,relay status LED indicators.

FeatureRELIANCE 0-51486-17 relay input board with 115VAC coil relays. Galvanic isolation between external AC control circuit and drive internal logic. Multiple independent relay channels for discrete interlock signals. Onboard RC snubber circuit for surge suppression. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance DC drive system spare replacement. Suitable for metallurgy,paper-making production line DC drive renovation and maintenance.

DiagnosticExternal command cannot trigger drive:relay coil burnout or contact oxidation; False interlock trip:relay contact leakage or surge interference; Relay no pull-in:missing 115VAC supply; Logic signal disorder:damaged snubber components; Intermittent signal loss:loose terminal connection.

Product BriefRELIANCE 0-51486-17 is input relay board. It receives 115VAC external discrete signals,provides relay isolation and interlock logic conversion for Reliance legacy DC drive,widely used as spare part for legacy DC drive equipment maintenance.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
