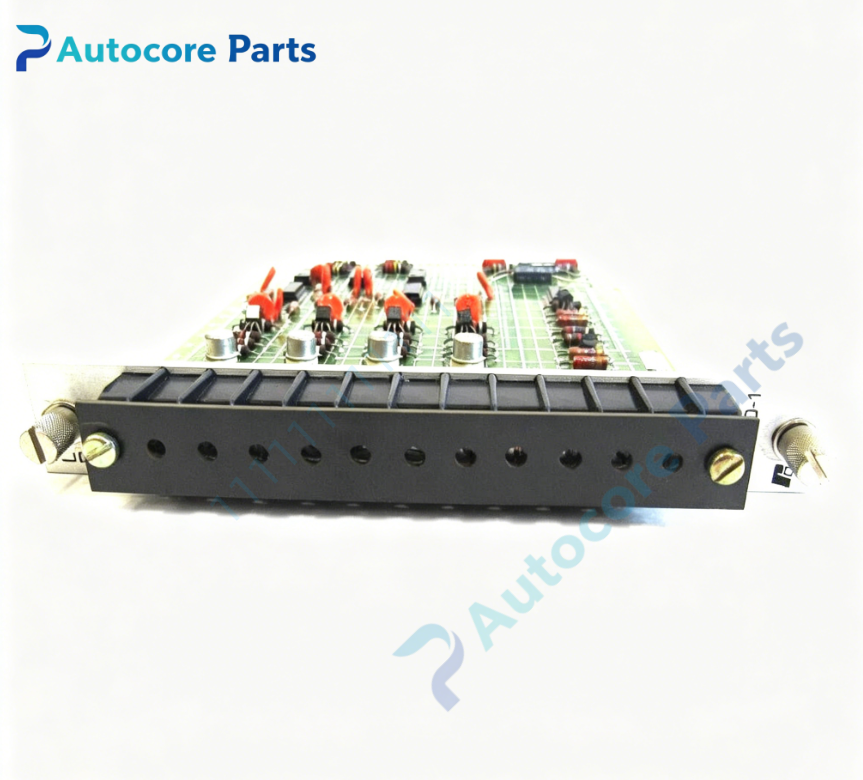

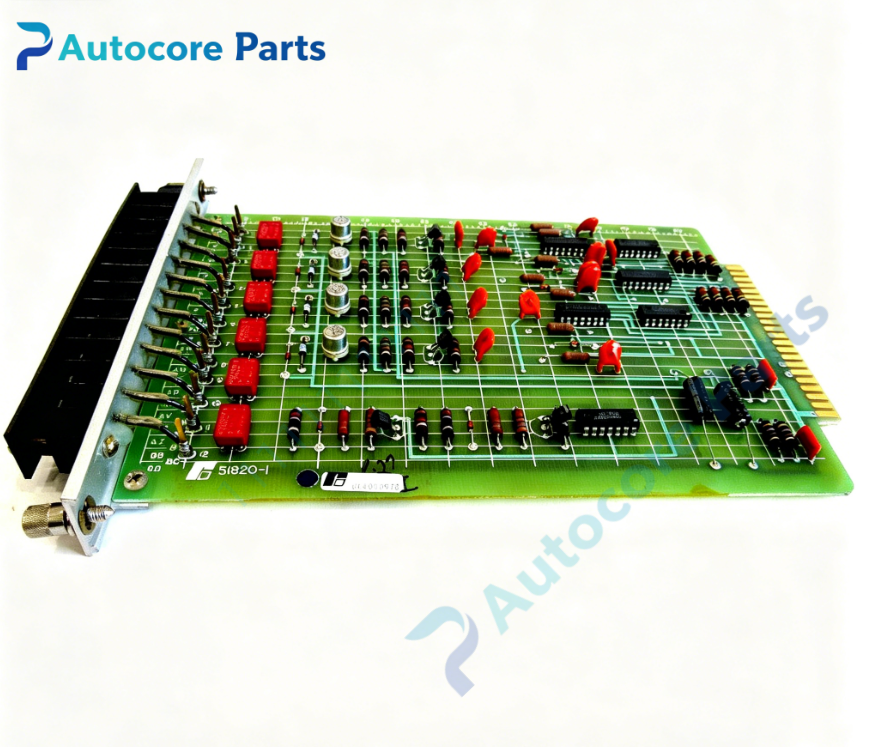

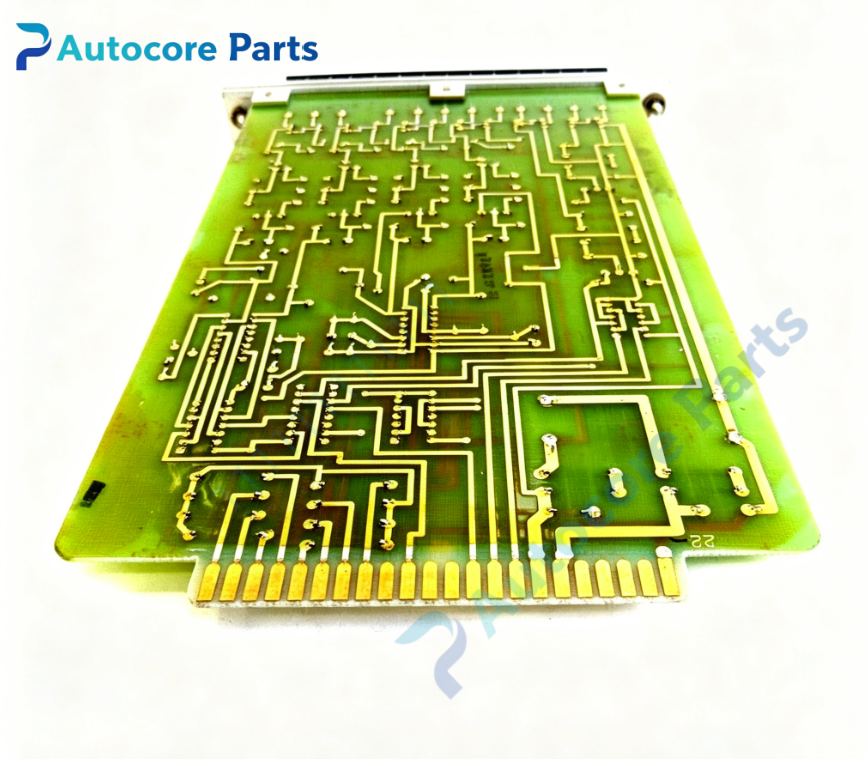

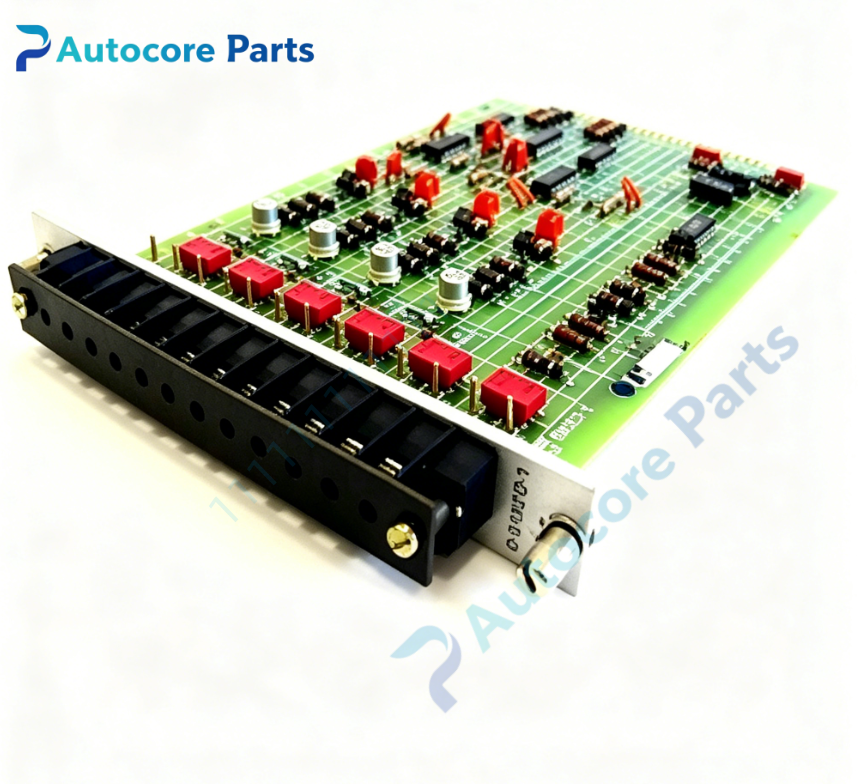

RELIANCE 0-51820-1 Pulse Driver Board

Technical SpecificationsModel:0-51820-1 Brand:RELIANCE Product type:Pulse Driver Board Weight:1.10kg Dimension:210mm145mm32mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51820-1 is RELIANCE MaxPak Plus series rack plug-in pulse driver board. Installed inside Reliance MaxPak Plus spindle DC drive cabinet,cooperates with main regulator board and SCR thyristor power stack. It receives low-level firing command signals and amplifies into high-energy gate trigger pulses for silicon controlled rectifiers. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-51820-1 is dedicated pulse driver transmitter PCB for RELIANCE MaxPak Plus DC drive system. Accept low amplitude firing timing signals from regulator control boards. Use onboard pulse transformers to amplify and isolate gate trigger pulses for SCR stack. Distribute synchronized firing pulses to each thyristor in the rectifier bridge. Suppress spike noise generated during SCR turn-on. Monitor pulse output status and feed fault signal back to main control circuit. Ensure phase angle synchronization to stabilize armature voltage regulation. Provide surge protection for pulse transformer windings.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51820-1 pulse driver board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for timing signal input. Separate high-energy pulse wiring from low voltage analog signal cable. Power on system,check phase synchronization of SCR firing pulses. Verify drive armature voltage regulation under no-load and loaded test.

InterfaceBackplane edge connector,trigger timing signal input,SCR gate pulse output,auxiliary power terminal,shield grounding terminal,status LED indicators.

FeatureRELIANCE 0-51820-1 rack mount pulse trigger driver board. Multiple onboard miniature pulse transformers for galvanic isolation and pulse power amplification. Discrete transistor pulse generation and amplification circuit. Front panel terminal blocks for SCR gate wiring. Gold plated edge connector for reliable rack contact. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticDrive cannot build up armature voltage:missing SCR trigger pulses or transformer winding burnout; Unbalanced three-phase output:single channel pulse circuit failure; Pulse jitter and drive oscillation:timing signal interference; Overheat alarm:pulse transformer overload; Intermittent firing loss:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-51820-1 is pulse driver board. It receives low-level firing timing signals,amplifies and generates isolated gate trigger pulses for SCR power stack of Reliance MaxPak Plus legacy spindle DC drive,widely used as spare part for legacy DC drive equipment maintenance.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
