RELIANCE 0-51864-2 CGSA Current Gate Summing Board

Technical SpecificationsModel:0-51864-2 Brand:RELIANCE Product type:CGSA Current Gate Summing Board Weight:0.64kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51864-2 is RELIANCE CGSA rack plug-in current gate summing board. It is designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with USAB summing amplifier board and CLDL current limit detection board. It completes current gate signal summing and generates SCR firing trigger signal for spindle drive power unit. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

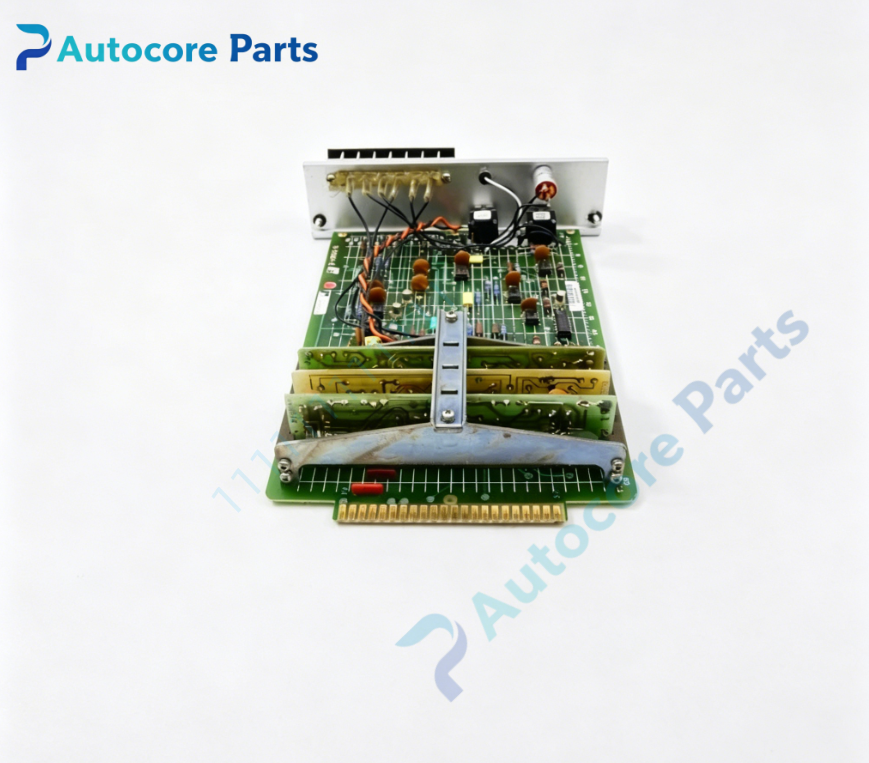

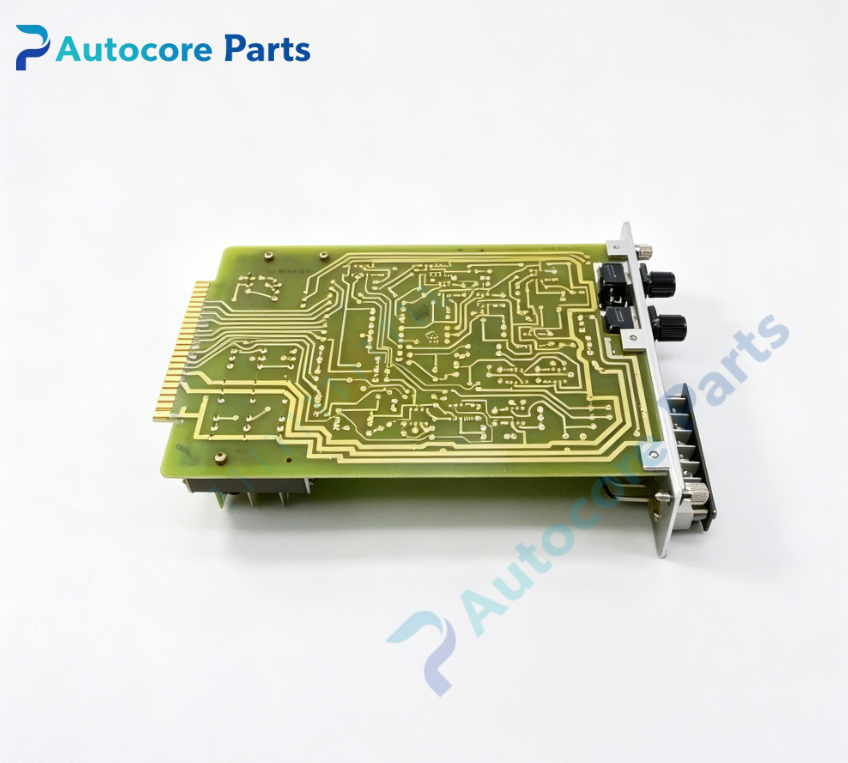

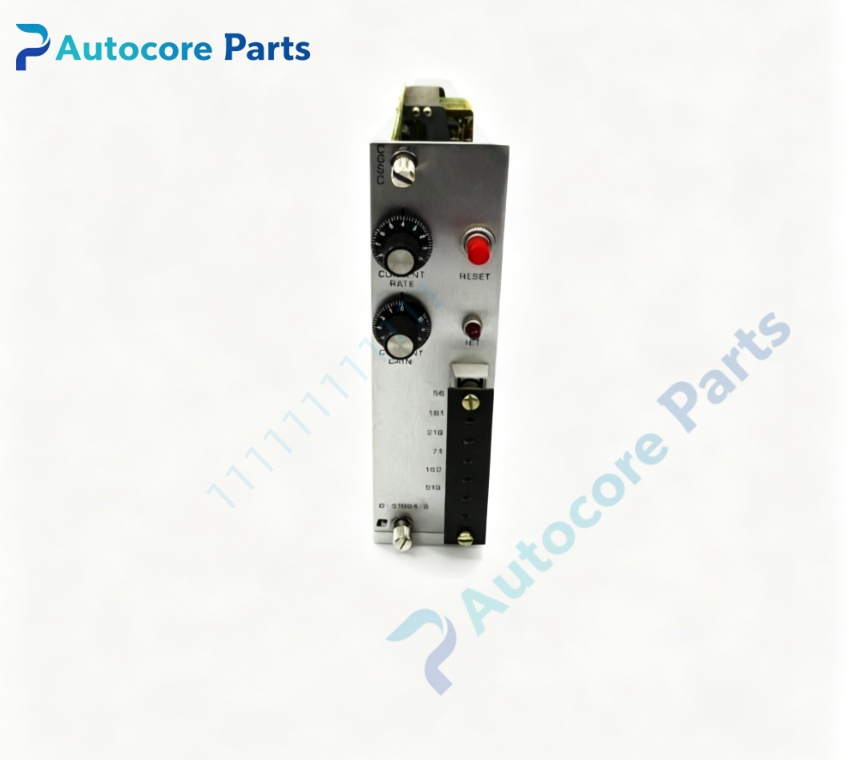

Function0-51864-2 is dedicated CGSA current gate summing PCB for RELIANCE MaxPak Plus DC drive system. Receive analog error signal from summing amplifier and current limit feedback signal. Sum signals and generate phase gate trigger pulses to control SCR conduction angle. Front panel two rotary potentiometers for gate gain and bias adjustment. Equipped with manual reset push button and red IED fault LED indicator. Onboard auxiliary sub-boards including relay and comparator circuits for fault judgment and interlock processing. Screw terminal block on faceplate for multi-point signal wiring.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51864-2 CGSA board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal signal exchange. Separate low-level control signal wiring from high-power SCR pulse cables. Power on system,calibrate gate gain and bias via front rotary dials. Test reset function and verify IED fault indication under abnormal current state.

InterfaceBackplane edge connector,analog error signal input,gate trigger pulse output,auxiliary power terminal,shield grounding terminal,red IED status LED,reset push button,front screw terminal bank.

FeatureRELIANCE 0-51864-2 rack mount CGSA current gate summing board. Discrete analog summing and pulse generation circuit for SCR gate control. Dual front panel rotary dials for gain and bias calibration,manual reset button and fault LED. Built-in auxiliary comparator and relay sub-assemblies for fault logic processing. Gold plated edge connector for reliable rack signal transmission. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticDrive speed jitter:gate signal drift or potentiometer aging; No firing pulse output:gate circuit damage; IED LED lit:overcurrent or internal logic fault; Reset button ineffective:relay sub-board failure; Intermittent pulse loss:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-51864-2 is CGSA current gate summing board. It receives closed-loop error and current feedback signals,calculates and outputs SCR gate trigger pulses for Reliance MaxPak Plus legacy spindle DC drive power control,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
