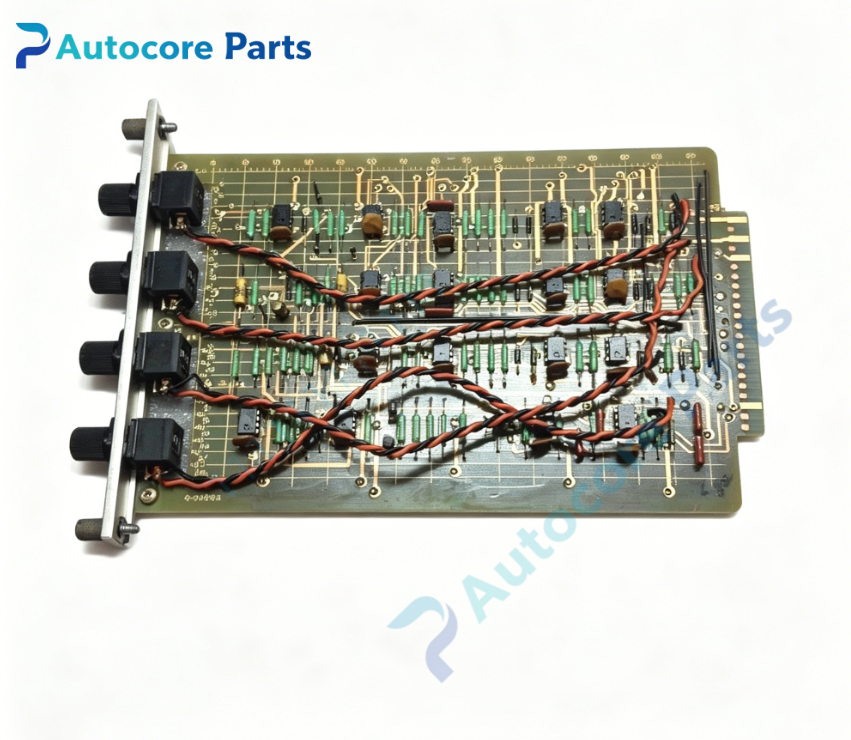

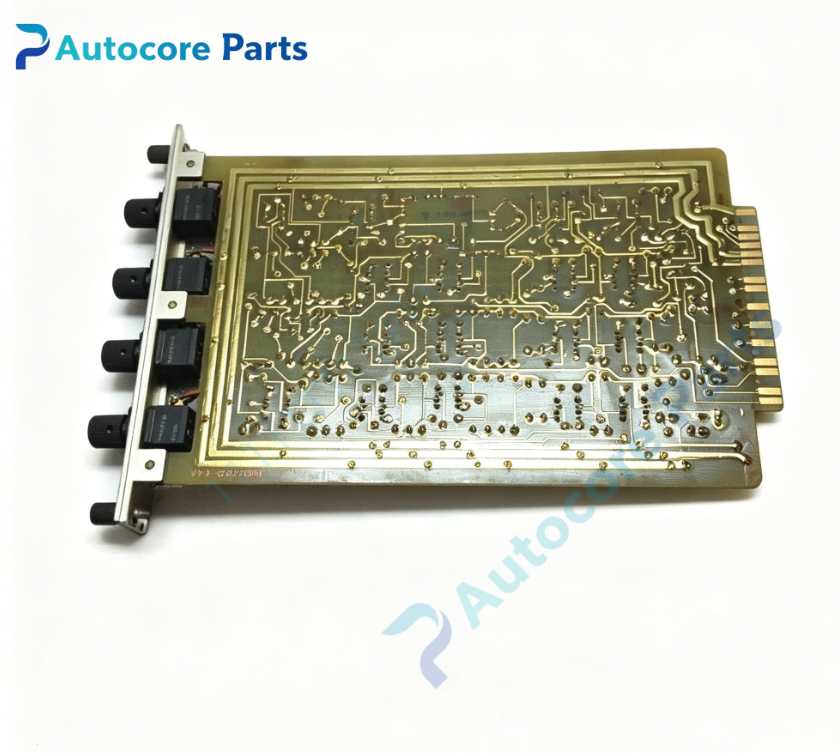

RELIANCE 0-51884 CLB Current Limit Board

Technical SpecificationsModel:0-51884 Brand:RELIANCE Product type:CLB Current Limit Board Weight:0.54kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51884 is RELIANCE CLB rack plug-in current limit board. It is designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with USAB summing amplifier board and CGSA gate summing board. It samples armature current signal,provides adjustable current limiting function and overcurrent protection for armature loop. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-51884 is dedicated CLB current limit PCB for RELIANCE MaxPak Plus DC drive system. Receive armature current feedback signal from power unit. Compare sampled current value with preset threshold and output limiting signal to summing amplifier to suppress current rise. Front panel multi-turn high-precision potentiometer for maximum armature current threshold calibration. Built-in fast overcurrent detection circuit for fault interlock trigger. Dual LED indicators display current limiting active status and overcurrent fault alarm. Signal filter circuit suppresses current spike noise to avoid false current limiting action.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51884 CLB board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal signal exchange. Separate high current sampling wiring from low-level analog signal cables. Power on system,calibrate current limit threshold via front potentiometer. Verify current limiting response under overload test condition.

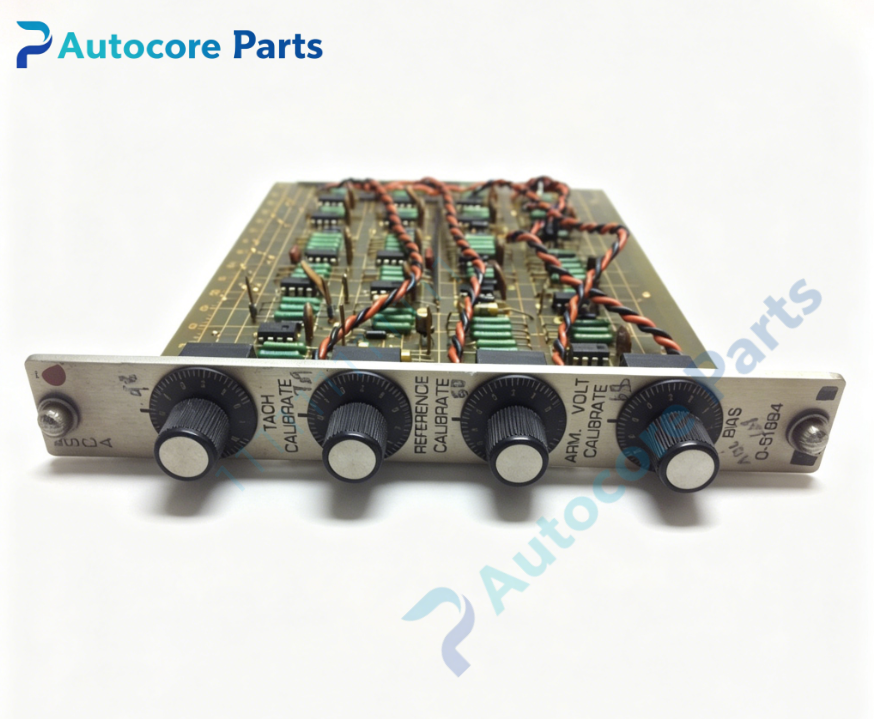

InterfaceBackplane edge connector,armature current feedback input,current limit control output,auxiliary power terminal,shield grounding terminal,dual status LED indicators,front multi-turn calibration potentiometer.

FeatureRELIANCE 0-51884 rack mount CLB current limit board. Discrete analog comparator circuit for current threshold detection and current limiting control. Front panel multi-turn adjustable potentiometer for limit threshold setup. Built-in spike filtering and rapid overcurrent protection. Gold plated edge connector for reliable rack signal transmission. Dual LED visual indication for current limiting and fault state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticDrive output torque insufficient:current limit threshold set too low or potentiometer drift; Unexpected current limiting:noise interference or sampling circuit aging; Fault LED lit:overcurrent protection triggered; No limiting control output:comparator circuit damage; Intermittent torque restriction:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-51884 is CLB current limit board. It samples armature current signal and executes adjustable current limiting and overcurrent protection for Reliance MaxPak Plus legacy spindle DC drive armature loop,to protect SCR power unit and motor from overload damage,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
