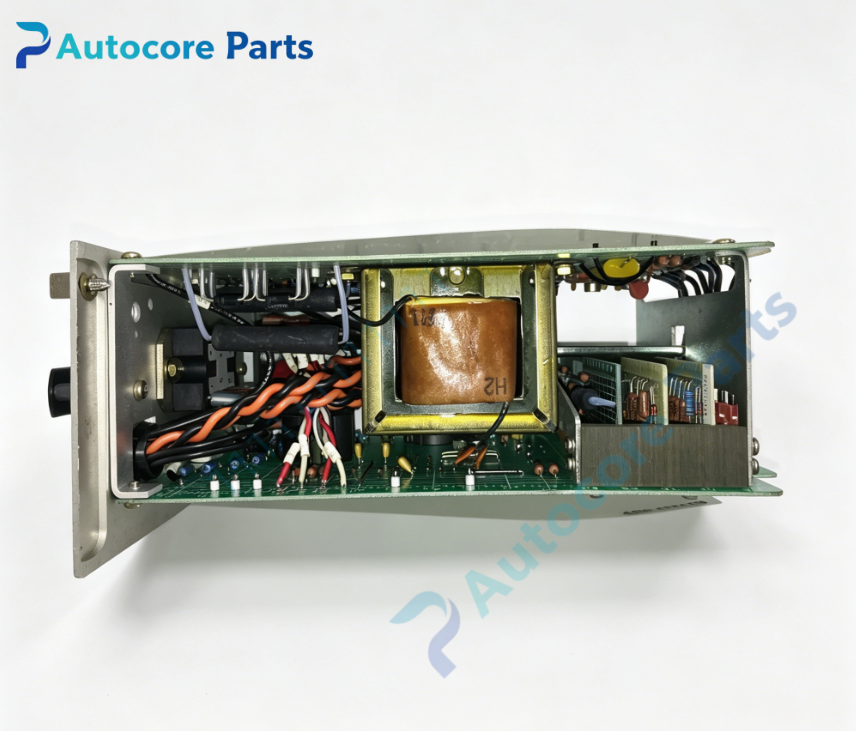

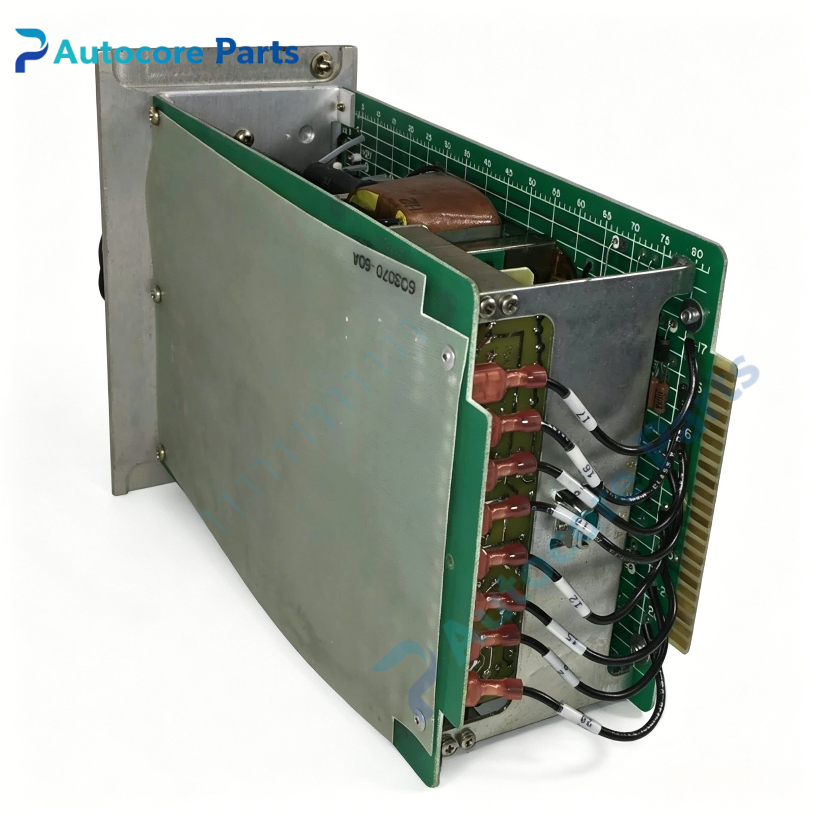

RELIANCE 0-51893-2 FCCC Field Control Circuit Board

Technical SpecificationsModel:0-51893-2 Brand:RELIANCE Product type:FCCC Field Control Circuit Board Weight:0.58kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51893-2 is RELIANCE upgraded FCCC rack plug-in field control circuit board. It is revised version of 0-51893 base model,designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with USAB summing amplifier board and CGSA gate summing board. It performs closed-loop regulation of motor field excitation current and refined field weakening control for wide-range spindle speed operation. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-51893-2 is dedicated FCCC field control circuit PCB for RELIANCE MaxPak Plus DC drive system. Receive speed reference and field current feedback signals from drive control rack. Stabilize DC motor excitation current to maintain constant magnetic flux within base speed. Improved field weakening transition curve reduces torque ripple when switching from constant torque zone to constant power zone. Front panel multi-turn high-precision potentiometers for field current limit,field weakening threshold and dynamic response calibration. Generate field SCR firing pulses to control excitation power output. Dual LED indicators display normal running state and field fault alarm. Enhanced loss-of-excitation detection circuit with faster interlock response to protect armature circuit in case of excitation failure.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51893-2 FCCC board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal signal exchange. Separate low-level analog control wiring from high energy field pulse cables. Power on system,calibrate field parameters via front potentiometers. Verify field current stability and seamless high-speed field weakening transition.

InterfaceBackplane edge connector,speed reference input,field current feedback input,field SCR trigger pulse output,auxiliary power terminal,shield grounding terminal,dual status LED indicators,front multi-turn calibration potentiometer bank.

FeatureRELIANCE 0-51893-2 rack mount FCCC field control circuit board. Discrete analog closed-loop circuit for high-precision excitation current regulation. Front panel multi-turn adjustable potentiometers for multi-parameter tuning. Upgraded loss-of-field protection and anti-noise filter compared with 0-51893 base version. Gold plated edge connector for reliable rack signal transmission. Dual LED visual indication for running and fault state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticMotor high-speed torque ripple:field weakening potentiometer drift or component aging; Unstable excitation current:feedback sampling circuit damage; Fault LED lit:field overcurrent or loss of excitation; No field pulse output:SCR trigger circuit breakdown; Intermittent speed fluctuation:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-51893-2 is FCCC field control circuit board. It implements closed-loop field current regulation and optimized field weakening control for Reliance MaxPak Plus legacy spindle DC drive,achieving stable constant torque and constant power wide speed regulation,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
