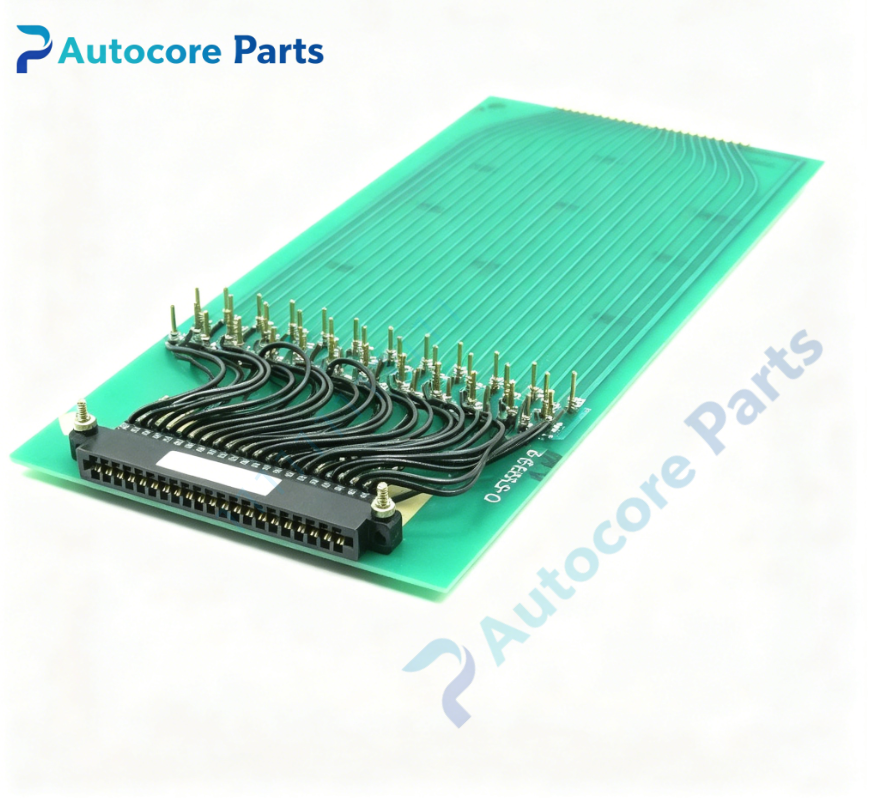

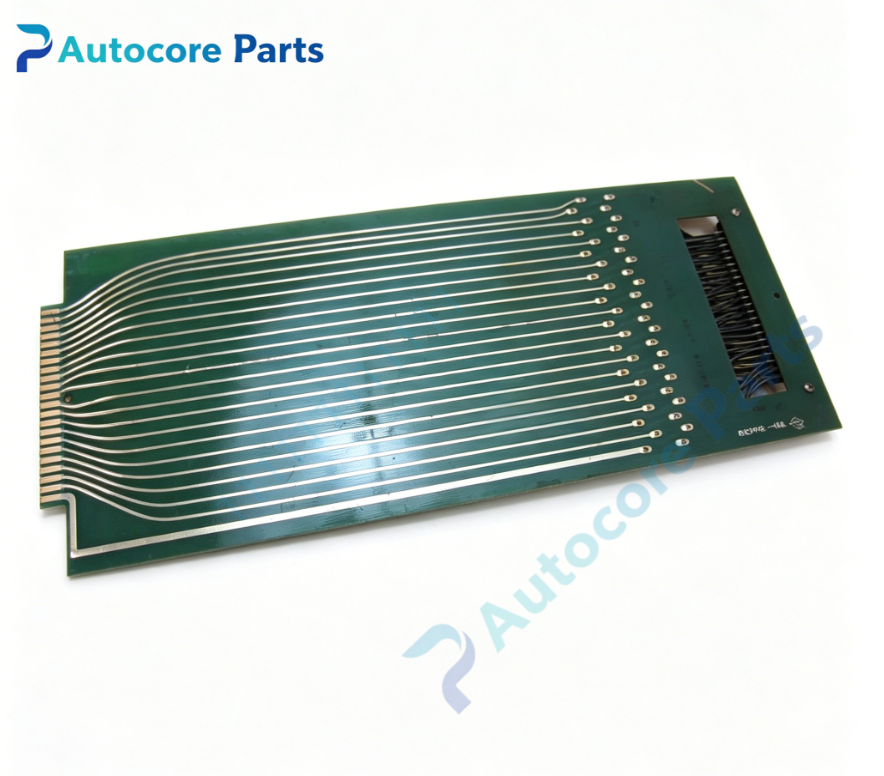

RELIANCE 0-51893-7 FCCC Field Control Circuit Board

Technical SpecificationsModel:0-51893-7 Brand:RELIANCE Product type:FCCC Field Control Circuit Board Weight:0.60kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-51893-7 is RELIANCE FCCC rack plug-in field control circuit board. It is upgraded revised variant of 0-51893,0-51893-2,0-51893-3 and 0-51893-4,designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with USAB summing amplifier board and CGSA gate summing board. It performs closed-loop field excitation current regulation and field weakening control for heavy duty spindle DC motor. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-51893-7 is dedicated FCCC field control circuit PCB for RELIANCE MaxPak Plus DC drive system. Receive speed reference signal and field current feedback signal from drive control rack. Regulate excitation current to maintain stable magnetic flux within base speed range. Optimized field weakening curve to minimize torque ripple during transition between constant torque and constant power region. Front panel multi-turn high-precision potentiometers for field current limit,field weakening threshold and dynamic response tuning. Generate SCR firing pulses to control field excitation power output. Dual LED indicators for normal running and field fault alarm. Enhanced loss-of-excitation fast detection and interlock protection,preventing armature overvoltage damage once excitation failure occurs. Improved EMC filtering to suppress cabinet high frequency noise interference under harsh industrial environments.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-51893-7 FCCC board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal signal exchange. Separate low-level analog control wiring from high energy field pulse cables. Power on system,calibrate field parameters via front potentiometers. Verify field current stability and smooth field weakening switching under dynamic load changes.

InterfaceBackplane edge connector,speed reference input,field current feedback input,field SCR trigger pulse output,auxiliary power terminal,shield grounding terminal,dual status LED indicators,front multi-turn calibration potentiometer bank.

FeatureRELIANCE 0-51893-7 rack mount FCCC field control circuit board. Discrete analog closed-loop circuit for high-precision excitation current regulation. Front panel multi-turn adjustable potentiometers for multi-parameter setup. Optimized component screening and reinforced noise suppression compared with 0-51893-4 version. Gold plated edge connector for reliable rack signal transmission. Dual LED visual indication for running and fault state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticMotor high-speed torque oscillation:field weakening parameter drift or component aging; Fluctuating excitation current:feedback sampling circuit damage; Fault LED lit:field overcurrent or loss of excitation; No field pulse output:SCR trigger circuit breakdown; Intermittent speed variation:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-51893-7 is FCCC field control circuit board. It completes closed-loop field current regulation and optimized field weakening control for Reliance MaxPak Plus legacy spindle DC drive,supports stable wide speed regulation of constant torque and constant power,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
