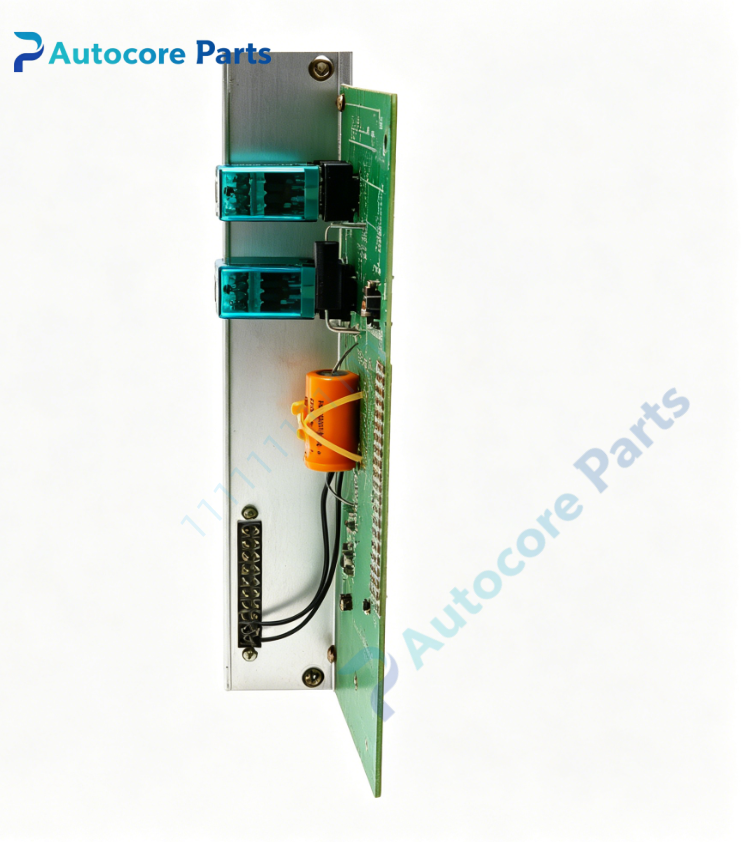

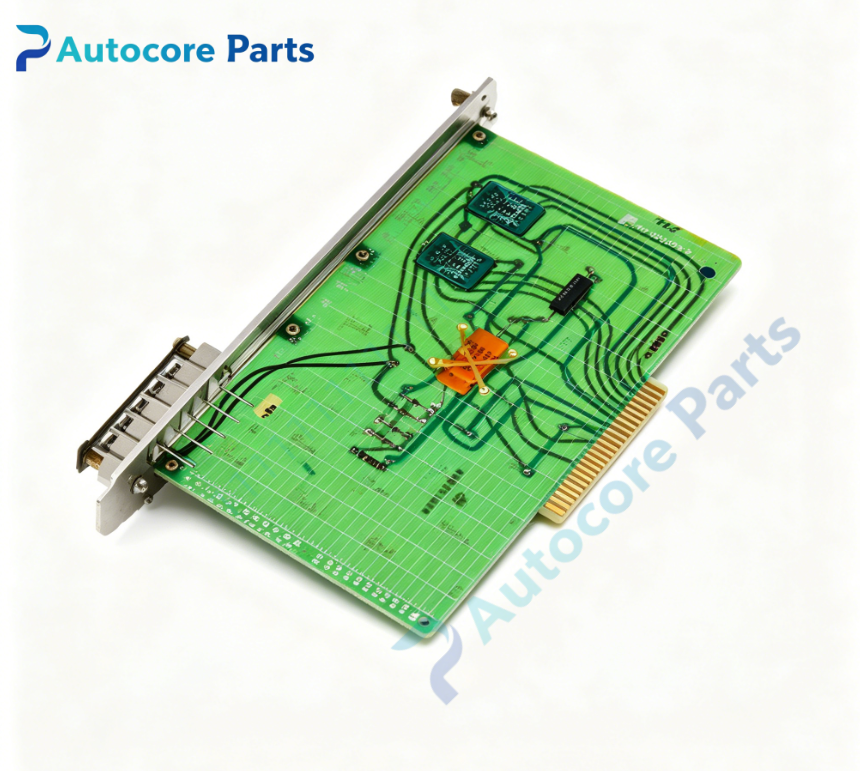

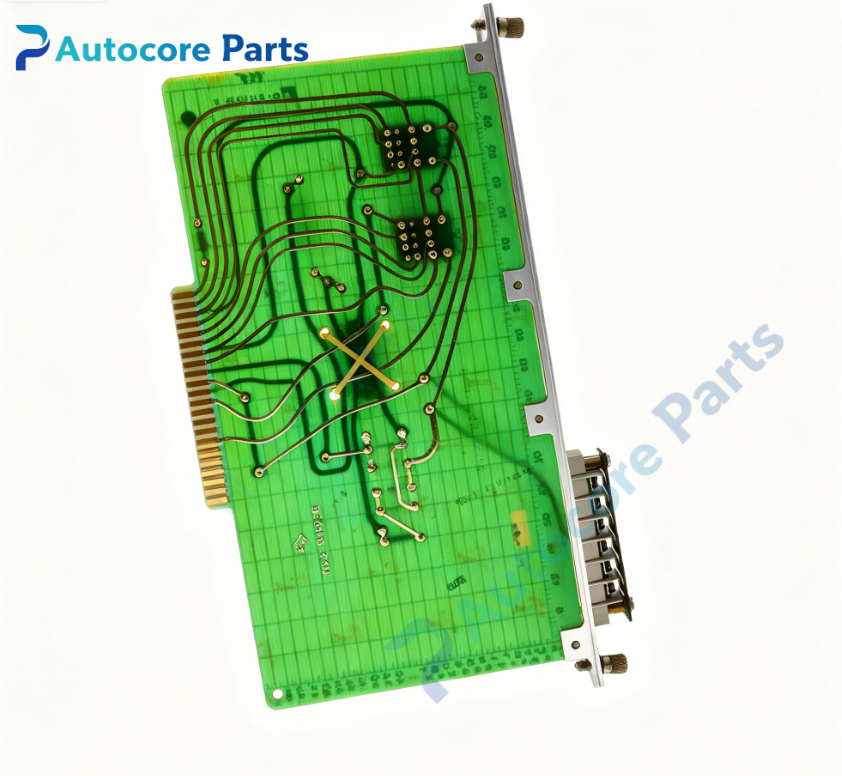

RELIANCE 0-52002-1 AOB Analog Output Board

Technical SpecificationsModel:0-52002-1 Brand:RELIANCE Product type:AOB Analog Output Board Weight:0.46kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-52002-1 is RELIANCE AOB rack plug-in analog output board. It is designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with ARM armature regulator board and IOB digital I/O board. It converts internal drive operating data into standard analog signals for external monitoring instruments or upper controller. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-52002-1 is dedicated AOB analog output PCB for RELIANCE MaxPak Plus DC drive system. Receive internal speed,current and torque signals from main regulator board. Convert internal control variables into standard analog output signals. Front panel multi-turn potentiometers for output range calibration and zero offset adjustment. Built-in signal buffer and isolation circuit to reduce interference between drive power unit and external measuring equipment. Dual LED indicators display board power supply and analog output status. Onboard overvoltage protection for external short circuit of analog wiring.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-52002-1 AOB board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal analog signal exchange. Separate analog output wiring from high energy pulse and power cables. Power on system,calibrate output range and zero point via front potentiometers. Verify analog output reading changes along with motor speed and load variation.

InterfaceBackplane edge connector,internal analog signal input,isolated analog signal output,auxiliary power terminal,shield grounding terminal,dual status LED indicators,front multi-turn calibration potentiometer bank.

FeatureRELIANCE 0-52002-1 rack mount AOB analog output board. Analog signal buffer and isolation circuit for drive monitoring signals. Front panel adjustable potentiometers for range and zero calibration. Short-circuit and overvoltage protection for external analog channels. Gold plated edge connector for reliable rack signal transmission. Dual LED visual indication for power and output state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticExternal meter reading drift:output potentiometer aging or zero drift; No analog output:internal signal path damage or missing rack power; Output value non-linear:buffer component degradation; Output signal noise:lack of shielding or ground loop interference; Intermittent signal jump:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-52002-1 is AOB analog output board. It collects internal operating signals of Reliance MaxPak Plus legacy spindle DC drive and outputs standard analog signals for speed,torque and current external monitoring,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
