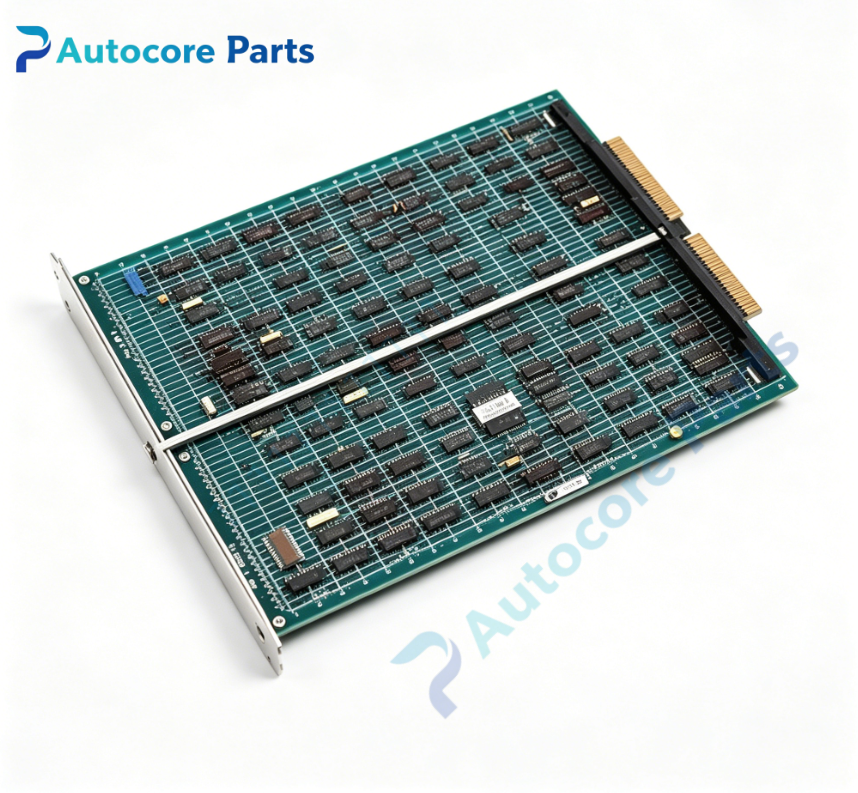

RELIANCE 0-52501-1 Digital Input Board

Technical SpecificationsModel:0-52501-1 Brand:RELIANCE Product type:Digital Input Board Weight:0.55kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-52501-1 is RELIANCE rack plug-in digital input board. It is designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with IOB input output board and SSC sequence board. It collects field side digital switching signals and transmits isolated logic signals to drive control rack. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-52501-1 is dedicated digital input PCB for RELIANCE MaxPak Plus DC drive system. Receive field digital signals including enable,interlock,external fault and status feedback signals. Equipped with optocoupler isolation circuit to separate field wiring side and internal control circuit,eliminate ground loop interference. Multi-channel LED indicators display each input channel on/off status. Onboard transient surge suppression circuit protects opto-components from spike noise on long field cables. It converts field discrete signals into standard logic level for the main control board processing.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-52501-1 digital input board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal logic signal exchange. Separate field input wiring from analog feedback and high-energy pulse cables. Power on system,trigger each field input signal and verify LED indicator and rack logic response.

InterfaceBackplane edge connector,field digital signal input,isolated logic signal output,auxiliary power terminal,shield grounding terminal,multi-channel input status LED indicators.

FeatureRELIANCE 0-52501-1 rack mount digital input board. Opto-isolated multi-channel digital input circuit for field discrete signals. Onboard surge protection for field wiring. Gold plated edge connector for reliable rack signal transmission. Multi LED visual indication for each input channel working state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticNo signal detected by drive:field wiring open or optocoupler damage; False input triggering:long cable induced noise without shielding; LED no light:channel auxiliary power missing; Random signal jump:ground potential difference; Intermittent signal loss:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-52501-1 is digital input board. It collects field discrete digital signals with opto-isolation protection and transmits logic signals to Reliance MaxPak Plus legacy spindle DC drive control rack,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
