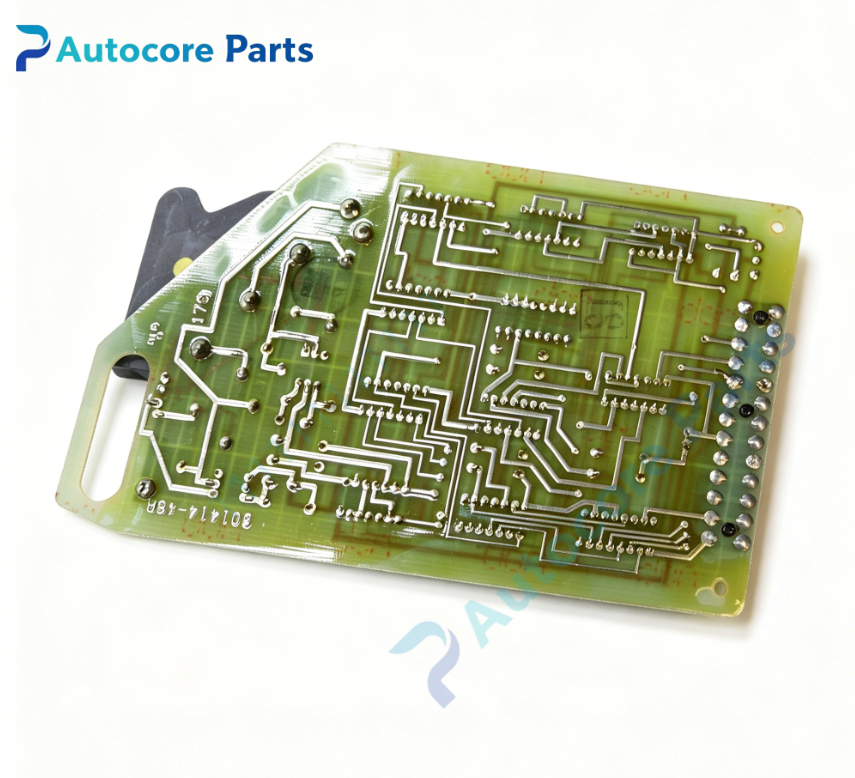

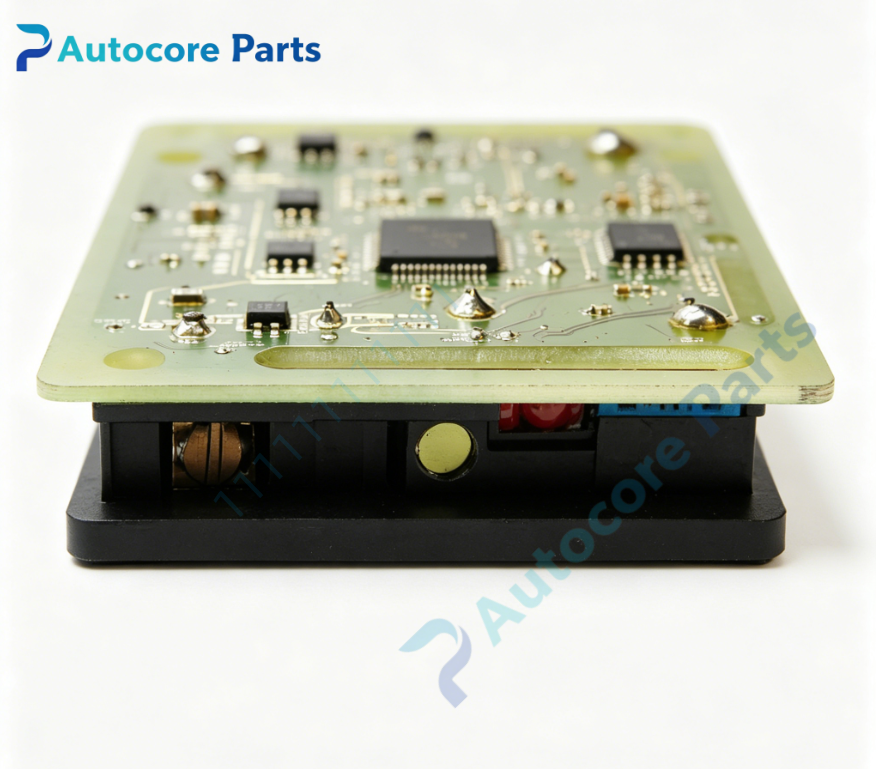

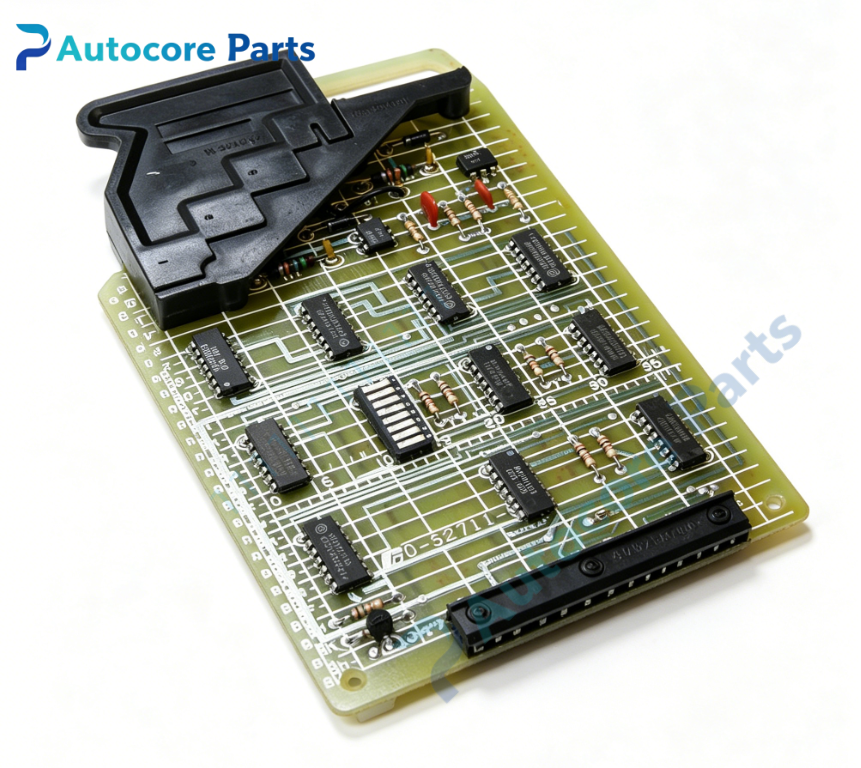

RELIANCE 0-52711-9 24VDC Digital Input Board

System compatibility0-52711-9 is RELIANCE rack plug-in 24VDC digital input board. It is revised version of 0-52711-8,designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with IOB input output board and SSC sequence board. It collects 24VDC field switching signals and transmits isolated logic signals to drive control rack. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-52711-9 is dedicated 24VDC digital input PCB for RELIANCE MaxPak Plus DC drive system. Receive 24VDC field digital signals including enable,interlock,external fault and status feedback signals. Equipped with upgraded optocoupler isolation circuit to separate field wiring side and internal control circuit,eliminate ground loop interference. Multi-channel LED indicators display each input channel on/off status. Enhanced transient surge suppression circuit protects opto-components from spike noise on long field cables. It converts field discrete 24V signals into standard logic level for the main control board processing.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-52711-9 digital input board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal logic signal exchange. Separate field input wiring from analog feedback and high-energy pulse cables. Power on system,trigger each field 24V input signal and verify LED indicator and rack logic response.

InterfaceBackplane edge connector,24VDC field digital signal input,isolated logic signal output,auxiliary power terminal,shield grounding terminal,multi-channel input status LED indicators.

FeatureRELIANCE 0-52711-9 rack mount 24VDC digital input board. Upgraded opto-isolated multi-channel 24V digital input circuit for field discrete signals. Reinforced surge protection for field wiring compared with 0-52711-8. Gold plated edge connector for reliable rack signal transmission. Multi LED visual indication for each input channel working state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticNo signal detected by drive:field wiring open or optocoupler damage; False input triggering:long cable induced noise without shielding; LED no light:channel auxiliary power missing; Random signal jump:ground potential difference; Intermittent signal loss:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-52711-9 is 24VDC digital input board. It collects field discrete 24V digital signals with reinforced opto-isolation protection and transmits logic signals to Reliance MaxPak Plus legacy spindle DC drive control rack,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
