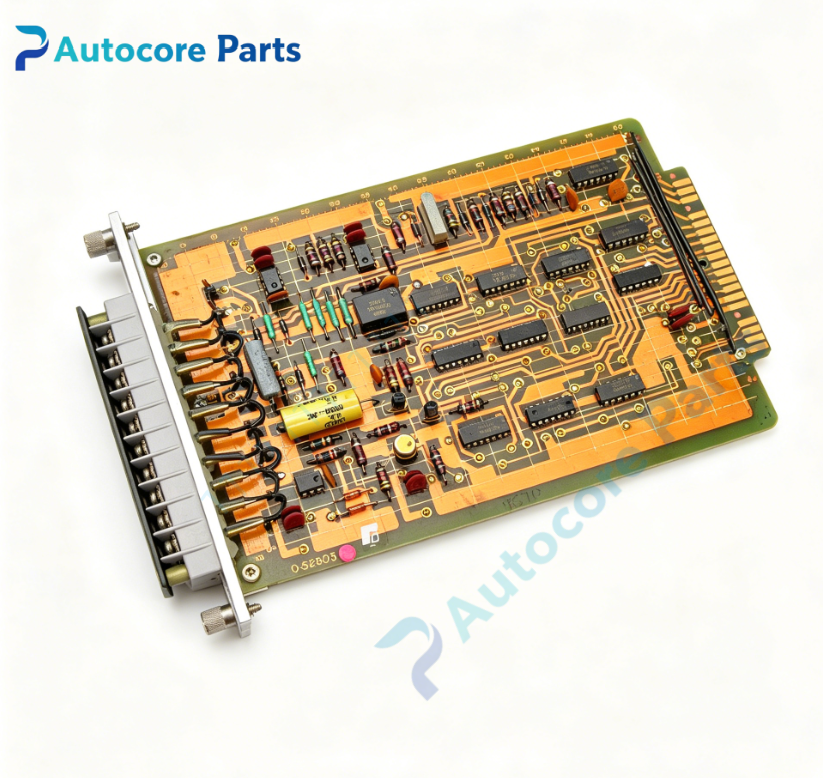

RELIANCE 0-52803 Tachometer Feedback Board

Technical SpecificationsModel:0-52803 Brand:RELIANCE Product type:Tachometer Feedback Board Weight:0.52kg Dimension:210mm135mm30mm Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility0-52803 is RELIANCE rack plug-in tachometer feedback board. It is designed for Reliance MaxPak Plus series spindle DC drive rack,cooperates with ARM armature regulator board. It collects tachometer generator signal from spindle motor and converts it into stable speed feedback signal for speed closed-loop control. Commonly used for maintenance and spare replacement of old industrial spindle DC drive equipment.

Function0-52803 is dedicated tachometer feedback PCB for RELIANCE MaxPak Plus DC drive system. Receive analog tachometer voltage signal from DC spindle motor tach generator. Complete signal filtering,amplification and waveform conditioning,output standardized speed feedback signal to armature regulator board for speed loop PI control. Front panel multi-turn potentiometers for speed scaling and zero point calibration. Dual LED indicators display board power and tach signal valid status. Built-in overvoltage protection circuit to prevent damage caused by abnormal high voltage from tachometer.

InstallationPower off the whole drive cabinet and cut main power supply. Insert 0-52803 tachometer feedback board into drive rack slot and lock retaining screw. Connect gold finger backplane connector for internal speed signal transmission. Separate tachometer field wiring from high power pulse and analog control cables. Power on system,calibrate speed gain and offset via potentiometers. Verify speed feedback value changes synchronously with motor actual rotation speed.

InterfaceBackplane edge connector,motor tachometer signal input,processed speed feedback output,auxiliary power terminal,shield grounding terminal,dual status LED indicators,front multi-turn calibration potentiometer bank.

FeatureRELIANCE 0-52803 rack mount tachometer feedback board. Analog signal conditioning circuit for motor tachometer feedback. Front panel adjustable potentiometers for speed range calibration. Overvoltage protection for tachometer input channel. Gold plated edge connector for reliable rack signal transmission. Dual LED visual indication for power and signal state. Industrial PCB design for long continuous running in harsh factory environment. Discontinued obsolete board,supply only for old Reliance MaxPak Plus DC drive system spare replacement. Suitable for metallurgy,paper-making production line spindle DC drive renovation and maintenance.

DiagnosticMotor speed unstable:tach signal attenuation or potentiometer drift; No speed feedback:tach wiring open or input circuit damage; LED no light:board auxiliary power loss; Speed reading noise:lack of shielding or ground interference; Intermittent speed fluctuation:backplane pin oxidation and poor contact.

Product BriefRELIANCE 0-52803 is tachometer feedback board. It acquires and conditions tachometer generator signal from spindle motor,provides accurate speed feedback for Reliance MaxPak Plus legacy spindle DC drive speed closed-loop regulation,widely used as spare part for legacy DC drive equipment maintenance.

Disclaimer:All parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
