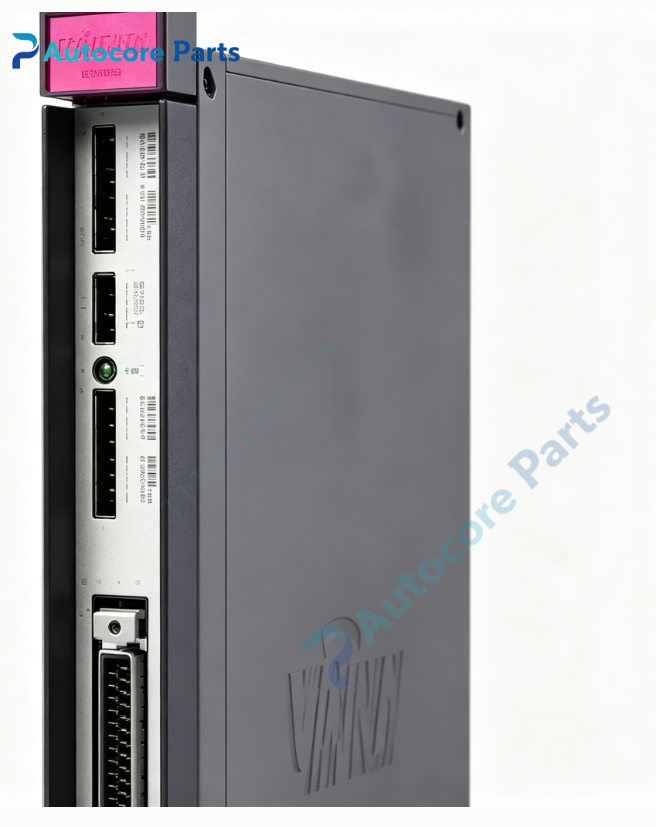

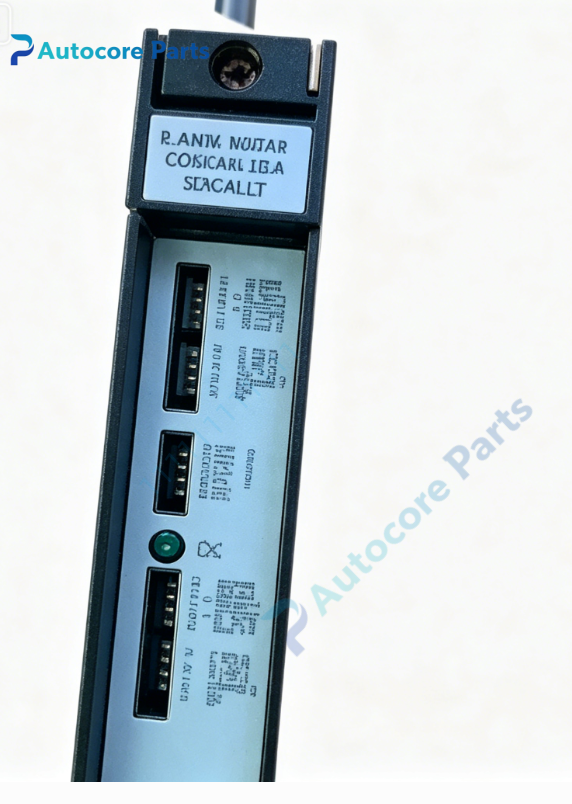

RELIANCE 0-57422 2 Axis Servo Controller Module

Technical Specifications

Model:0-57422

Brand:RELIANCE

Product type:2 Axis Servo Controller Module

Onboard CPU:80186

Position loop update cycle:1.25ms

Encoder signal:5V Differential TTL

Max channel frequency:250kHz

Registration input:15~24VDC

Watchdog relay interlock for drive enable

Weight:0.46kg

Dimension:263mm58mm28mm

Operating temperature:0℃ ~ 60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~85%,non-condensing

Certification:CE

System compatibility

0-57422 belongs to RELIANCE AutoMax DCS5000 series dual-axis servo controller module.

Installed into AutoMax rack,work with AutoMax CPU 0-57407 and other I/O modules.

Directly control AC servo amplifier and DC drive unit,support velocity and current loop operation.

Coordinate with resolver module 57411 and pulse tach module 57421 for multi-axis motion system.

Commonly used for old DCS and servo motion equipment maintenance and spare replacement.

Function

0-57422 is dual-axis servo motion controller for RELIANCE AutoMax system.

Onboard 80186 processor executes high speed position and velocity closed-loop calculation.

Receive 5V differential TTL quadrature encoder feedback from servo motor.

Output analog command signal to servo amplifier for position synchronization control.

15~24VDC registration input for mark position capture.

Hardware watchdog with interlock relay to cut off drive enable on module fault.

Upload axis position,velocity and servo fault status to AutoMax main CPU.

Onboard LED indicators for axis running state,error and diagnostic information.

Installation

Power off the whole AutoMax rack and cut main power supply.

Insert 0-57422 module into designated rack slot.

Lock module retaining clips.

Connect backplane bus,shielded differential encoder cable and analog command wiring.

Encoder cable use twisted pair and separate from high voltage power cable.

Power on system,download motion program and tune servo loop parameters.

Test point-to-point positioning,electronic cam and registration capture function.

Interface

AutoMax backplane edge connector,encoder feedback terminal,analog command output port,registration input terminal,status and fault LED indicators.

Feature

RELIANCE 0-57422,AutoMax two-axis integrated servo control module.

Dual axis independent closed-loop control,update cycle 1.25ms.

5V differential TTL encoder input,anti-interference for high speed pulse signal.

Hardware watchdog relay interlock for safe drive enable control.

Support registration mark capture for cutting and positioning application.

Discontinued obsolete module,supply only for old automation system spare replacement.

Suitable for metallurgy,paper-making heavy-duty multi-axis motion production line renovation.

Diagnostic

Axis position jitter:encoder cable damage or differential signal interference;

No position feedback:encoder power missing or terminal poor contact;

Servo cannot enable:watchdog interlock triggered or wiring fault;

Registration capture failure:mark signal wiring error;

Module fault LED on:backplane communication failure or internal circuit damage.

Product Brief

RELIANCE 0-57422 is AutoMax 2-axis servo controller module.

It performs high-speed closed-loop position and velocity control for two servo axes and receives differential TTL encoder feedback,widely used as spare part for heavy industry automation motion system maintenance.

Disclaimer

All parameters are for reference only and not for quotation basis. Goods are scarce and will be powered on for inspection before shipment. Overseas delivery lead time 3-7 working days. This item is only used for equipment maintenance and retrofit.
