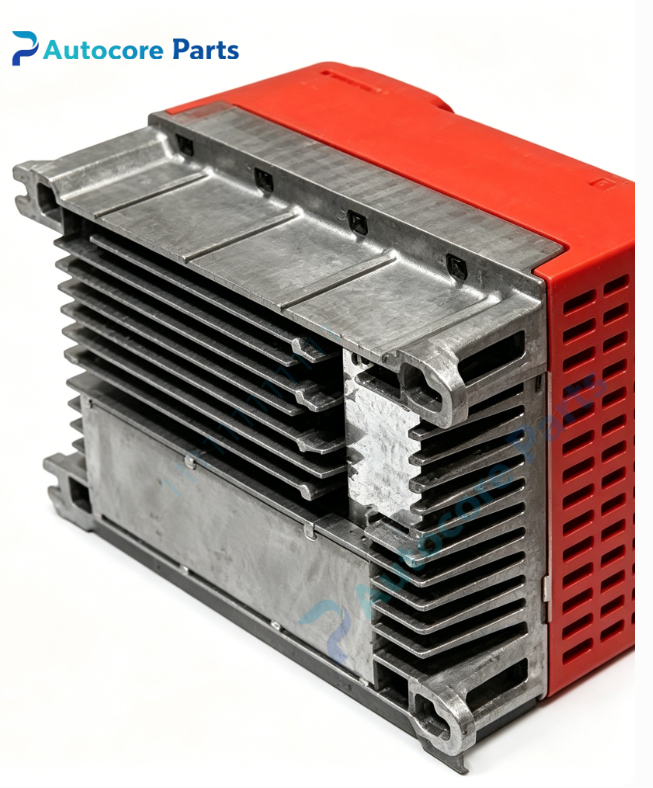

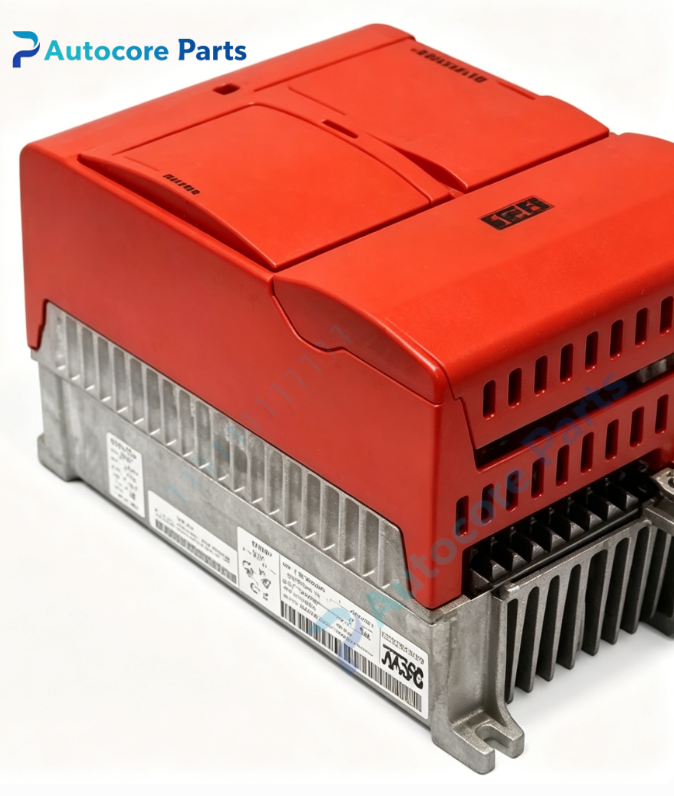

SEW 31C008-503-4-01 MOVITRAC 31C Crane Control Frequency Inverter

Technical SpecificationsModel:31C008-503-4-01 Brand:SEW Product type:MOVITRAC 31C Cabinet Frequency Inverter,Special Crane Control Version Weight:0.95kg Dimension:160mm90mm130mm Rated input voltage:380~500VAC,3 phase,50/60Hz Rated power:0.75kW Rated output current:2.2A Protection class:IP20 Operating temperature:0℃ ~ 60℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibility31C008-503-4-01 is SEW MOVITRAC 31C series special crane control frequency inverter,equipped with FEA31C input/output expansion PCB with crane control EPROM firmware. It is designed for three-phase asynchronous motors,mainly applied for overhead crane hoist and trolley motion control. Widely used in crane,material handling equipment,for maintenance and spare replacement of legacy SEW drive systems.

Function31C008-503-4-01 is dedicated crane version of SEW MOVITRAC 31C series. It supports two operation modes: motorized potentiometer mode and fixed setpoint mode,selected by digital input signal. It adopts V/F control algorithm,receives analog speed reference and digital run/stop signals,generates PWM three-phase output to adjust motor speed. It samples DC bus voltage,output current and power module temperature signal,realizing overcurrent,overvoltage,undervoltage and overtemperature protection. It supports local parameter setting via front panel keypad,stores operating data and fault history. Built-in basic EMC suppression circuit to reduce electromagnetic interference. Terminal block for power and signal wiring,LED indicators on front cover.

InstallationPower off the AC main power supply before installation. Mount 31C008-503-4-01 vertically inside control cabinet on metal backplate with fixing screws. Keep upper and bottom clearance for heat dissipation. Separate power input cable,motor cable and low-voltage control wiring. Complete wiring according to terminal definition. Power on the inverter,input motor nameplate parameters,test motor start,stop and speed adjustment function.

Interface3-phase AC power input terminal,3-phase motor output terminal,analog/digital I/O terminal,fault relay output,keypad socket,shield grounding terminal,LED status indicators,crane dedicated control I/O via FEA31C expansion board.

FeatureSEW 31C008-503-4-01 IP20 compact inverter. Dedicated crane control firmware,dual speed setpoint modes. Integrated multi-protection functions. Simple terminal wiring and easy parameter commissioning. LED indicators for running and fault status. Discontinued obsolete drive,supply only for legacy MOVITRAC 31C crane inverter spare replacement. Suitable for overhead crane hoist and trolley,logistics conveyor,packaging machinery renovation and maintenance.

DiagnosticMotor no rotation:power wiring error or parameter misconfiguration; Inverter trip frequently:overload or current sampling fault; No display:input power missing; Speed unstable:analog reference interference; Intermittent shutdown:internal component aging or loose terminal contact; Crane mode abnormal:check FEA31C expansion board and control signal wiring.

Product BriefSEW 31C008-503-4-01 is MOVITRAC 31C 0.75kW 380~500V cabinet inverter with crane control firmware and FEA31C expansion board. It adopts V/F control for three-phase asynchronous motor speed regulation,widely used as spare part for legacy SEW crane drive system maintenance.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
