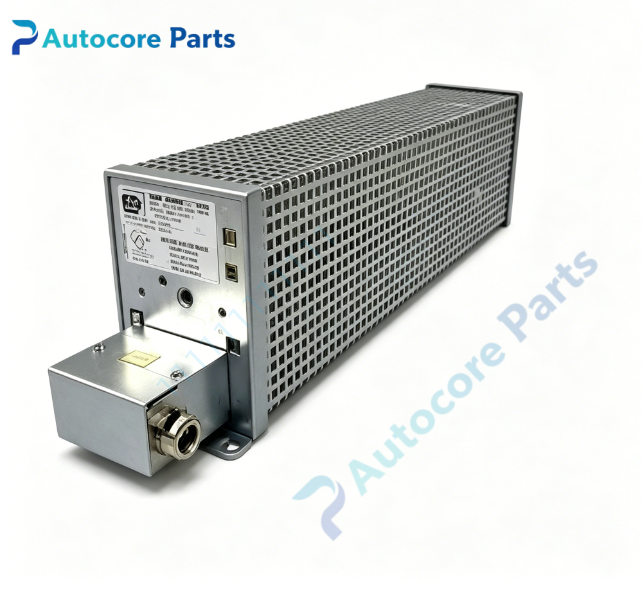

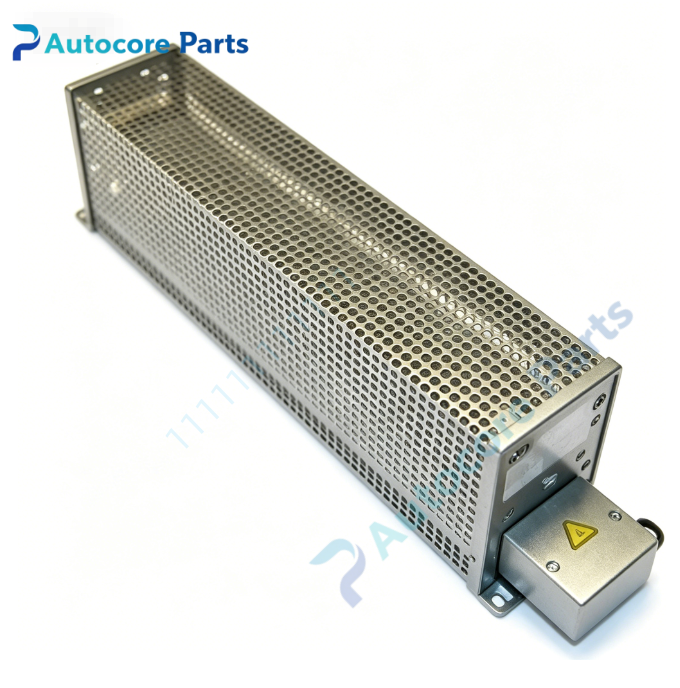

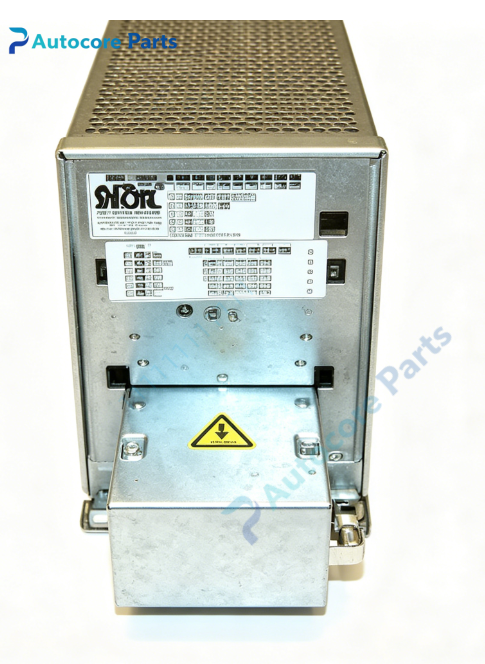

SEW BW027-006 Braking Resistor

Technical SpecificationsModel:BW027-006 Brand:SEW Product type:External Dynamic Braking Resistor Weight:1.2kg Dimension:160mm60mm100mm Resistance:27Ω ±10% Continuous braking power:0.6kW Protection class:IP20 Operating temperature:-20℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibilityBW027-006 is SEW BW series external braking resistor. Compatible with MOVIDRIVE MD60A, MDX61B servo drives, MOVITRAC B inverters and BTS brake chopper modules. Widely used for small conveyor, packaging and material handling machinery, used for legacy SEW drive system maintenance and spare replacement.

FunctionThis compact wire-wound braking resistor consumes regenerative energy generated by motor deceleration. When DC bus voltage rises, the brake chopper activates and releases excess energy through this resistor to suppress overvoltage fault. Terminal block for DC bus wiring, needs external thermal protection relay.

InstallationPower off the drive DC bus before installation. Mount BW027-006 vertically in control cabinet, keep sufficient air circulation. Separate high voltage braking cables and low voltage control wiring. Connect resistor terminals to brake chopper or drive brake terminals. Configure external thermal protection relay for overheat protection. Test braking function after wiring.

InterfaceBrake power connection terminals, shield grounding terminal.

FeatureSEW BW027-006 compact wire wound braking resistor. 27 ohm impedance, continuous 0.6kW rating. Small footprint for low power drive systems. High temperature resistant wire winding. Discontinued spare part, only for SEW small inverter and servo system maintenance replacement. Suitable for small logistics conveyor and packaging automation equipment.

DiagnosticDC bus overvoltage alarm during deceleration: resistor open circuit or loose terminal; Resistor overheat alarm: excessive braking duty cycle; Resistor no heating: brake chopper not triggered; Short circuit fault: resistor insulation breakdown.

Product BriefSEW BW027-006 is BW series 27Ω 0.6kW external braking resistor, used to dissipate regenerative energy for SEW low-power MOVIDRIVE and MOVITRAC inverters and servo drives.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
