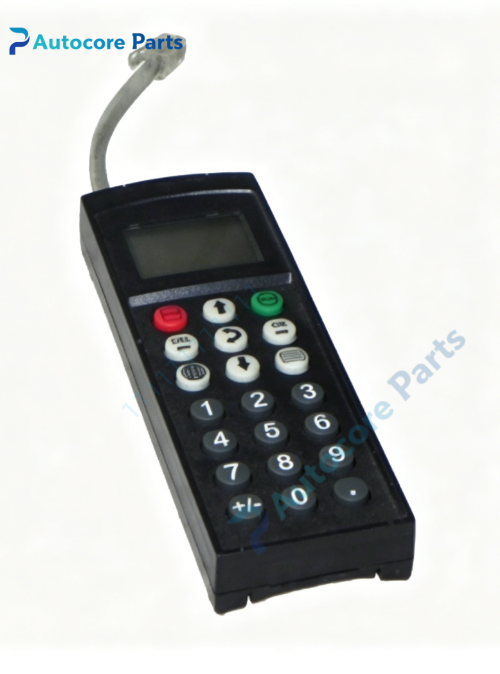

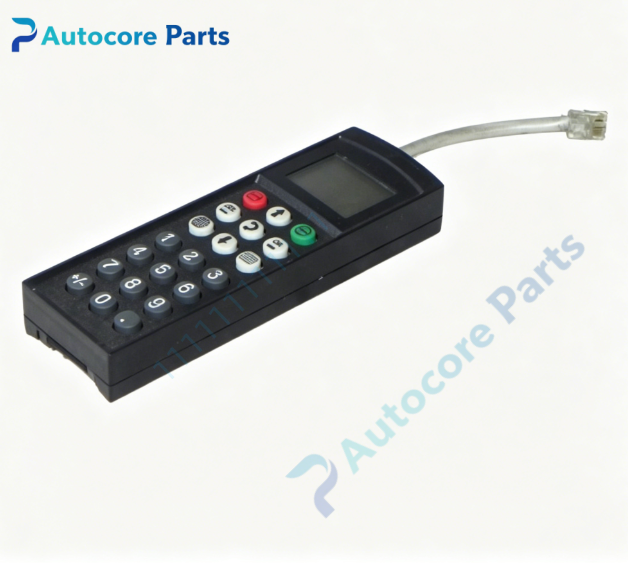

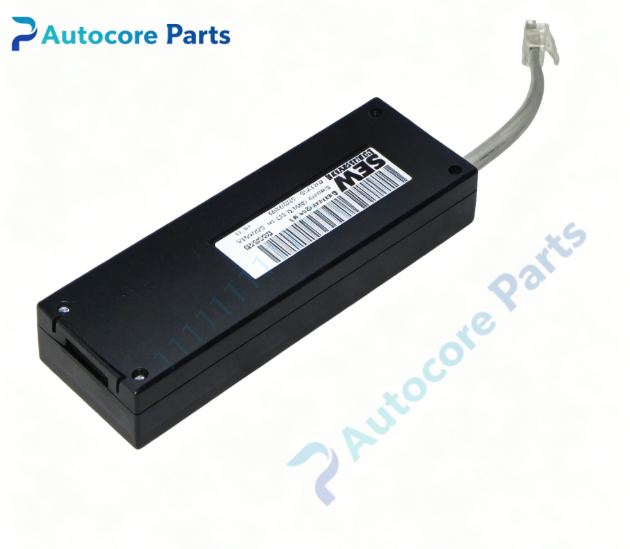

SEW DBG60B-2HRX Operator Keypad

Technical SpecificationsModel:DBG60B-2HRX Brand:SEW Product Type:Drive Operator Keypad Weight:0.28kg Dimension:130mm72mm32mm Display:Backlit plain text LCD Keys:21 membrane keys Protection class:IP40 Operating temperature:-20℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE

System compatibilityDBG60B-2HRX is original SEW operation keypad. Compatible with MOVIDRIVE MDX60B, MDX61B, MOVITRAC B, MOVIMOT and MOVIFIT series inverters. Widely used for packaging machines, conveyor systems and automated production lines, for legacy SEW drive commissioning, parameter backup and spare replacement.

FunctionThis keypad supports local manual operation for SEW inverters. It enables parameter read/write, real-time process value monitoring, binary I/O status check, fault history query and fault reset. It can save parameter sets and copy parameters to other drives for fast batch commissioning. It supports IPOSplus program debugging, plain-text alarm display to simplify on-site maintenance. It can be used directly plugged on drive or remotely via DKG60B extension cable.

InstallationCut off inverter power before installation. Plug DBG60B-2HRX into front communication port of the inverter. Lock the buckle for fixation. Power on the drive, the keypad will automatically establish communication. Use DBM60B mounting frame if cabinet door mounting is required, matched with DKG60B extension cable. After commissioning, store parameter files in keypad for backup.

InterfaceDedicated MOVIDRIVE plug connector, support DKG60B extension cable connection.

FeatureSEW DBG60B-2HRX handheld style keypad with backlit multi-language plain text LCD. 21-key full function layout, convenient for complete parameter setup and IPOSplus programming. Parameter cloning function for quick drive replacement. IP40 front panel protection. Discontinued original spare part, only for MOVIDRIVE / MOVITRAC series drive maintenance replacement. Suitable for field commissioning and troubleshooting of automation production equipment.

DiagnosticNo backlight & no display: loose connector or keypad hardware damage; Cannot modify parameters: drive parameter lock activated; Intermittent communication: poor pin contact or damaged DKG60B cable; Garbled text: firmware mismatch between keypad and inverter; Parameter copy failure: insufficient storage or incompatible drive model.

Product BriefSEW DBG60B-2HRX is multi-language backlit plain text operator keypad, designed for MOVIDRIVE MDX60B/MDX61B and MOVITRAC B inverters, used for parameter configuration, status monitoring and fault diagnosis.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
