SEW KA47/T Gear Reducer Unit

Module Feature

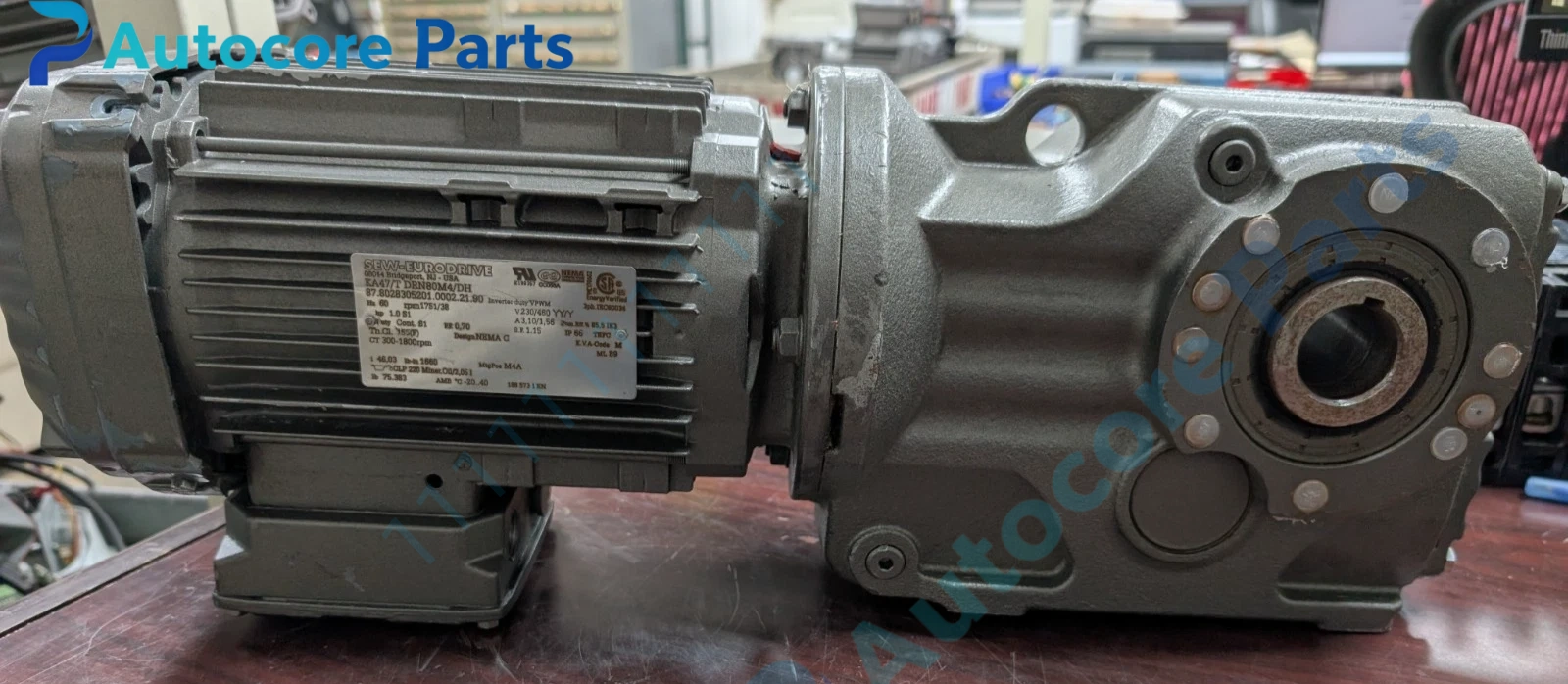

KA47/T is SEW KA series right‑angle helical‑bevel gear reducer. The suffix /T means equipped with torque‑arm mounting. Compact housing, high transmission efficiency, hollow output shaft structure. It can assemble with SEW DRN series motors, widely used for conveyors and material‑handling equipmentAlibaba.

Working principle

Input high‑speed rotation transfers to helical‑bevel gear sets. Gear meshing reduces speed and amplifies output torque, changes power output direction by 90‑degree right‑angle transmission. Torque arm absorbs reaction torque during operation.

Onboard components

Helical‑bevel gear set, bearing assembly, cast gear housing, hollow output shaft, torque‑arm bracket, oil seal and sealing gaskets.

LED indicators

No onboard LED indicators. Condition judged by noise, vibration and oil temperature.

Hardware self‑diagnosis

Check gear‑oil level and leakage, monitor abnormal noise and vibration, inspect torque‑arm mounting tightness, check housing overheating.

Programming software

No configuration software, purely mechanical transmission component.

Electrical & Process Parameters

Model:KA47/T Brand:Sew Device type:Helical‑Bevel Gear Reducer Output Type:Hollow shaft with torque arm Transmission:90‑degree right‑angle Function:Reduce speed and increase torque for driven machinery

Mechanical & Structure

Mounting:Torque arm mounting Protection class:IP54 Housing:Cast iron housing

Environmental

Operating temperature:-20℃ ~ +40℃ Storage temperature:-30℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:IEC industrial gear unit standard compliant Status: SEW original KA series gear reducer

Installation

Fix torque‑arm bracket to foundation. Couple input end with matching motor. Keep proper oil level, check sealing status before commissioning. Avoid torque‑arm over‑stress during operation.

Interface

Motor input connection interface, hollow output shaft, torque‑arm mounting hole, oil fill and drain ports.

Diagnostic

Gearbox overheat: insufficient or deteriorated gear oil. Abnormal noise: gear wear or bearing damage. Housing shift: loose torque‑arm fasteners. Oil leakage: damaged oil seal.

Product Brief

SEW KA47/T right‑angle helical‑bevel gear reducer with torque‑arm, provides speed reduction for conveyors and general industrial machinery.
