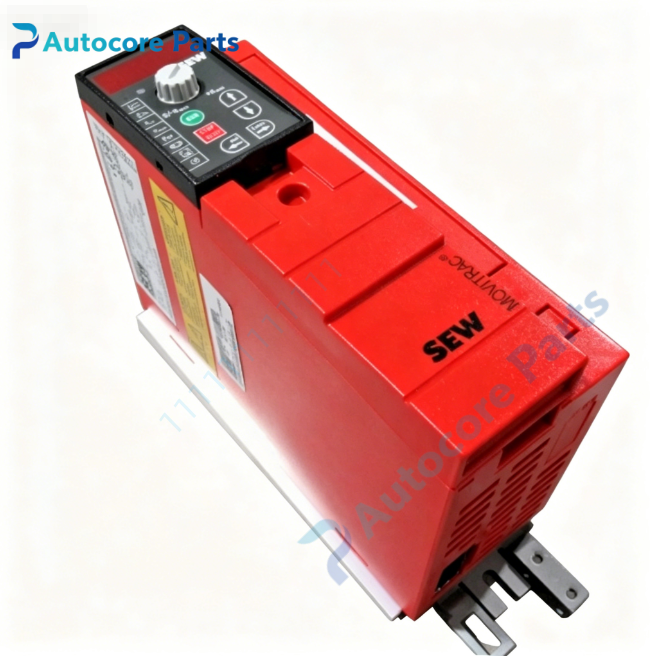

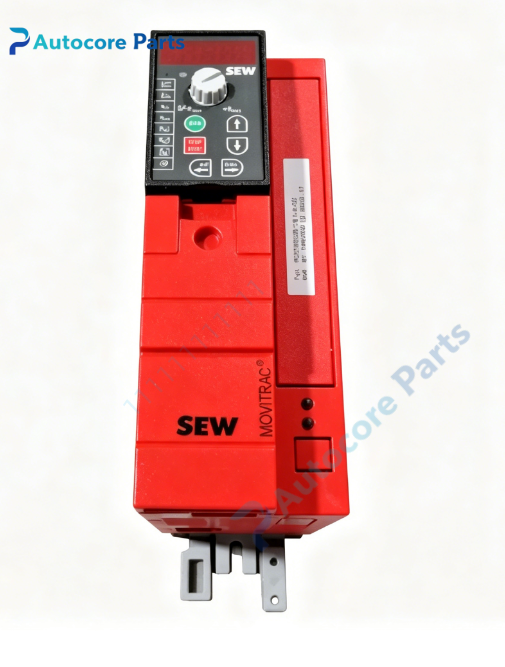

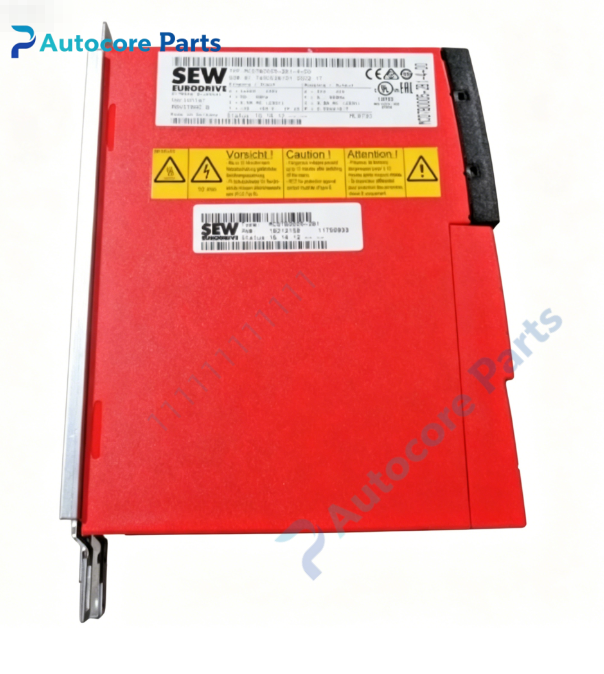

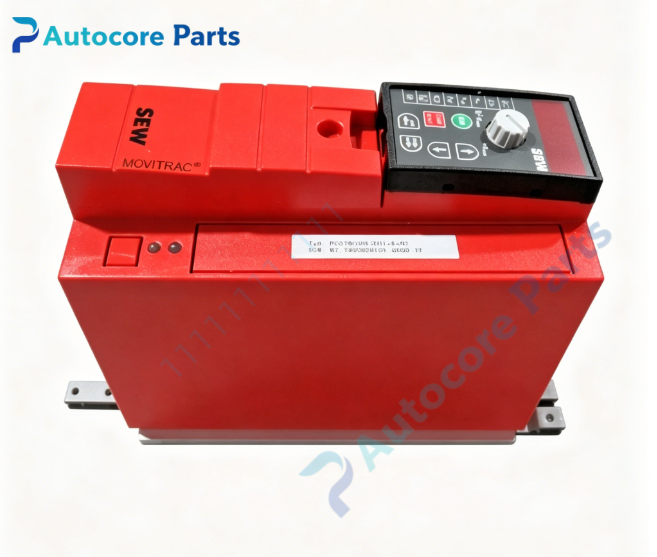

SEW MAC07B0005-2B1-4-00 Frequency Inverter

Technical SpecificationsModel:MAC07B0005-2B1-4-00 Brand:SEW Product Type:Compact AC Frequency Inverter Rated power:0.55kW Input voltage:1×AC 200–240V,50/60Hz Output voltage:3×AC 0~input voltage Overload capacity:150% rated current for 60s Protection class:IP20 Mounting:Panel cabinet wall mounting Weight:0.6kg Operating temperature:-10℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE,UL

System compatibilityMAC07B0005-2B1-4-00 belongs to SEW MOVITRAC B series inverter. It is designed for controlling three-phase asynchronous motors. It can match SEW gearmotors and standard three-phase motors, widely applied in conveyor, packaging, material handling and small automated machinery, used for drive maintenance replacement.

FunctionThis compact inverter provides variable speed control for three-phase induction motors. It integrates brake chopper, built-in I/O terminals and basic positioning function. It supports VFC speed regulation, overcurrent, overvoltage, overheat and motor overload protection. It can connect to fieldbus modules to realize communication control for automated production lines.

InstallationDisconnect power before installation. Mount the inverter vertically inside control cabinet, keep sufficient top and bottom ventilation clearance. Wire power terminals and motor terminals strictly following SEW wiring diagram. Set motor nameplate parameters during commissioning. Confirm EMC grounding to reduce electromagnetic interference.

InterfacePower terminal block, digital & analog I/O terminal, front keypad port, optional fieldbus slot.

FeatureSEW MAC07B0005-2B1-4-00 compact cabinet-mounted inverter with small footprint. Built-in brake chopper for quick stop application. Multiple built-in protection functions. Supports parameter upload/download via FBG keypad. Discontinued legacy spare part, only for maintenance replacement of MOVITRAC B drive systems.

DiagnosticDrive no power: input power missing or fuse blown; Overcurrent fault: motor short circuit, cable damage or parameter mismatch; Over temperature: poor ventilation, fan failure or continuous overload; Communication failure: loose bus connector or wrong address setting.

Product BriefSEW MAC07B0005-2B1-4-00 is MOVITRAC B series 0.55kW single phase input frequency inverter, used for speed control of three-phase asynchronous motors in small industrial automation equipment.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
