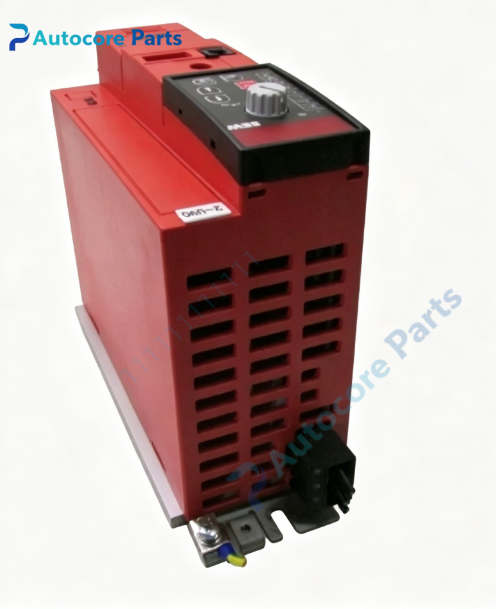

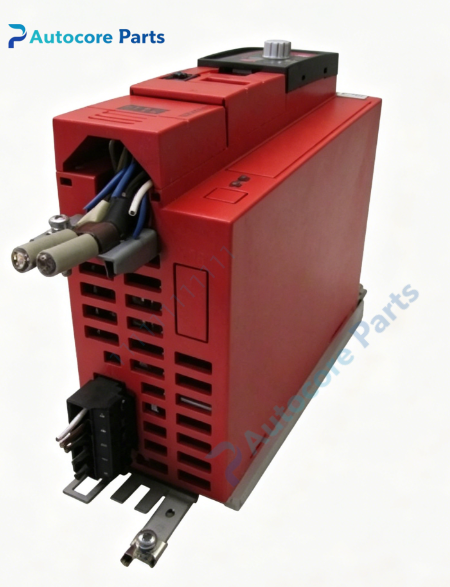

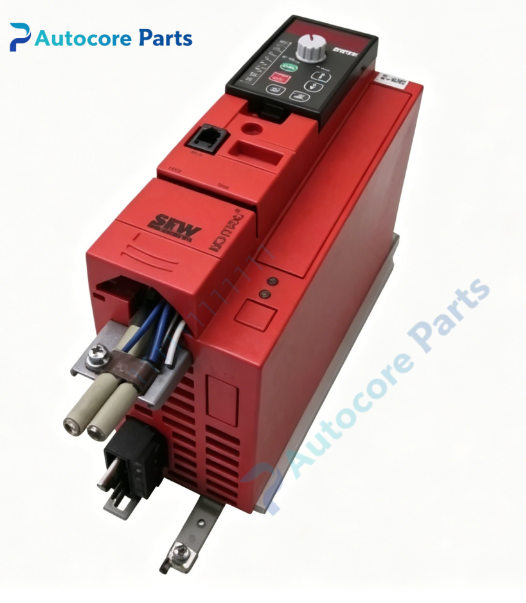

SEW MC07B0005-5A3-4-00 Frequency Inverter

Technical SpecificationsModel:MC07B0005-5A3-4-00 Brand:SEW Product Type:MOVITRAC B Compact AC Frequency Inverter Rated power:0.55kW Input voltage:3×AC 380–500V,50/60Hz Rated output current:2.0A Output frequency:0~600Hz Overload capacity:150% rated current for 60s Protection class:IP20 Mounting:Panel cabinet vertical mounting Weight:1.0kg Size:0S,80mm185mm163.5mm Operating temperature:-10℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~85%,non-condensing Certification:CE,UL

System compatibilityMC07B0005-5A3-4-00 belongs to SEW MOVITRAC B series inverter. It controls three-phase asynchronous motors, perfectly matches SEW DR series gearmotors and standard 3-phase induction motors. Widely applied for conveyor, packaging, material handling and fan equipment, used as replacement spare part for MOVITRAC B drive systems.

FunctionThis compact inverter supports V/F and VFC vector speed regulation. It integrates built-in brake chopper, digital and analog I/O terminals. It supports optional fieldbus modules to realize bus communication control. Built-in complete protection functions: overcurrent, overvoltage, undervoltage, overtemperature, motor overload and short-circuit protection.

InstallationDisconnect power before installation. Mount inverter vertically inside control cabinet, keep sufficient top and bottom ventilation clearance. Wire power terminals and motor terminals strictly following SEW wiring diagram. Set motor nameplate parameters during commissioning. Complete EMC grounding to reduce electromagnetic interference.

InterfacePower terminal block, digital & analog I/O terminal, front keypad port, optional fieldbus expansion slot.

FeatureSEW MC07B0005-5A3-4-00 compact cabinet-mounted 0.55kW three-phase input inverter, 0S frame size for limited cabinet space. Built-in brake chopper for rapid stop. Parameter upload/download available via MOVITOOLS MotionStudio. Discontinued legacy spare part, only for maintenance replacement of MOVITRAC B drive systems.

DiagnosticDrive no power: input power missing or internal fuse blown; Overcurrent fault: motor short circuit, cable damage or motor parameter mismatch; Over temperature: poor ventilation, fan failure or continuous overload; Communication failure: loose bus connector or wrong station address setting.

Product BriefSEW MC07B0005-5A3-4-00 is MOVITRAC B series 0.55kW three phase input frequency inverter, used for speed regulation of three-phase asynchronous motors in small conveyor, packaging and general industrial automation machinery.

DisclaimerAll parameters are for reference only and not the basis of quotation. Goods are scarce,overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
