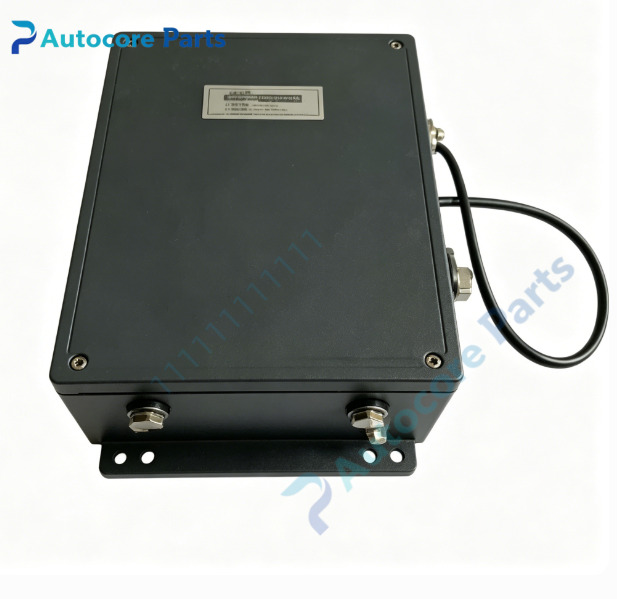

Siemens 15492-186 Reporter Box

Technical SpecificationsModel:15492-186 Brand:Siemens Product Type:APACS+ Reporter Box Power Supply:120/240V AC,50/60Hz Communication:Moore proprietary system bus Mounting:Panel mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:4.2kg Dimension:280mm145mm320mm

System compatibility15492-186 belongs to Siemens Moore APACS+ DCS series. It connects to APACS+ controller via dedicated communication bus, works with operator workstation, supports alarm and event data acquisition, can coordinate operation with QUADLOG SIS for safety event recording.

FunctionThis Reporter Box is dedicated peripheral device for APACS+ DCS. It receives process alarm messages, sequence of events, operator actions and trend data from control system. It realizes hardcopy printing of alarm logs, shift reports and process event records, archives critical plant operation records for audit and troubleshooting. It supports report trigger by time schedule or alarm events.

InstallationCut off power before installation. Mount the reporter box on control cabinet panel. Connect AC power and proprietary communication cable to APACS+ system. Configure report format, alarm filter and print schedule via APACS engineering software, test print and event capture function after commissioning.

InterfaceDedicated system communication port, built-in print mechanism, rear screw terminal block for AC power, status LED indicators for power and communication.

FeatureAPACS+ dedicated alarm and event reporter box, automatic alarm/event logging, scheduled shift report printing, panel enclosure design, built-in self-diagnosis. Obsolete legacy spare part, used for old APACS+ DCS alarm recording system maintenance and replacement.

DiagnosticNo power: check AC power input and terminal wiring. No print output: inspect paper installation, print head and communication cable. Cannot receive alarm events: verify bus communication, system address configuration and controller data publishing.

Product BriefSiemens 15492-186 is Moore APACS+ Reporter Box, widely used in petrochemical, power and pulp & paper industries for DCS alarm logging and process event hardcopy report output.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
