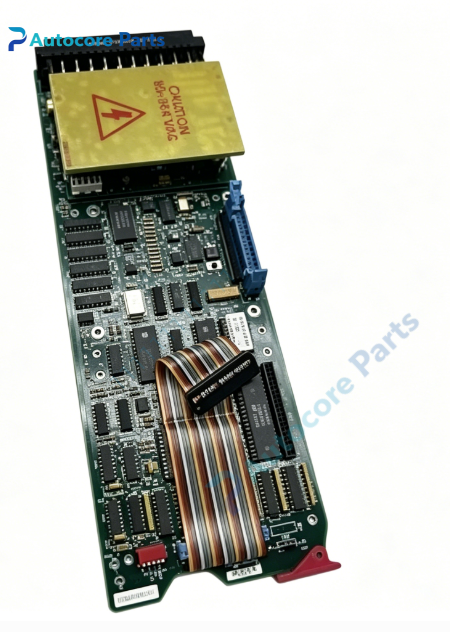

Siemens 15763-201/13 Controller Main Board Assembly

Technical SpecificationsModel:15763-201/13 Brand:Siemens Product Type:352 Controller Main Board Assembly with Power Supply Power Supply:120/240V AC,50/60Hz Signal I/O:4-20mA analog input,4-20mA analog output,alarm relay contacts Mounting:Internal board,fits Moore 352 panel controller housing Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%,non-condensing Weight:1.48kg Dimension:40mm148mm310mm

System compatibility15763-201/13 belongs to Siemens Moore 352 single-loop controller series. It is the core main control board with integrated power supply for Moore 352 panel mount PID controller. It can run standalone for closed-loop regulation or communicate with APACS+ DCS platform, receiving 4-20mA measurement signals from field transmitters and outputting control signal to valve actuators.

FunctionThis main board assembly integrates control CPU circuit and power supply module for Moore 352 single loop controller. It executes PID calculation for temperature,pressure,flow and liquid level control loops. It supports auto/manual mode switch,local setpoint adjustment,high/low process alarm and cascade control. It processes analog input signal and generates proportional 4-20mA output to adjust control valve opening, meanwhile processing front panel keypad input and display data transmission.

InstallationCut off controller power before installation. Insert the board assembly into 352 controller enclosure and lock mounting latches. Wire AC power,analog I/O and alarm relay terminals. Configure PID parameters,alarm thresholds and communication settings via front panel keys,perform loop function test after commissioning.

InterfaceInternal edge connector to front display panel,rear screw terminal block for AC power and analog signals,alarm relay contact terminals,status LED indicators.

FeatureMoore 352 dedicated main control board with integrated power supply,built-in PID algorithm,auto/manual switching,process alarm function,plug-in replacement design. Obsolete legacy spare part,used for Moore 352 single-loop controller repair and replacement.

DiagnosticNo power: check AC power input and terminal wiring. Large control deviation: verify input signal integrity,re-tune PID parameters. Alarm cannot reset: check alarm threshold configuration and field process condition.

Product BriefSiemens 15763-201/13 is Moore 352 single loop PID controller main board assembly with power supply,widely used in petrochemical,power and pulp & paper industries for independent single-loop process control.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
