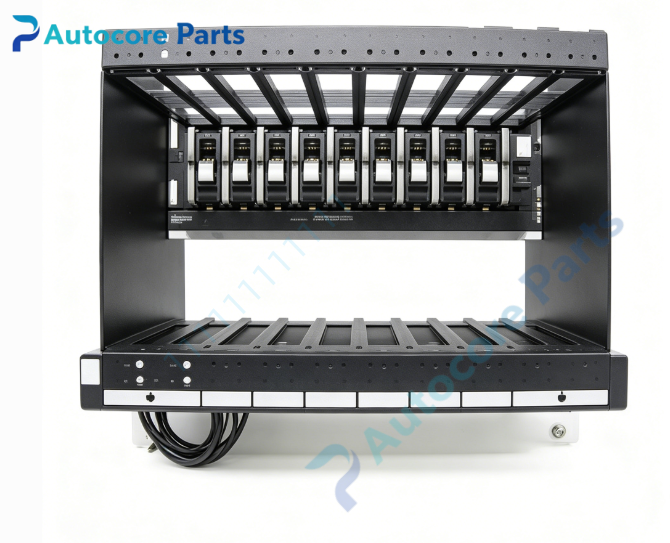

Siemens 16114-171/7 MODULRAC Rack Chassis

Technical SpecificationsModel:16114-171/7 Brand:Siemens Product Type:MODULRAC 17-Slot Rack Chassis System:QUADLOG Safety Instrumented System / APACS+ DCS System Power Supply:24V DC, max 12A backplane Slot Quantity:17 slots Mounting:Cabinet rack mount Operating temperature:-20℃ ~ +55℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:6.96kg Dimension:483mm178mm310mm

System compatibility16114-171/7 belongs to Siemens Moore MODULRAC series. It is the 17-slot backplane rack carrier for APACS+ DCS and QUADLOG SIS. Compatible with ACM controller, CCM safety controller, analog I/O, discrete I/O and communication modules of APACS+ / QUADLOG platform.

FunctionThis MODULRAC rack chassis provides mechanical installation, backplane bus communication and power distribution carrier for APACS+ and QUADLOG plug-in modules. The built-in backplane realizes high-speed data exchange and power supply between all inserted modules. It supports hot-swap of individual modules without shutting down the whole rack, centralized installation for control CPU, safety controller and I/O modules in control cabinet.

InstallationPower off the system power before installation. Fix the rack on standard cabinet mounting rail. Install 24V DC power supply module to the rack. Insert controller and I/O modules into corresponding slots, lock module latches. Complete backplane wiring, power up and verify rack status LED, download control logic and perform system full test.

InterfaceBuilt-in multi-channel backplane bus, module slot connectors, power distribution terminals, rack power and fault status LED indicators.

FeatureMODULRAC 17-slot industrial rack chassis, integrated backplane bus, high load capacity power distribution, metal heavy-duty housing, anti-vibration and good heat dissipation, Class I Division 2 hazardous area certification. Obsolete legacy spare part, used for APACS+ DCS and QUADLOG SIS rack chassis replacement and system expansion.

DiagnosticRack no power: check 24V DC input power, power module and power terminal wiring. Module communication loss: inspect backplane connector oxidation, module insertion and latch locking. Overcurrent alarm: check module power consumption and short circuit in backplane circuit.

Product BriefSiemens 16114-171/7 is MODULRAC 17-slot backplane rack chassis for APACS+ DCS and QUADLOG SIS, widely used in petrochemical, power and pulp & paper industries for DCS/SIS module installation and power & bus distribution.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
