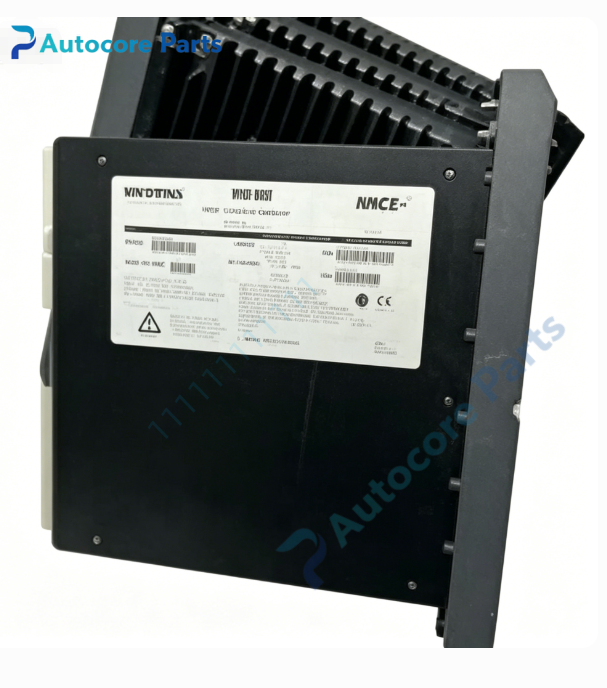

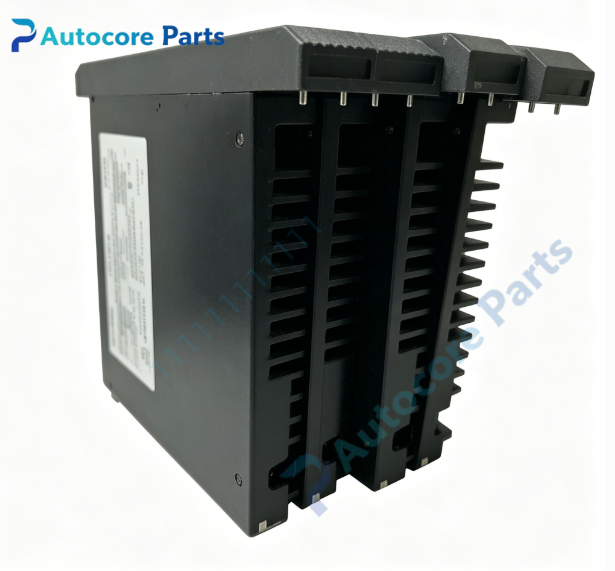

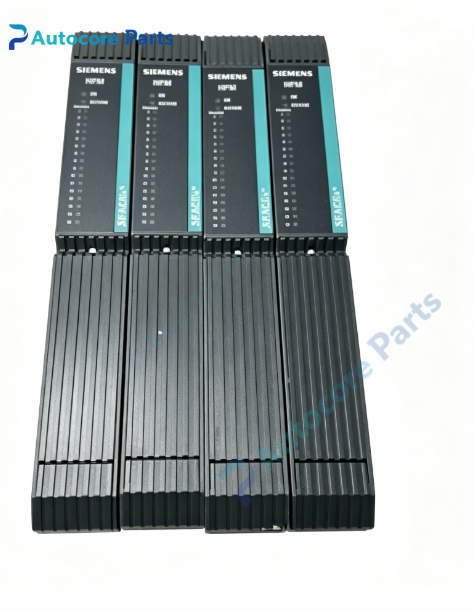

Siemens 39HFM2CBN HART Fieldbus Module

Technical SpecificationsModel:39HFM2CBN (Alternate PN:16110-171/03, A5E00392925/03) Brand:Siemens Product Type:HFM HART Fieldbus Module System:APACS+ DCS System Power Supply:24V DC Mounting:MODULRAC rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:2.0kg Dimension:40mm260mm310mm

System compatibility39HFM2CBN belongs to Siemens Moore APACS+ DCS series. It is compatible with ACM advanced controller and MODULRAC rack chassis, communicates with HART protocol smart field transmitters, can work together with QUADLOG SIS system.

FunctionThis HFM HART fieldbus module is dedicated HART communication interface card for APACS+ DCS. It communicates with 4-20mA HART smart instruments, reads process variables, device tag, diagnostic information, calibration data from HART transmitters. It transmits HART digital data to APACS+ controller via backplane bus, supports remote instrument configuration, device diagnosis and loop monitoring.

InstallationPower off the rack chassis before installation. Insert the module into MODULRAC rack slot and lock the latch, ensure backplane connector fully engaged. Connect HART field wiring between module and HART smart transmitters. Configure HART device parameters via APACS engineering software, verify digital communication and analog signal reading after power on.

InterfaceBackplane bus connector, HART field signal terminal, front LED indicators for power, run, fault and communication status.

FeatureAPACS+ dedicated HART fieldbus module, supports multi-drop HART communication, simultaneous analog 4-20mA and digital HART data, built-in device diagnostics, hot-swappable module, Class I Division 2 hazardous area certification. Obsolete legacy spare part, used for APACS+ DCS HART instrument communication loop maintenance and replacement.

DiagnosticModule no power: check rack 24V DC supply and backplane contact. HART communication interrupt: inspect field wiring, HART loop resistance and instrument power. Device cannot be detected: verify HART address configuration, cable short or open circuit.

Product BriefSiemens 39HFM2CBN is APACS+ HFM HART fieldbus communication module, widely used in petrochemical, power and pulp & paper industries for HART smart transmitter digital communication in DCS control system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
