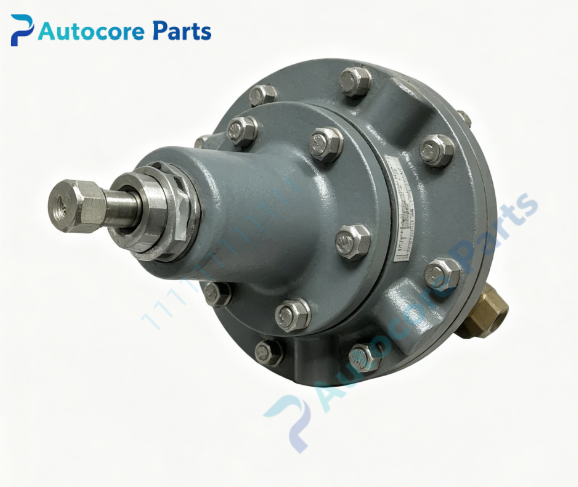

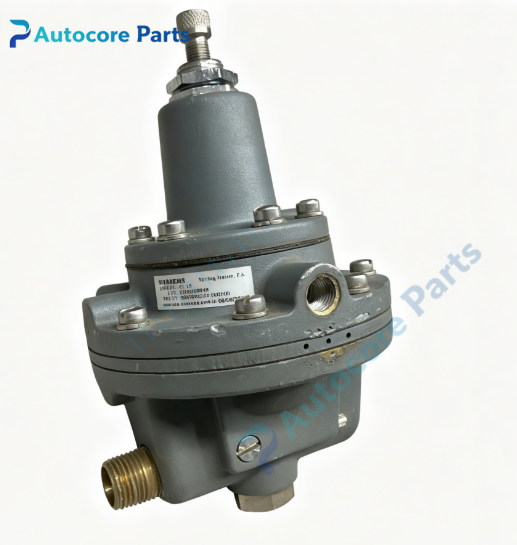

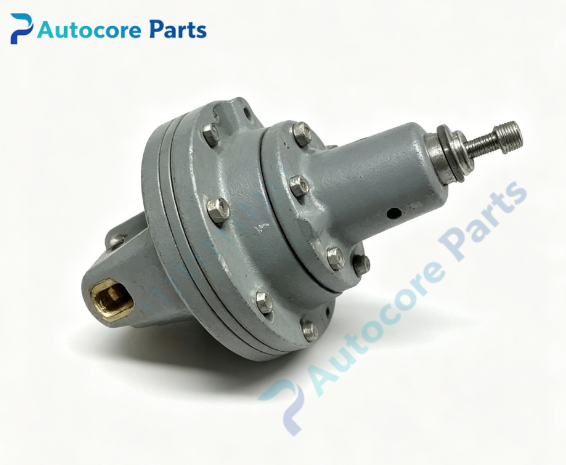

Siemens 42-15 Pressure Transmitter

Technical SpecificationsModel:42-15 Brand:Siemens Product Type:Pressure Transmitter Output Signal:4-20mA DC Power Supply:12-42V DC Mounting:Field pipe mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:1.35kg Dimension:120mm160mm200mm

System compatibility42-15 belongs to Siemens Moore 42 series pressure transmitter. It transmits 4-20mA pressure signal to DCS, SIS, single loop controllers, compatible with APACS+ DCS and QUADLOG SIS systems.

FunctionThis field pressure transmitter measures gauge or absolute pressure of process medium. It converts pressure value into proportional 4-20mA analog current signal and sends to control system. It provides pressure measurement data for closed-loop regulation and safety interlock of process equipment, suitable for liquid, gas and steam pressure monitoring.

InstallationCut off power and isolate process pressure before installation. Install transmitter on pressure tapping point, connect process pressure piping. Wire 4-20mA signal and power cable to electrical terminal compartment. Perform zero and span calibration after installation, verify measurement reading.

InterfaceProcess pressure port, electrical terminal block, local zero/span adjustment screw.

FeatureMoore 42 series pressure transmitter, 4-20mA analog output, rugged field housing, on-site calibration, explosion-proof option. Obsolete legacy spare part, used for industrial pressure measurement loop maintenance and replacement.

DiagnosticNo output signal: check loop power supply, wiring continuity and fuse. Measurement drift: re-calibrate zero and span, inspect pressure diaphragm for damage. Unstable reading: check process pipeline pulsation, pipe blockage and cable interference.

Product BriefSiemens 42-15 is Moore 42 series field pressure transmitter, widely used in petrochemical, power and pulp & paper industries for process pressure measurement.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
