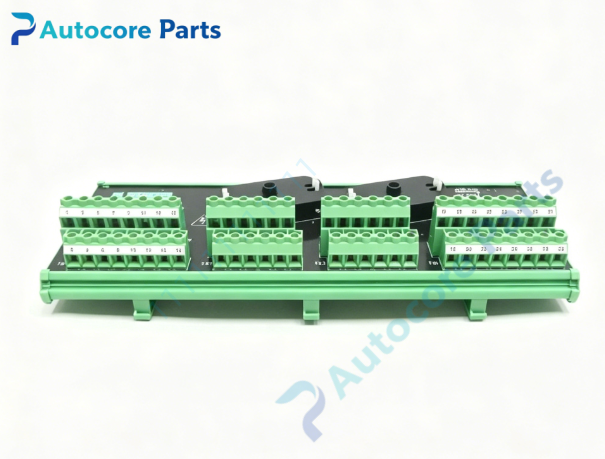

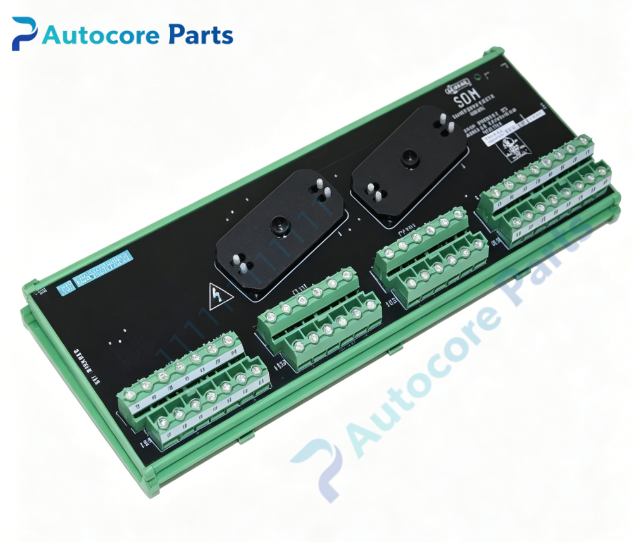

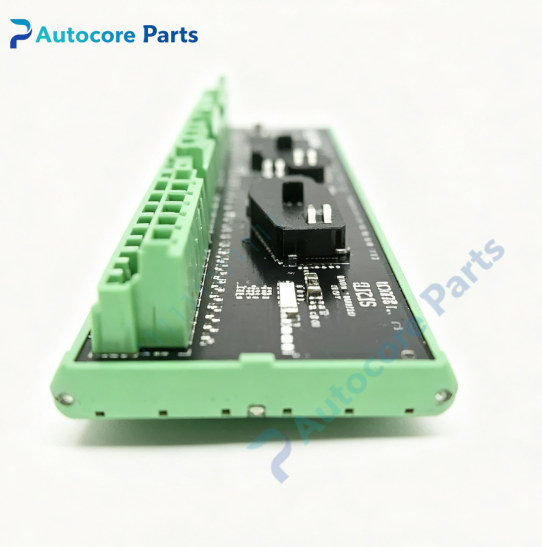

SIEMENS MOORE 16167-1-09 SDM Termination Assembly

Technical SpecificationsModel:16167-1-09 Brand:SIEMENS MOORE Product Type:SDM Marshalled Termination Assembly System:APACS+ DCS System Power Supply:24V DC Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:0.7kg Dimension:35mm102mm356mm

System compatibility16167-1-09 is compatible with SIEMENS MOORE APACS+ distributed control system. It is the matched marshalling termination assembly for SDM standard discrete I/O module, works together with discrete input/output cards for field signal wiring arrangement.

FunctionThis SDM termination assembly serves as signal marshalling terminal board for discrete I/O. It receives field digital switch signals and relay control signals, routes signals to SDM discrete module via ribbon cable. It provides screw terminals for easy field cable termination, isolates and organizes digital I/O wiring between field instruments and DCS I/O cards.

InstallationPower off the rack chassis before installation. Mount the termination assembly on cabinet rail. Connect ribbon cable between this MTA and SDM discrete module. Terminate field discrete cables to screw terminals following wiring drawing. Check wiring continuity after installation.

InterfaceScrew type field wiring terminals, ribbon cable connector to SDM discrete module, status LED indicators.

FeatureDedicated discrete signal marshalling board, convenient screw terminal wiring, signal isolation, simple maintenance, compact cabinet installation. Obsolete legacy spare part, used for APACS+ DCS discrete I/O wiring system replacement and maintenance.

DiagnosticSignal loss: check ribbon cable connection and screw terminal tightness. Short circuit: inspect field cable insulation and terminal wiring. LED abnormal: verify 24V DC power supply for termination board.

Product BriefSIEMENS MOORE 16167-1-09 is APACS+ series SDM marshalling termination assembly, widely used in petrochemical, power and pulp & paper industries for discrete digital signal wiring of DCS system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
