SIEMENS MOORE 16413 MBI/NMI Communication Interface Module

Technical SpecificationsModel:16413 Brand:SIEMENS MOORE Product Type:MBI/NMI MNET Communication Interface Module System:APACS+ / QUADLOG DCS System Power Supply:24V DC Mounting:Rack mount / PCI workstation card variant Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:0.7kg Dimension:35mm220mm235mm

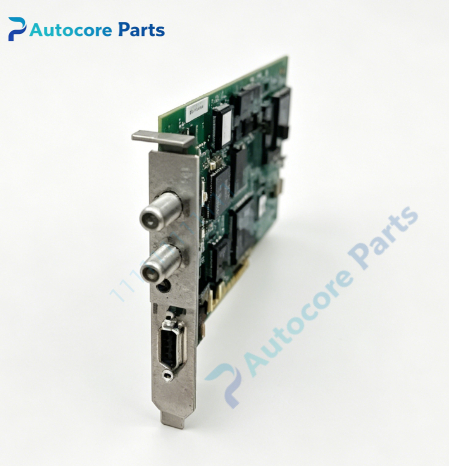

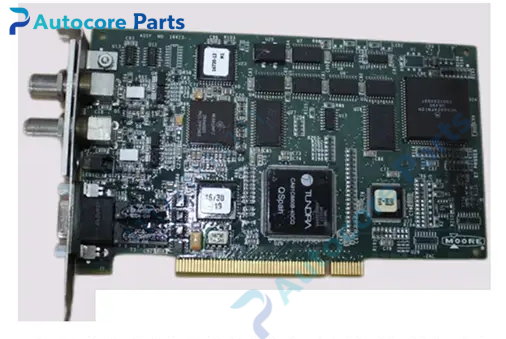

System compatibility16413 is compatible with SIEMENS MOORE APACS+ and QUADLOG distributed control system. It acts as the MNET network interface to realize data communication between engineering workstation and DCS controller rack.

FunctionThis MBI/NMI interface module implements APACS MNET bus protocol. It converts signals between workstation bus and DCS backplane bus, uploads real-time process data and downloads control configuration programs, supports online monitoring, parameter modification and system diagnosis for DCS controllers.

InstallationPower off rack or PC workstation before installation. Insert the module into designated rack slot or PCI slot, lock the board. Connect MNET communication cable, set station address, install driver and configuration software after power on.

InterfaceBackplane bus connector, MNET communication port, front LED status indicators.

FeatureSupport MBI Module Bus Interface and NMI Network Module Interface, high reliable MNET bus transmission, built-in communication fault diagnosis, isolated signal circuit. Obsolete legacy spare part, used for APACS+ DCS workstation communication replacement and maintenance.

DiagnosticNo power: check 24V DC power supply and backplane contact. Communication offline: verify MNET cable, terminal resistor and station address. Module fault: read diagnostic status via APACS engineering software, inspect front LED indicators.

Product BriefSIEMENS MOORE 16413 is APACS+ QUADLOG MNET MBI/NMI communication interface module, widely used in petrochemical, power and pulp & paper industries for DCS workstation and controller interconnection.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time 3-7 working days. It is only used for equipment maintenance and retrofit.
