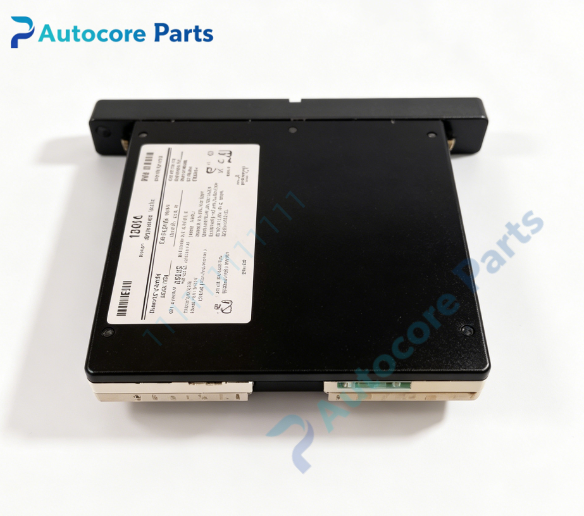

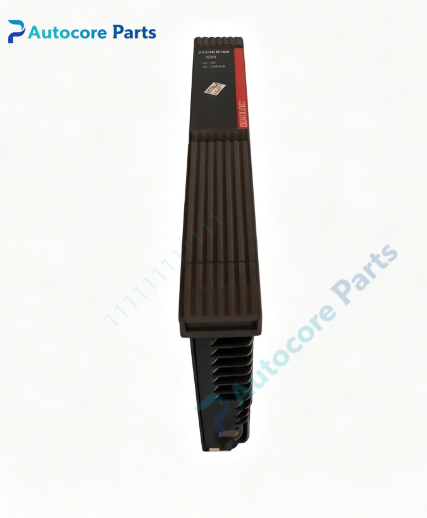

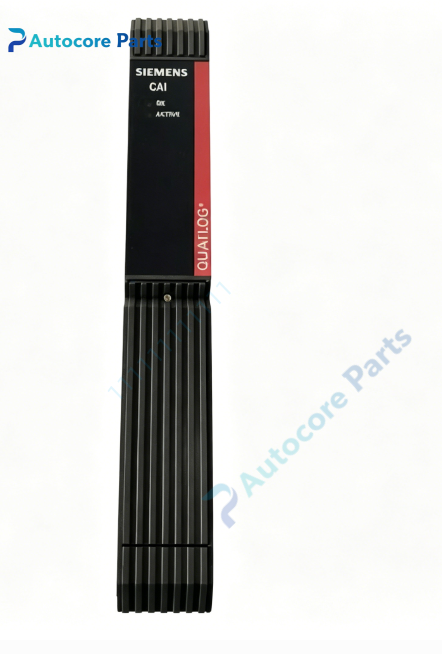

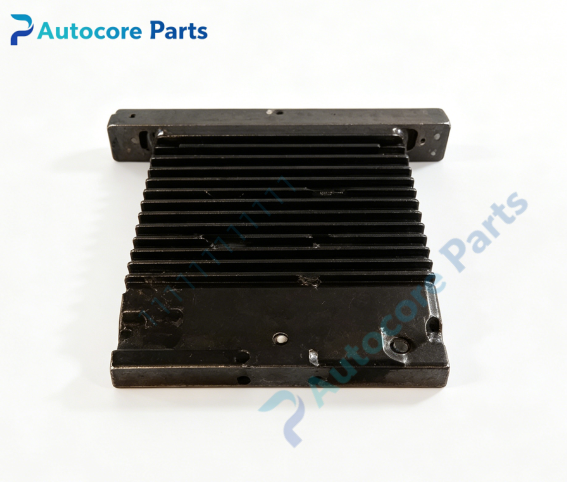

SIEMENS MOORE QLCAIAAN Analog Input Assembly

Technical SpecificationsModel:QLCAIAAN Brand:SIEMENS MOORE Product Type:AIA Analog Input Assembly System:QUADLOG / APACS+ DCS System Power Supply:24V DC Signal Type:4-20mA analog input Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:0.84kg Dimension:35mm220mm235mm

System compatibilityQLCAIAAN is compatible with SIEMENS MOORE QUADLOG safety DCS and APACS+ distributed control system. It can be installed in QUADLOG rack chassis, matched with QUADLOG safety controller QLCCM series for safety analog signal collection.

FunctionThis AIA analog input assembly receives 4-20mA analog signals from field transmitters, converts analog signals to digital data and transmits to safety controller via backplane bus. It collects pressure, temperature, flow and liquid level measurement signals for safety instrumented loops, supporting process monitoring and safety interlock judgment.

InstallationPower off the rack chassis before installation. Insert the module into designated rack slot and lock the front latch. Connect ribbon cable between module and marshalling termination board, wire field transmitters to terminal blocks. Configure channel range and safety parameters after power restoration.

InterfaceBackplane bus connector, ribbon cable port for marshalling termination assembly, front LED channel status indicators.

FeatureSafety rated analog input module, multi-channel isolated design, high signal resolution, built-in overrange detection and channel fault diagnosis, watchdog fault monitoring, suitable for safety-related continuous process plants. Obsolete legacy spare part, used for QUADLOG safety DCS analog input loop maintenance and replacement.

DiagnosticNo power: check rack 24V DC power supply and backplane contact. Channel no reading: inspect field instrument loop power, cable wiring and channel configuration parameters. Module fault: read diagnostic codes via QUADLOG engineering software, check front LED indicators.

Product BriefSIEMENS MOORE QLCAIAAN is QUADLOG series AIA safety analog input assembly, widely used in petrochemical, power and pulp & paper industries for safety instrumented system analog signal acquisition.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
