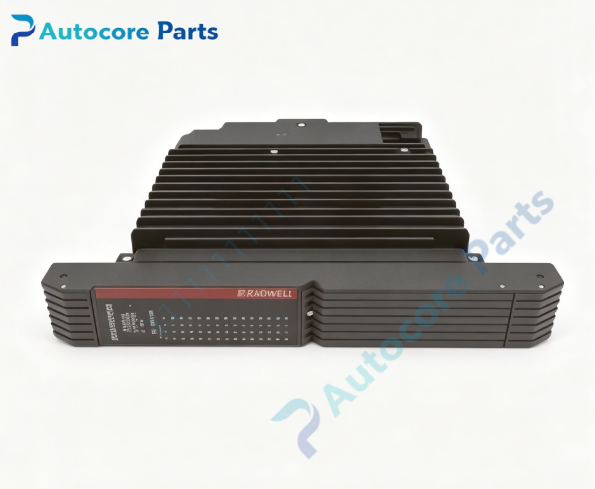

Siemens QLODM115ACBBN Discrete Output Module

Technical SpecificationsModel:QLODM115ACBBN Brand:Siemens Product Type:ODM Discrete Output Module System:QUADLOG Safety Instrumented System / APACS+ DCS System Power Supply:24V DC Field Output:115VAC, max 0.23A per channel Channel Count:32 channels Mounting:Rack mount Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Relative humidity:5%~95%, non-condensing Weight:2.48kg Dimension:40mm260mm310mm

System compatibilityQLODM115ACBBN belongs to Siemens Moore QUADLOG SIS series. It works with QLCCM safety controller and matching marshalling termination boards, used for 115VAC safety discrete output control, compatible with APACS+ DCS platform.

FunctionThis ODM discrete output module receives safety interlock commands from QUADLOG safety controller via backplane bus. It outputs 115VAC switching signals to control safety relays, solenoid valves and other safety field actuators. It supports per-channel circuit fault diagnosis, wire break and short-circuit detection, adopts safety de-energize-to-trip design, executes ESD protection action once safety threshold is breached.

InstallationPower off the rack chassis before installation. Insert the module into designated rack slot and lock the front latch. Connect ribbon cable between module and marshalling termination assembly, wire 115VAC field actuators to terminal assembly. Configure channel parameters and safety voting logic via QUADLOG engineering software after power on, complete SIF loop test before online operation.

InterfaceBackplane bus connector, ribbon cable port for marshalling board, front LED indicators for power, run, fault and each channel status.

FeatureQUADLOG dedicated 32-channel 115VAC safety discrete output module, per-channel line fault self-diagnosis, galvanic isolation, safety integrity design, Class I Division 2 hazardous area certification. Obsolete legacy spare part, used for QUADLOG SIS safety AC discrete output loop maintenance and replacement.

DiagnosticNo power: check rack 24V DC power supply and backplane contact. Channel no output: inspect field actuator wiring, coil continuity and loop short circuit. Module fault: read diagnostic codes via QUADLOG software, check wire break or short circuit alarm.

Product BriefSiemens QLODM115ACBBN is QUADLOG series ODM 115VAC safety discrete output module, widely used in petrochemical, power and pulp & paper industries for safety instrumented ESD safety relay and AC solenoid driving.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
