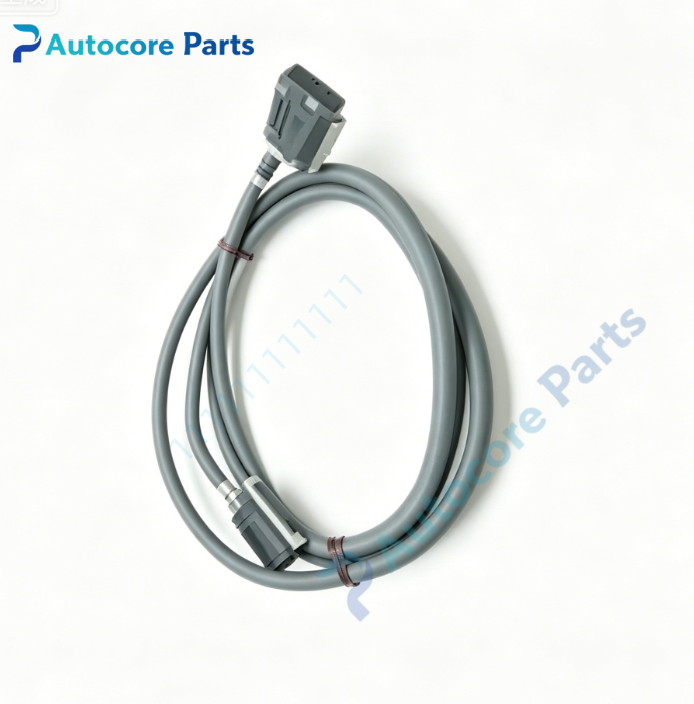

Woodward 5416-190 NetCon Serial I/O Cable

Technical Specifications

Model:5416-190

Brand:Woodward

Product type:NetCon serial I/O communication cable

Power supply:Not required

Control function:Serial signal transmission,controller and I/O module bus connection,signal isolation,noise suppression

Communication:NetCon serial bus

Mounting:Cabinet wiring

Operating temperature:-40~70℃

Relative humidity:5~95% non-condensing

Weight:0.23kg

Certification:CE,UL

System compatibility

5416-190 belongs to Woodward NetCon turbine control system family,matched with 505 / NetCon series controllers and I/O modules.Widely used in gas turbine,steam turbine and generator control cabinets.This is a discontinued legacy NetCon serial I/O cable for power unit maintenance spare replacement.

Function

5416-190 serves as high precision Woodward NetCon serial communication cable.It is used for connecting main governor controller and remote I/O modules,transmitting control command and acquisition data between master and slave stations.It adopts shielded wire structure to suppress electromagnetic interference and ensure stable bus communication in power plant environment.It acts as the core data transmission link of Woodward NetCon turbine control system.

Installation

Lay 5416-190 inside turbine control cabinet.Complete connector plugging according to wiring drawing.Check shielding grounding before power-on.

Interface

‑NetCon bus male & female connector

‑Shield grounding terminal

‑Twisted pair shielded cable

Circuit feature

Shielded twisted pair cable design,equipped with noise suppression and ESD suppression structure.Stable serial signal transmission,strong anti-interference performance for power plant cabinet environment.

Feature

5416-190 is obsolete Woodward series spare part.Typical failures include cable aging,connector contact poor,shielding damage,communication interruption.Check cable body and connector pins before replacement.This cable must match corresponding Woodward NetCon system,direct substitution without inspection is not recommended.

Diagnostic

When communication timeout,data loss or intermittent disconnection occurs,the cable triggers corresponding alarm signals and sends fault message to turbine control system.

Built‑in function

NetCon serial bus data transmission,controller to I/O module signal connection,electromagnetic noise shielding,used as Woodward NetCon series serial I/O communication cable spare replacement.

Product Brief

5416-190 is Woodward old NetCon series serial I/O communication cable for gas/steam turbine generator sets and power automation equipment.Confirm system model matching before ordering.ESD protection required during handling and installation.
