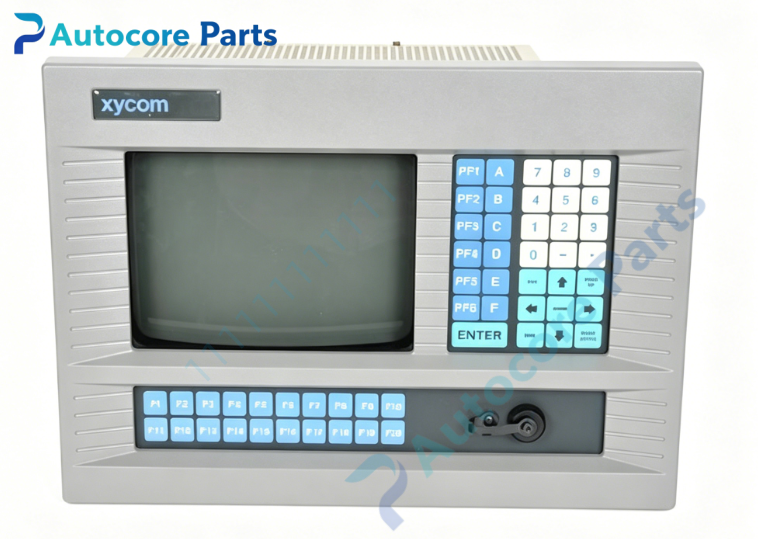

XYCOM 2005 Operator Terminal

Technical Specifications

Model:2005

Brand:XYCOM

Product type:Legacy Rack Mount Industrial Operator Terminal HMI

Power supply:90~250VAC,47~63Hz

Communication:RS232 / RS485 serial interface

Weight:3.1kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Dimension:19 inch rack mount standard size

Certification:CE,UL,Class I Division2

System compatibility

2005 belongs to XYCOM 2000 series legacy industrial operator terminal.

Communicate with XYCOM VME bus single board computer,such as XYCOM 1840.

Compatible with XVME series I/O and communication boards inside VME chassis.

Commonly used for turbine control,compressor unit,petrochemical and power plant old DCS monitoring system maintenance and spare replacement.

Function

Real-time display of process parameters,operating status and system alarm messages.

Membrane keypad for parameter modification,mode switch and manual operation command input.

Bidirectional serial data exchange with VME main controller.

Local visual alarm indication when process abnormal occurs.

Power-on self-test for hardware circuit detection.

Store simple alarm records and operation logs.

Support XYCOM dedicated terminal download software for screen project upload and download.

Installation

Install the unit into 19-inch cabinet rack and tighten the fixing screws.

Connect 90~250VAC power cable and protective earth wire.

Wire serial communication cable to VME controller serial port.

Power on and run hardware self-test,set serial baud rate and station address.

Download HMI project and verify keypad,display and communication function.

Interface

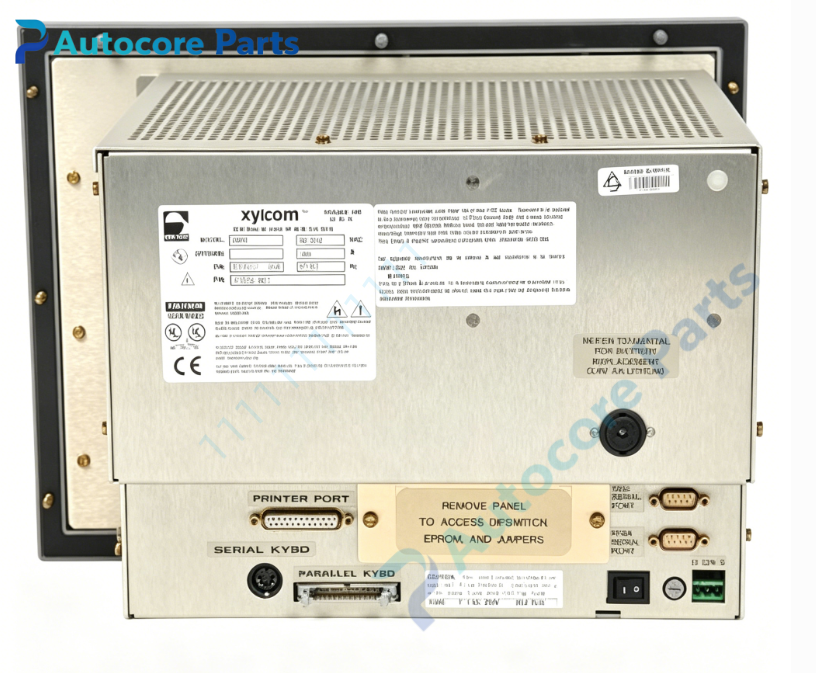

AC power terminal,RS232/RS485 serial port,front panel display,membrane keypad,LED indicators:PWR,COMM,ALARM.

Feature

Standard 19-inch rack installation,suitable for control cabinet layout.

Integrated display and industrial membrane keypad,dust and oil resistant for workshop environment.

Serial communication interface specially matched with XYCOM VME control platform.

Dedicated download tool for HMI screen program update.

Discontinued legacy product,only used for old production system maintenance spare replacement.

Industrial hardware design for long-time continuous operation.

Diagnostic

Check PWR and COMM LED;communication failure:check serial wiring,baud rate and station address;data abnormal:inspect serial port hardware and controller communication parameters.

Product Brief

XYCOM 2005 is legacy rack-mounted industrial operator terminal.

It cooperates with XYCOM VME bus control system to realize on-site data monitoring and manual operation,widely used as spare parts for turbine and petrochemical old control system renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
