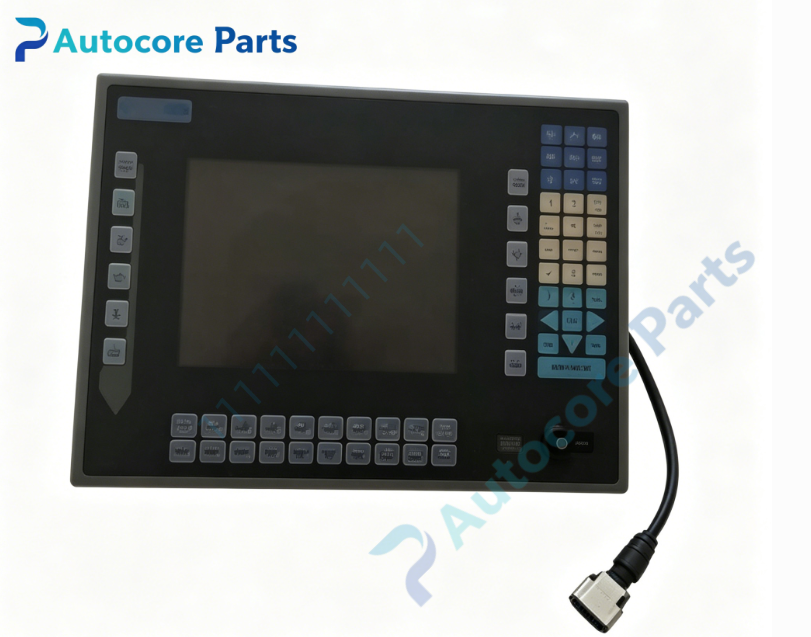

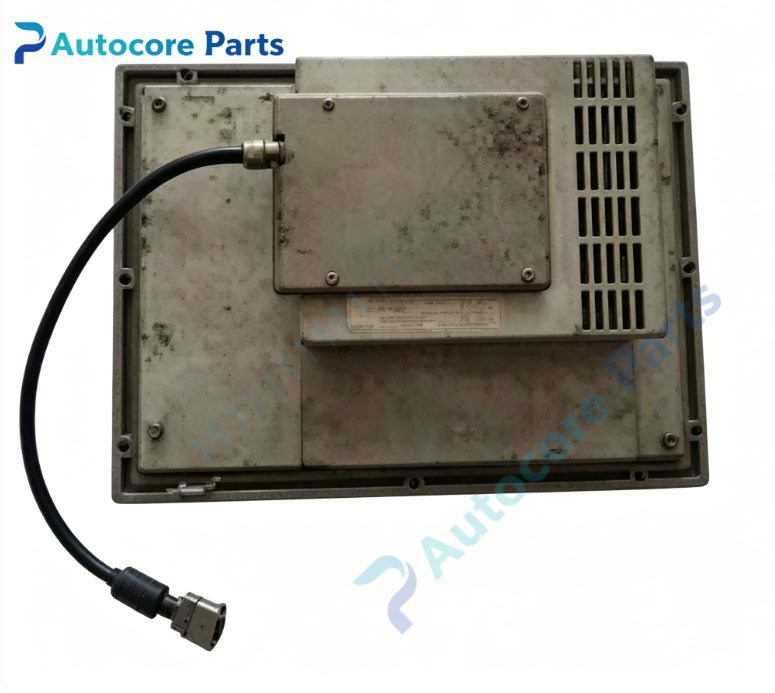

XYCOM 3410KP Flat Panel Industrial PC

Technical Specifications

Model:3410KP

Brand:XYCOM

Product type:Panel Mount Keypad Flat Panel Industrial PC

Power supply:90~250VAC auto-switching,47~63Hz

Display:10.4 inch color TFT LCD,640480 VGA

Input:63-position relegendable membrane function keypad

Processor:AMD 5X86 embedded CPU

Memory:Up to 64MB DRAM

Storage:HDD or flash storage optional

Communication:2RS232,1*RS485,10/100M Ethernet,parallel port,IRDA infrared port

Expansion:PC/104 expansion slot,support up to 2 expansion cards

Mounting:Panel cutout installation

Weight:6.0kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X/12

Certification:CE,UL

System compatibility

3410KP belongs to XYCOM 3400 series flat panel industrial PC.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via serial or ethernet communication.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Support MS-DOS,Windows95/98,Windows CE industrial operating system,run HMI monitoring program locally.

Real-time display process value,trend curve,alarm list and system running status.

63-key relegendable membrane keypad for setpoint adjustment,mode switching,alarm acknowledge and system reset.

Multiple communication ports for data exchange with VME controller,PLC and DCS host.

PC/104 expansion interface for additional functional module upgrade.

Built-in hardware watchdog timer and self-diagnosis function to detect hardware and communication fault.

Installation

Embed the panel into cabinet cutout and fasten mounting clips.

Connect 90~250VAC power cable and protective earth wire.

Wire serial or ethernet cable to VME SBC or DCS controller.

Power on,set BIOS parameters,IP address and serial communication parameters.

Install HMI software and project,test data reading and keypad operation.

Interface

AC power terminal,RS232,RS485,Ethernet,parallel port,IRDA port,membrane keypad,LCD display,LED indicators:RUN,COM,ALARM.

Feature

NEMA4/4X/12 sealed front panel,dust and splash resistance for industrial field environment.

10.4 inch VGA color LCD,63-key relegendable membrane keypad,support function/alpha numeric multi-mode switching.

PC/104 expansion design,convenient for adding custom communication or I/O modules.

Discontinued obsolete industrial panel PC,supply only for old production system spare replacement.

Rugged mechanical structure,shock and vibration resistance for continuous long-time operation.

Diagnostic

Check RUN,COM,ALARM LED;no display:check AC power supply and LCD backlight;communication lost:verify cable,baud rate or IP setting;keypad no response:inspect membrane keypad circuit and connector;system abnormal reset:check watchdog and hardware interference.

Product Brief

XYCOM 3410KP is legacy 10.4-inch panel mount keypad type flat panel industrial PC.

It serves as local HMI and monitoring workstation for turbine and compressor control system,widely used for spare replacement in petrochemical and power plant old DCS renovation.
