XYCOM 3515KPM Flat Panel Industrial PC

Technical Specifications

Model:3515KPM

Brand:XYCOM

Product type:Panel Mount Keypad Flat Panel Industrial PC

Power supply:90~250VAC auto-switching,47~63Hz

Display:15 inch color TFT LCD,1024768 XGA

Input:74-position relegendable membrane function keypad

Processor:Intel Celeron / Pentium III embedded CPU

Memory:Up to 512MB SDRAM

Storage:IDE HDD or flash storage optional

Communication:3RS232,10/100M Ethernet,2*USB,parallel port,VGA,PS/2

Expansion:6 expansion slots,3 ISA,2 PCI,1 shared ISA/PCI slot

Mounting:Panel cutout installation

Weight:7.5kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X/12,IP65

Certification:CE,UL,Class I Div 2

System compatibility

3515KPM belongs to XYCOM 3500 series flat panel industrial PC.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via serial or ethernet communication.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Support MS-DOS,Windows95/98,Windows NT,Windows 2000 industrial operating system,run HMI monitoring program locally.

Real-time display process value,trend curve,alarm list and system running status.

74-key relegendable membrane keypad for setpoint adjustment,mode switching,alarm acknowledge and system reset.

Multiple communication ports for data exchange with VME controller,PLC and DCS host.

6-slot mixed ISA/PCI expansion design,support multi-card installation for field function upgrade.

Built-in hardware watchdog timer and self-diagnosis function to detect hardware and communication fault.

Installation

Embed the panel into cabinet cutout and fasten mounting clips.

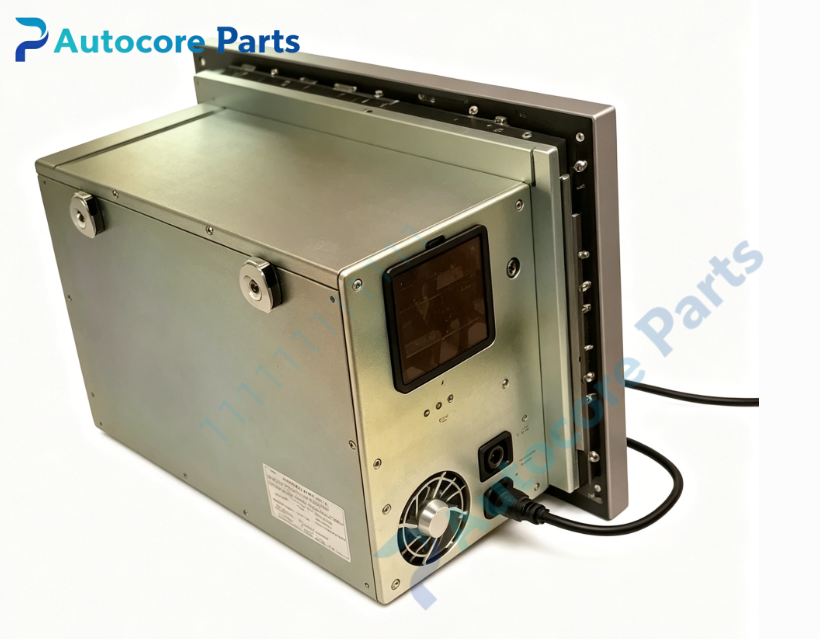

Connect 90~250VAC power cable and protective earth wire.

Wire serial or ethernet cable to VME SBC or DCS controller.

Power on,set BIOS parameters,IP address and serial communication parameters.

Install HMI software and project,test data reading and keypad operation.

Interface

AC power terminal,RS232,Ethernet,USB,parallel port,VGA,PS/2,membrane keypad,LCD display,LED indicators:RUN,COM,ALARM.

Feature

NEMA4/4X/12 sealed front panel,IP65 dust and splash resistance for industrial field environment.

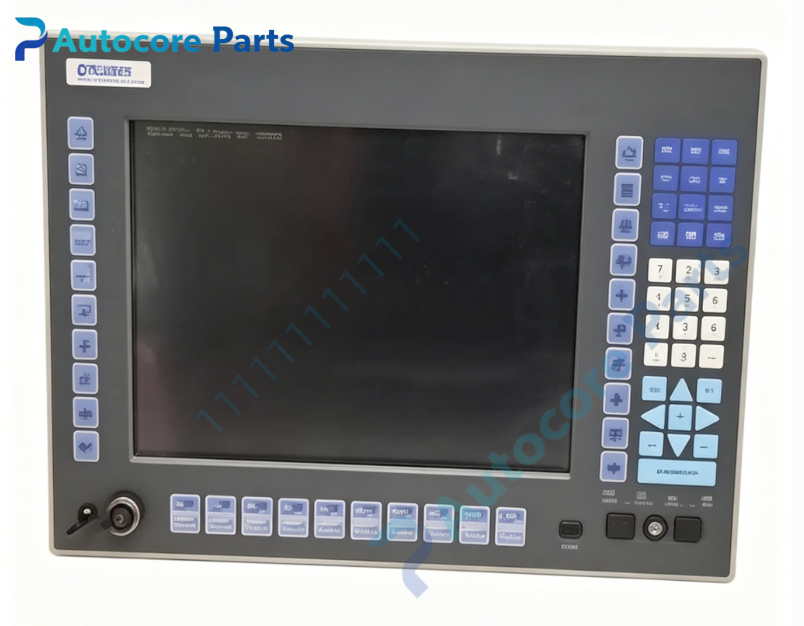

15-inch XGA high brightness color LCD,74-key customizable membrane keypad,suitable for frequent field operation.

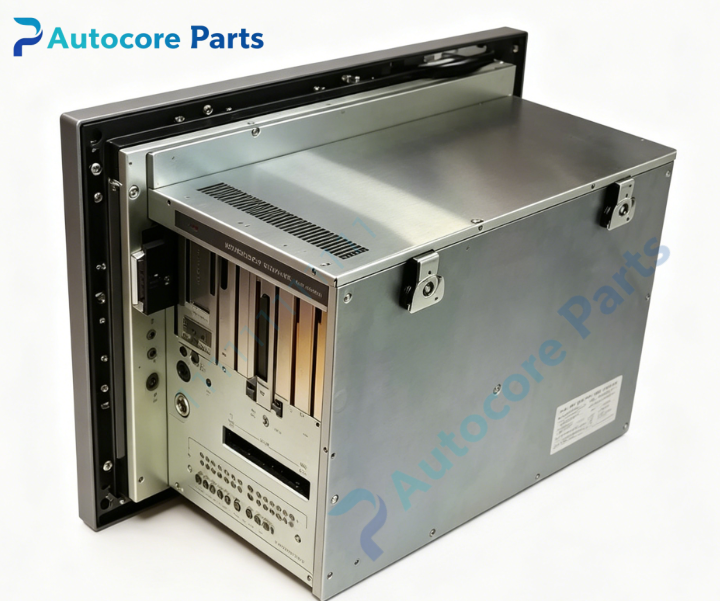

6-slot ISA/PCI hybrid expansion,great flexibility to add various industrial acquisition and communication boards.

Discontinued obsolete industrial panel PC,supply only for old production system spare replacement.

Rugged mechanical structure,shock and vibration resistance for continuous long-time operation.

Diagnostic

Check RUN,COM,ALARM LED;no display:check AC power supply and LCD backlight;communication lost:verify cable,baud rate or IP setting;keypad no response:inspect membrane keypad circuit and connector;system abnormal reset:check watchdog and hardware interference.

Product Brief

XYCOM 3515KPM is legacy 15-inch panel mount keypad type flat panel industrial PC.

It serves as local HMI and monitoring workstation for turbine and compressor control system,widely used for spare replacement in petrochemical and power plant old DCS renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
