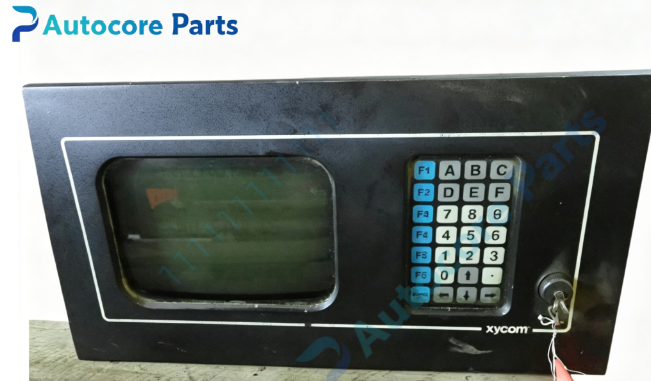

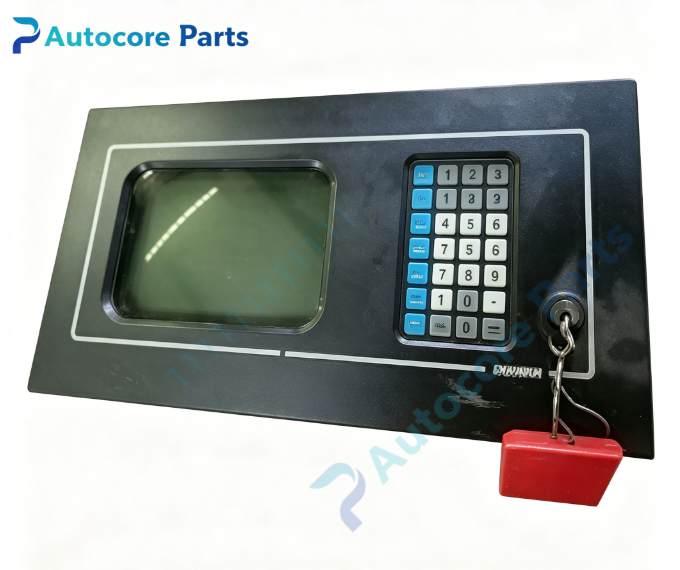

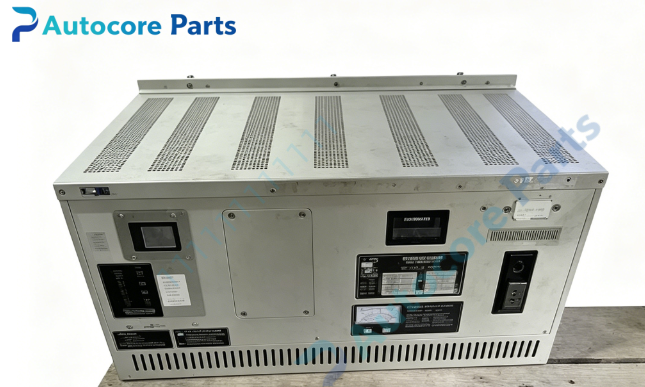

XYCOM 4800-E7 Operator Interface Terminal

Technical Specifications

Model:4800-E7

Brand:XYCOM

Product type:Heavy-duty Industrial Operator Interface Terminal

Power supply:100~240VAC auto-switching,50~60Hz

Display:14 inch CRT color display

Input:Relegendable industrial membrane function keypad

Processor:Intel 80386 embedded CPU

Memory:Up to 2MB RAM

Storage:Floppy disk drive,optional IDE hard disk

Communication:RS232 serial port,parallel printer port

Expansion:ISA bus expansion slots

Mounting:Panel / cabinet mount

Weight:32.0kg

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X

Certification:CE,UL

System compatibility

4800-E7 belongs to XYCOM 4800 series industrial operator terminal.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via serial communication.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Support MS-DOS operating system,run early industrial HMI and monitoring program locally.

Real-time display process parameter,trend data and system alarm information.

Membrane keypad for setpoint adjustment,mode switching,alarm acknowledge and system operation.

RS232 serial interface for data exchange with VME controller,PLC and DCS host.

ISA bus expansion slot to add custom communication and acquisition boards.

Built-in hardware watchdog timer and self-diagnosis function to detect hardware and communication fault.

Installation

Mount the terminal into equipment cabinet or panel cutout and fasten fixing brackets.

Connect 100~240VAC power cable and protective earth wire.

Wire RS232 serial cable to VME SBC or DCS controller.

Power on,set system parameters and serial communication parameters.

Install monitoring software and project,test data reading and keypad operation.

Interface

AC power terminal,RS232,parallel port,membrane keypad,CRT display,LED indicators:RUN,COM,ALARM.

Feature

NEMA4/4X sealed front panel,dust and splash resistance for harsh industrial field environment.

14-inch CRT color display,full membrane function keypad,suitable for long-term stable field operation.

Classic PC/AT industrial architecture,ISA expansion design for legacy system upgrade.

Discontinued obsolete industrial operator terminal,supply only for old production system spare replacement.

Rugged heavy-duty mechanical structure,shock and vibration resistance for continuous long-time operation.

Diagnostic

Check RUN,COM,ALARM LED;no display:check AC power supply and CRT display circuit;communication lost:verify serial cable,baud rate and address setting;keypad no response:inspect membrane keypad circuit and connector;system abnormal reset:check watchdog and hardware interference.

Product Brief

XYCOM 4800-E7 is legacy heavy-duty cabinet type industrial operator terminal.

It serves as local HMI and monitoring workstation for turbine and compressor control system,widely used for spare replacement in petrochemical and power plant old DCS renovation.
