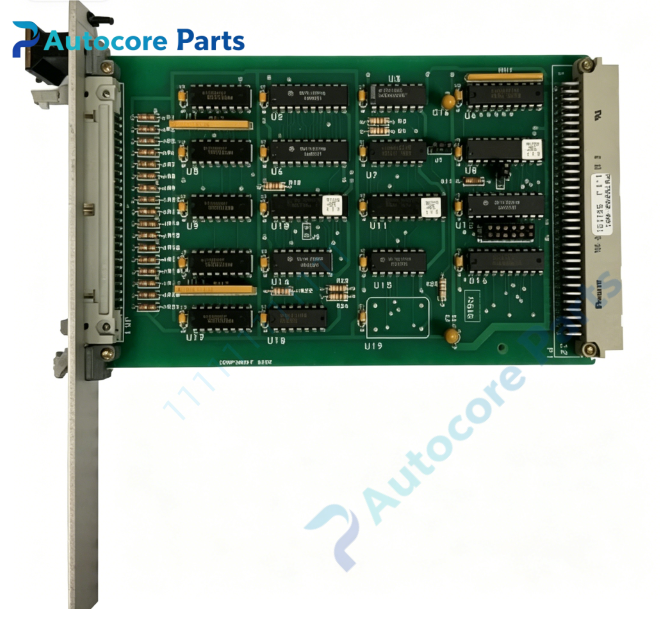

XYCOM XVME-202 PAMUX Controller Module

Technical Specifications

Model:XVME-202

Brand:XYCOM

Product type:VMEbus PAMUX Remote I/O Controller Module

Power supply:+5V VME backplane power

Bus interface:Standard VMEbus,slave communication,support VME interrupt

Form factor:Single-height VME card

Weight:0.33kg

Cable interface:50pin ribbon connector for PAMUX bus

Max I/O points:Up to 500 I/O points with daisy-chain PAMUX brain boards

Max transmission distance:152m(500 feet)

Compatible device:Opto22 PAMUX 4/5/6 series remote I/O brain board

Operating temperature:0℃ ~ +50℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

XVME-202 belongs to XYCOM XVME series PAMUX controller module.

It installs in XYCOM VME chassis and cooperates with XVME series CPU and I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via VME bus.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

Serve as VME rack interface controller for Opto22 PAMUX distributed remote I/O system.

Realize communication between VME main controller and daisy-chained remote PAMUX I/O brain boards.

Supports digital and analog signal collection and control output of remote field stations.

Support up to 500 I/O points expansion,remote I/O station can be placed far away from VME cabinet.

Transmit field I/O data and control commands between backplane and remote PAMUX bus.

Onboard self-test for PAMUX communication circuit,data bus and VME bus interface fault inspection.

Installation

Power off VME chassis.

Insert XVME-202 card into empty VME slot,tighten front panel fixing screw.

Connect 50pin flat ribbon cable to remote PAMUX I/O brain boards.

Power on chassis,run hardware self-test.

VME CPU scans bus,identifies the board and starts PAMUX remote I/O communication.

Interface

VME P1 backplane connector,50pin ribbon cable terminal for PAMUX bus,LED indicators:PASS,FAULT.

Feature

Single height VME PAMUX remote I/O controller,XYCOM XVME series.

Special interface for Opto22 PAMUX distributed I/O,daisy-chain wiring supported.

Long distance transmission up to 500 feet,suitable for scattered field sensors and actuators.

Built-in communication error detection and EMC protection,suppress field electromagnetic interference.

VME slave interface,easy plug-in installation.

Discontinued obsolete VME module,supply only for old production system spare replacement.

Vibration resistant PCB design,suitable for turbine control cabinet.

Diagnostic

FAULT LED on:PAMUX communication circuit damage or VME bus communication failure;

Cannot be identified by CPU:check VME backplane contact and address jumper setting;

Remote I/O no response:check ribbon cable wiring,terminal connection and PAMUX station power supply;

Intermittent signal loss:check cable shielding and grounding status.

Product Brief

XYCOM XVME-202 is legacy VMEbus PAMUX remote I/O controller module.

It acts as communication bridge between VME control rack and Opto22 PAMUX distributed remote I/O stations,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.
