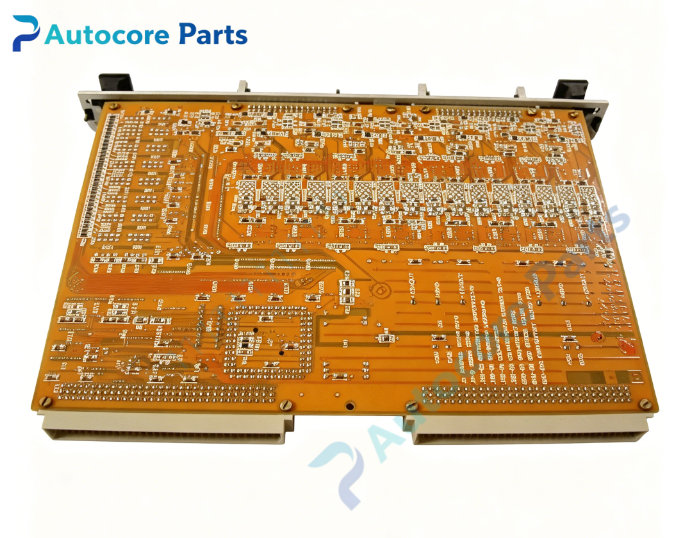

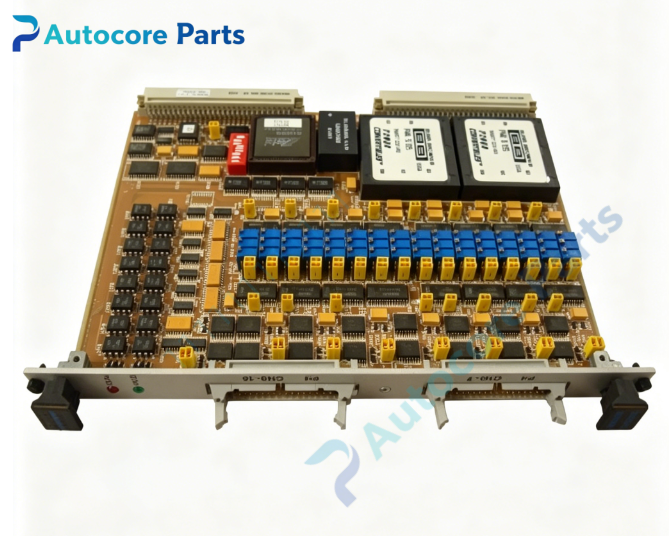

XYCOM XVME-531 Analog Output Module

Technical Specifications

Model:XVME-531

Brand:XYCOM

Product type:VMEbus 16 Channel Analog Output Module

Power supply:+5V VME backplane power

Bus interface:Standard VMEbus,slave communication,support VME interrupt

Form factor:Double-height 6U VME card

Weight:0.42kg

Resolution:12-bit D/A conversion

Channel quantity:16 independent analog output channels

Version distinction:XVME-531/1 voltage only; XVME-531/2 voltage + 4~20mA with 500V opto-isolation

Output range:Voltage 0~10V,±5V,±10V; Current 4~20mA (only /2 version)

Accuracy:Max total error ±0.5 LSB(voltage),±0.66 LSB(current)

Update mode:Single channel update or synchronous multi-channel update

Calibration:Adjustable offset and gain per channel

VME addressing:A16/D16 compatible,jumper selectable base address

Operating temperature:0℃ ~ +65℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

XVME-531 belongs to XYCOM XVME series high density analog output module.

It installs in XYCOM VME chassis and cooperates with XVME series CPU and I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via VME bus.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

High density analog control signal output for VME control rack.

16 independent 12-bit DAC channels,convert digital commands from VME CPU into analog voltage or 4~20mA current signals.

XVME-531/2 equipped with 500V optoelectronic isolation to block common-mode noise and ground loop interference between field side and VME backplane.

Each channel individually configurable for voltage or current output mode.

Synchronous multi-channel update for coordinated multi-valve or actuator control.

Support per-channel gain and offset calibration to guarantee output precision.

Transmit digital control data from VME backplane to analog front-end circuit.

Onboard self-test for DAC circuit,isolation circuit,analog output stage,data bus and VME bus interface fault inspection.

Installation

Power off VME chassis.

Insert XVME-531 card into empty double-height VME position,tighten front panel fixing screw.

Set base address and interrupt level via board jumpers.

Configure each channel for voltage or current mode.

Connect actuator/control valve wiring to front panel 50pin header.

Power on chassis,run hardware self-test.

VME CPU scans bus,identifies the board and starts analog output control.

Interface

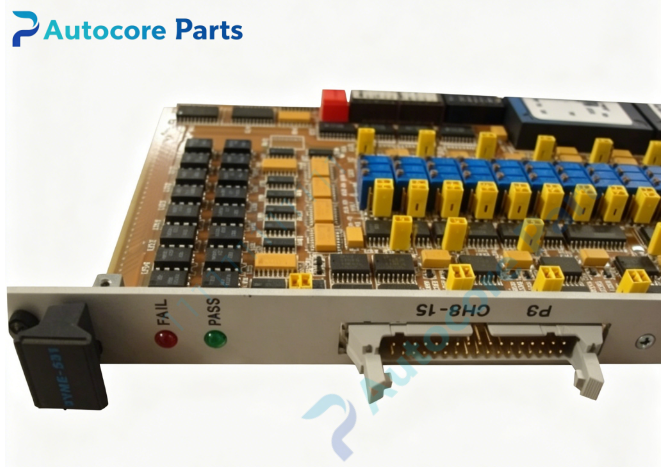

VME P1 backplane connector,front panel 50pin analog output header,LED indicators:PASS,FAULT.

Feature

Double height 6U VME high density 16-channel analog output board,XYCOM XVME series.

Two variants for selection,/2 version with 500V channel-to-bus opto-isolation.

12-bit high resolution DAC,monotonic output for closed-loop process regulation.

Support synchronous multi-channel update for simultaneous actuator adjustment.

Independent offset and gain calibration for each channel.

VME slave interface,easy plug-in installation.

Discontinued obsolete VME module,supply only for old production system spare replacement.

Vibration resistant PCB design,suitable for turbine control cabinet.

Diagnostic

FAULT LED on:DAC or analog front-end circuit damage,VME bus communication failure;

Cannot be identified by CPU:check VME backplane contact and base address jumper setting;

Output value drift:check load impedance,shield grounding and wiring resistance,recalibrate gain and offset;

No analog output:verify channel voltage/current jumper setting and field loop wiring continuity.

Product Brief

XYCOM XVME-531 is legacy VMEbus 16-channel 12-bit analog output module with optional 500V isolation.

It provides high-density analog regulation signals for multiple valves and actuators in VME control rack,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.

Disclaimer

All parameters are for reference only and not for quotation basis. Goods are scarce and will be powered on for inspection before shipment. Overseas delivery lead time 3-7 working days. This item is only used for equipment maintenance and retrofit.
