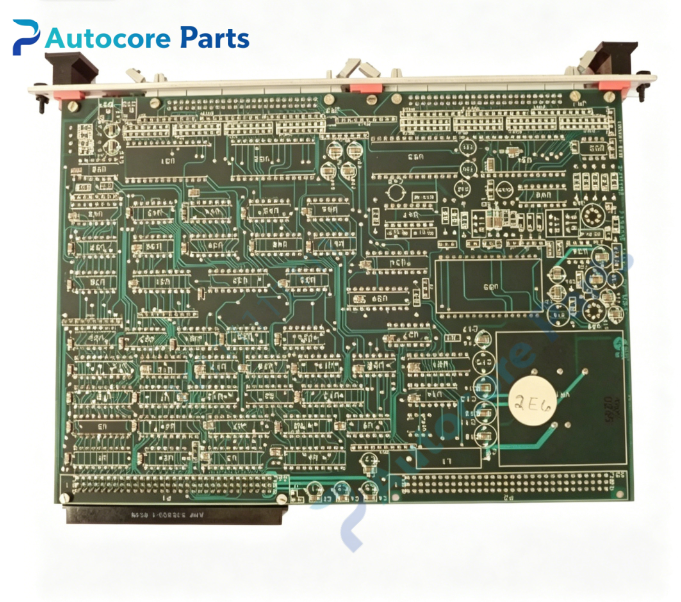

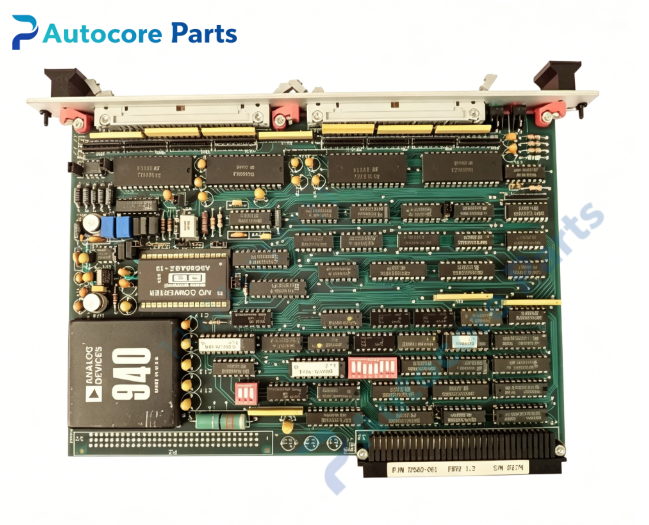

XYCOM XVME-560 Analog Input Module

Technical Specifications

Model:XVME-560

Brand:XYCOM

Product type:VMEbus High Density Analog Input Module

Power supply:+5V,+12V VME backplane power

Bus interface:Standard VMEbus,slave communication,support VME interrupt

Form factor:Double-height 6U VME card

Weight:0.44kg

Resolution:12-bit A/D conversion

Channel configuration:64 single-ended inputs or 32 differential inputs

Programmable gain:1,2,4,8 software selectable gain

Input voltage range:0~5V,0~10V,±2.5V,±5V,±10V

Max sampling rate:100kHz aggregate,50kHz per channel

Sampling mode:Random channel,sequential scan,single channel,external hardware trigger

VME addressing:A16/D16 compatible,jumper selectable base address

Operating temperature:0℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

XVME-560 belongs to XYCOM XVME series high-density analog acquisition module.

It installs in XYCOM VME chassis and cooperates with XVME series CPU and I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via VME bus.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

High density multi-channel analog signal collection for VME control rack.

12-bit high-speed ADC collects pressure,temperature,flow and displacement sensor signals.

Support two wiring modes:64 single-ended or 32 differential input,differential mode suppress common-mode interference and ground loop noise.

Software programmable gain and voltage range to adapt different transmitter output signals.

Multiple sampling trigger modes for flexible data acquisition scheduling.

Generate VME interrupt once A/D conversion finished to notify host CPU.

Transmit converted digital sampling data to VME main CPU over VME backplane.

Onboard self-test for ADC circuit,analog front-end,data bus and VME bus interface fault inspection.

Installation

Power off VME chassis.

Insert XVME-560 card into empty double-height VME position,tighten front panel fixing screw.

Set base address and interrupt level via board jumpers.

Select single-ended or differential channel wiring configuration.

Connect sensor analog wiring to front panel header.

Power on chassis,run hardware self-test.

VME CPU scans bus,identifies the board and starts analog signal acquisition.

Interface

VME P1 backplane connector,front panel analog input wiring header,LED indicators:PASS,FAULT.

Feature

Double height 6U VME high density analog input board,XYCOM XVME series.

Large channel capacity up to 64SE /32DI,suitable for multi-point process monitoring.

Software programmable gain and multiple voltage input ranges.

Four configurable sampling modes,including external hardware trigger.

Differential input design for strong anti-interference in harsh industrial field.

VME slave interface,easy plug-in installation.

Discontinued obsolete VME module,supply only for old production system spare replacement.

Vibration resistant PCB design,suitable for turbine control cabinet.

Diagnostic

FAULT LED on:ADC or analog front-end circuit damage,VME bus communication failure;

Cannot be identified by CPU:check VME backplane contact and base address jumper setting;

Reading unstable/jitter:check differential wiring,shield grounding and common-mode noise;

No sampling data:verify channel configuration,input signal amplitude and wiring continuity.

Product Brief

XYCOM XVME-560 is legacy VMEbus high-density 12-bit analog input module.

It provides multi-point analog signal acquisition for VME control rack,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.

Disclaimer

All parameters are for reference only and not for quotation basis. Goods are scarce and will be powered on for inspection before shipment. Overseas delivery lead time 3-7 working days. This item is only used for equipment maintenance and retrofit.
