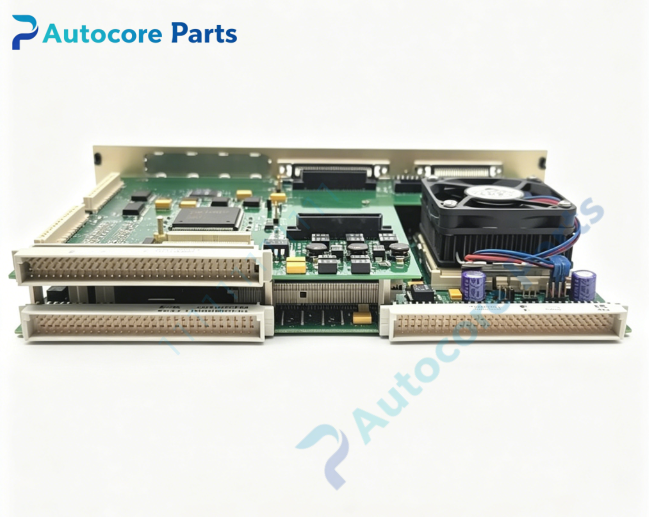

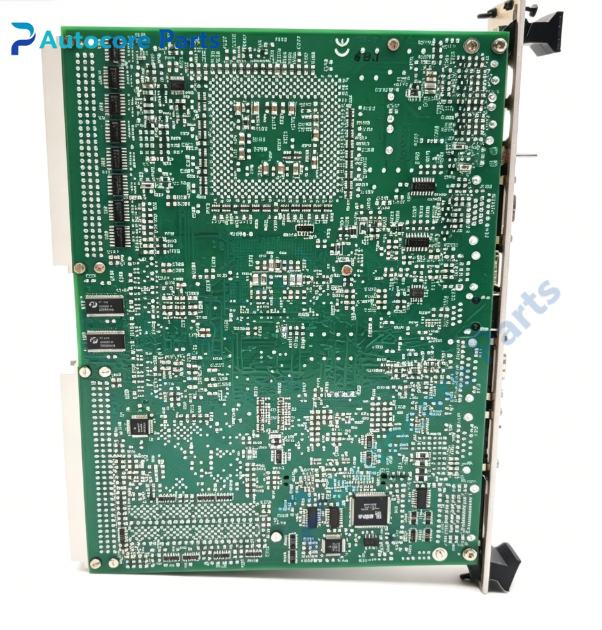

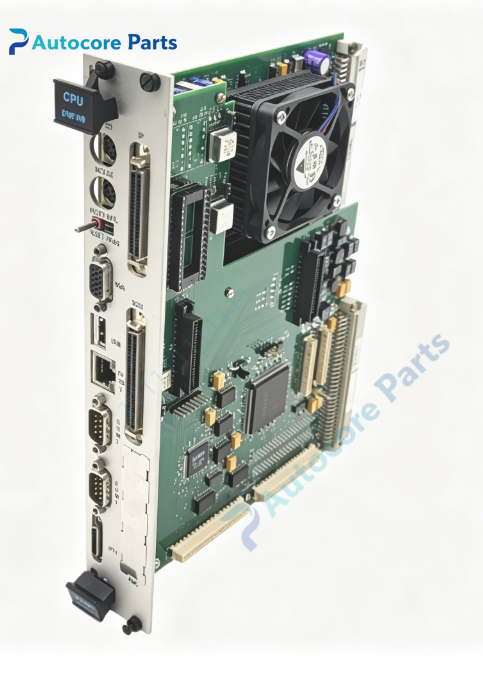

XYCOM XVME-660 Processor Module

Technical Specifications

Model:XVME-660

Brand:XYCOM

Product type:VMEbus Single Board Computer Processor Module

Power supply:+5V VME backplane power

Bus interface:Standard VMEbus,bus master & slave,support VME interrupt IRQ0~IRQ7

Form factor:6U single-height VME card

Weight:0.48kg

CPU:Intel Pentium III,700MHz

Memory:Single 144-pin SODIMM socket,max 256MB SDRAM

Storage:Onboard EIDE interface,support 2.5" HDD or CompactFlash

Expansion:One PMC mezzanine card site

Onboard communication:Dual 10/100Mbps Ethernet,2×RS232 serial port

Other onboard interfaces:Parallel port,PS/2 keyboard,mouse interface

VME addressing:A16/A24/A32,D08/D16/D32

Onboard indicator:FAIL,PASS LED;RESET switch

Operating temperature:0℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

XVME-660 belongs to XYCOM XVME series high-performance VME single board computer.

It installs in XYCOM VME chassis and cooperates with XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via VME bus.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

Act as main CPU controller of VME rack,run real-time operating system and complex process control programs.

Intel Pentium III 700MHz processor executes control logic,data calculation and signal processing tasks.

SODIMM socket supports SDRAM for program runtime data storage.

Onboard EIDE interface supports hard disk or CF card for system program and data storage.

PMC 扩展槽支持子卡扩展，可增加额外 I/O、通讯功能。

Dual 10/100 Ethernet ports and dual RS232 ports for field network and serial device communication.

Full VME bus master function,access all VME I/O modules on backplane,collect field sensor data and output control instructions.

Support VME bus arbitration,system reset and VME interrupt management.

Onboard self-test for CPU,memory,EIDE,serial,Ethernet,VME bus interface,fault state displayed via FAIL LED.

Installation

Power off VME chassis.

Insert XVME-660 card into empty 6U single-height VME slot,tighten front panel fixing screw.

Set base address,interrupt level via board jumpers.

Connect Ethernet,serial terminal or IDE/CF storage device wiring.

Power on chassis,run BIOS and hardware self-test.

The module acts as VME system master and initializes all rack I/O modules.

Interface

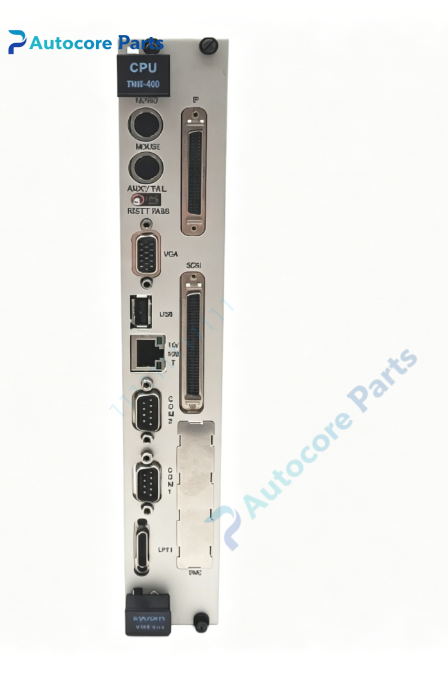

VME P1,P2 backplane connector,front panel RJ45,serial,PS/2 port,LED indicators and reset switch.

Feature

6U single slot VME single board computer,XYCOM XVME series.

Intel Pentium III 700MHz high performance industrial processor.

One PMC expansion site for flexible function expansion.

Dual 10/100 Ethernet for redundant network communication.

Support CompactFlash solid storage,improve reliability in vibration environment.

Full VME bus master capability,support 32-bit VME addressing and data transmission.

Discontinued obsolete VME module,supply only for old production system spare replacement.

Vibration resistant PCB design,suitable for turbine control cabinet.

Diagnostic

FAIL LED on:CPU fault,memory error,Ethernet/IDE failure or VME bus interface damage;

Cannot boot:check backplane contact,SODIMM memory,BIOS setting and storage media;

Network/serial communication failure:check wiring,IP address,baud rate and transceiver circuit;

VME bus access error:check bus arbitration and interrupt jumper configuration.

Product Brief

XYCOM XVME-660 is legacy VMEbus 6U single board computer based on Intel Pentium III 700MHz processor,with PMC expansion.

It serves as high-performance main controller for VME rack,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.

Disclaimer

All parameters are for reference only and not for quotation basis. Goods are scarce and will be powered on for inspection before shipment. Overseas delivery lead time 3-7 working days. This item is only used for equipment maintenance and retrofit.
