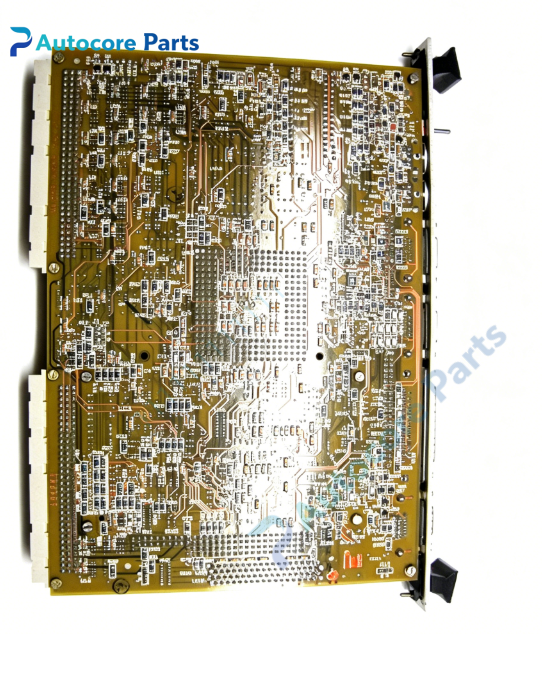

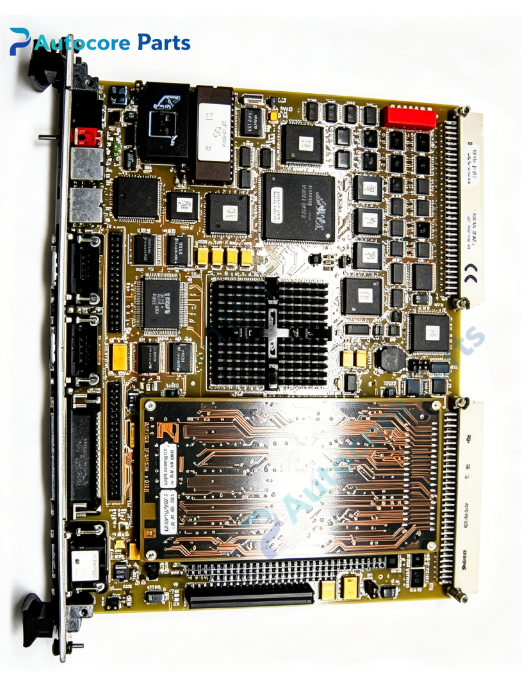

XYCOM XVME-675 Processor Module

Technical Specifications

Model:XVME-675

Brand:XYCOM

Product type:VMEbus PC/AT Compatible Single Board Computer Processor Module

Power supply:+5V,+12V,-12V VME backplane power

Bus interface:Standard VMEbus,bus master & slave,support VME interrupt IRQ0~IRQ7

Form factor:6U single-height VME card

Weight:0.92kg

CPU:Intel 80486DX4,100MHz,integrated FPU

Memory:16MB or 32MB dual-access DRAM;256KB EPROM firmware storage

Graphics:Super VGA controller,1MB video DRAM,max 1024×768 256-color

Storage:Onboard IDE controller,floppy disk controller,50pin SCSI interface

Expansion:PC104 expansion site

Onboard communication:2×RS232 serial port,1×parallel port,10BASE-T/10BASE2 Ethernet

Other onboard interfaces:PS/2 keyboard,mouse interface,hardware watchdog timer

VME addressing:A16/A24/A32,D08/D16/D32,programmable byte swap

Onboard indicator:FAIL,PASS LED;RESET switch

Operating temperature:0℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

XVME-675 belongs to XYCOM XVME series industrial VME single board computer.

It installs in XYCOM VME chassis and cooperates with XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via VME bus.

Commonly used for power plant,oil & gas,petrochemical old equipment maintenance and spare replacement.

Function

Act as controller of VME rack,runs legacy DOS/real-time operating system and process control programs.

Intel 80486DX4 100MHz processor executes control logic,data acquisition and floating-point calculation tasks.

Dual-access RAM supports high-speed shared data exchange between local CPU and VME backplane.

Integrated SVGA graphics for local HMI display and on-site monitoring.

Onboard IDE,floppy and SCSI controller for system program and mass data storage.

PC104 expansion site for adding extra I/O and communication modules.

Dual RS232,parallel port and Ethernet for field serial device and network communication.

Hardware watchdog timer automatically resets system if program crash occurs.

Full VME bus master function,access all VME I/O modules on backplane,read sensor data and output control commands.

Support VME bus arbitration,system reset and seven-level VME interrupt management.

Onboard self-test for CPU,memory,graphics,storage,serial circuit,VME bus interface,fault state displayed via FAIL LED.

Installation

Power off VME chassis.

Insert XVME-675 card into empty 6U single-height VME slot,tighten front panel fixing screw.

Set base address,interrupt level and memory configuration via board jumpers.

Connect VGA display,serial terminal,Ethernet or IDE/SCSI storage device wiring.

Power on chassis,run BIOS and hardware self-test.

The module initializes and communicates with all I/O modules in VME rack.

Interface

VME P1,P2 backplane connector,front panel VGA,serial,parallel,Ethernet port,LED indicators and reset switch.

Feature

6U single slot VME single board computer,XYCOM XVME series.

PC/AT compatible architecture,support legacy industrial operating systems.

Dual-access RAM for high speed VME shared memory data transmission.

Built-in Super VGA video controller with 1MB dedicated video memory.

PC104 expansion interface for flexible function expansion.

Hardware watchdog improves reliability for unattended industrial control.

Programmable byte swap,simplify big/little endian data conversion.

Full VME bus master capability,support 32-bit VME addressing and data transmission.

Discontinued obsolete VME module,supply only for old production system spare replacement.

Vibration resistant PCB design,suitable for turbine control cabinet.

Diagnostic

FAIL LED on:CPU fault,memory error,graphics/storage failure or VME bus interface damage;

Cannot boot:check backplane contact,DRAM,BIOS setting and storage media;

Serial/network communication failure:check wiring,baud rate,IP address and transceiver circuit;

VME bus access error:check bus arbitration and interrupt jumper configuration.

Product Brief

XYCOM XVME-675 is legacy VMEbus 6U single board computer based on Intel 80486DX4 100MHz processor with PC/AT compatible architecture.

It serves as controller for VME rack,widely used as spare part for turbine and compressor control,petrochemical and power plant old DCS renovation.

Disclaimer

All parameters are for reference only and not for quotation basis. Goods are scarce and will be powered on for inspection before shipment. Overseas delivery lead time 3-7 working days. This item is only used for equipment maintenance and retrofit.
