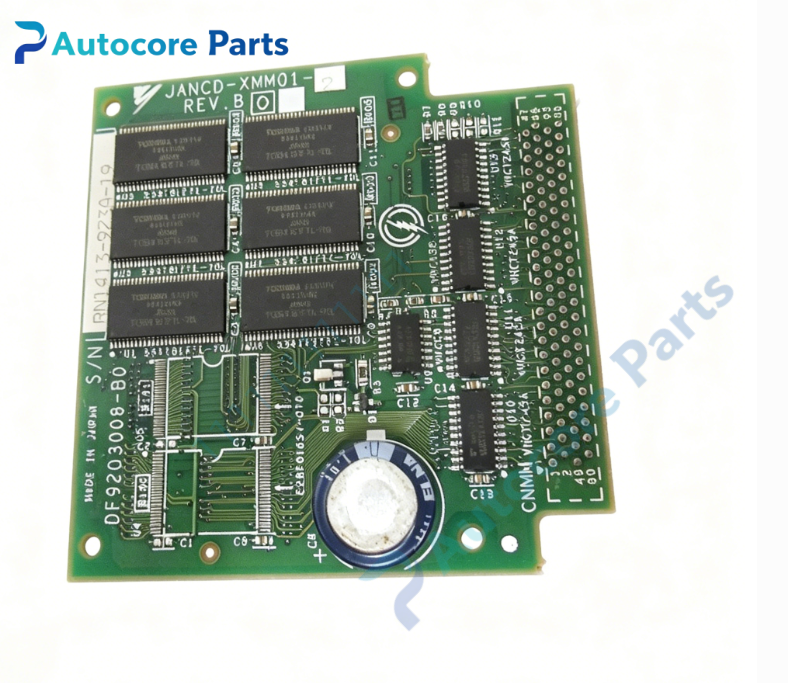

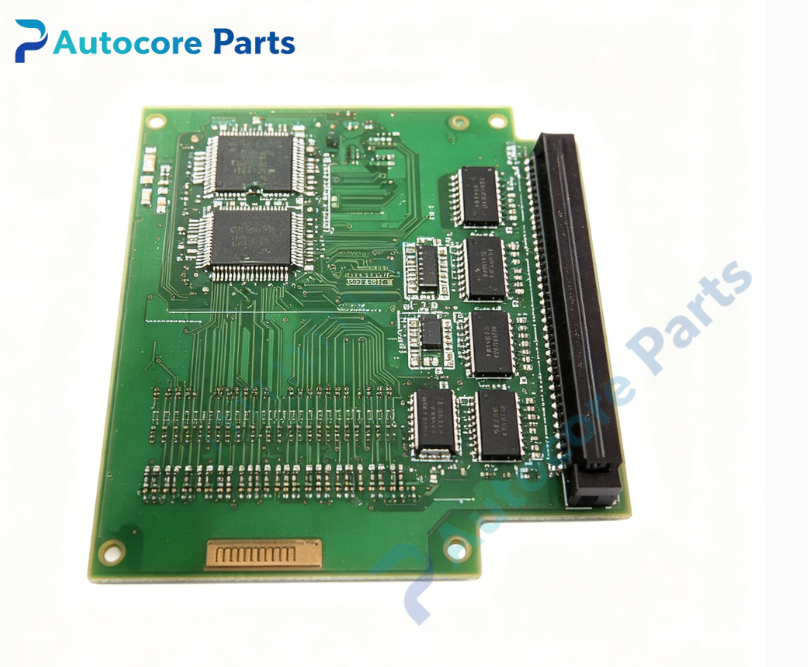

Yaskawa DF9203008-B0 Base Unit

Technical Specifications

Model:DF9203008-B0 (JANCD-XMM01-2)

Brand:Yaskawa

Product type:Motion controller rack base unit

Power supply:DC24V

Control function:System backplane bus routing,multi-card slot mounting interface,internal power distribution for plug-in modules

Communication:Parallel backplane bus

Mounting:Rack mount

Operating temperature:0~55℃

Relative humidity:5~95% non-condensing

Weight:0.55kg

Certification:CE

System compatibility

DF9203008-B0 belongs to Yaskawa MP series machine controller family,matched with MP controller system and corresponding plug-in functional boards. Widely used in CNC machine tools,handling automation equipment. This is a discontinued legacy rack base unit for old equipment maintenance spare replacement.

Function

DF9203008-B0 serves as high precision motion controller rack base unit. It supplies physical installation slots and backplane bus signal routing for CPU, power supply and each functional board. It distributes DC power supply to each plug-in module inside the rack. Built-in power and signal protection traces. It realizes stable power supply and reliable bus data exchange between all internal boards.

Installation

Mount DF9203008-B0 on the controller cabinet frame. Confirm slot connector alignment before inserting PCB modules, inspect power pin definition before power-up. Lock each functional board into corresponding slot. Verify bus communication and power status after power on.

Interface

‑Multiple card slot connectors

‑System main power input terminal

‑Backplane bus signal traces

‑Onboard power distribution and signal protection circuit

Circuit feature

Compact rugged PCB layout,equipped with surge and ESD suppression circuit. Stable bus signal transmission,strong anti-interference performance for industrial cabinet environment.

Feature

DF9203008-B0 is obsolete Yaskawa MP series spare part. Typical failures include slot connector pin oxidation,power track open circuit,bus signal attenuation. Check board integrity and pin condition before replacement. This base unit must match corresponding Yaskawa MP controller,direct substitution without full slot inspection is not recommended.

Diagnostic

When power supply abnormality,bus communication interruption or slot contact failure occurs,the board triggers corresponding alarm codes and sends fault signal to system controller.

Built‑in function

Multi-slot backplane signal routing,system power distribution for plug-in boards,bus signal transmission,power overcurrent protection,used as motion controller rack base unit spare replacement.

Product Brief

DF9203008-B0 (JANCD-XMM01-2) is Yaskawa MP machine controller series rack base unit for CNC machine tools and precision automation machinery. Confirm controller model matching before ordering. ESD protection required during handling and installation.
