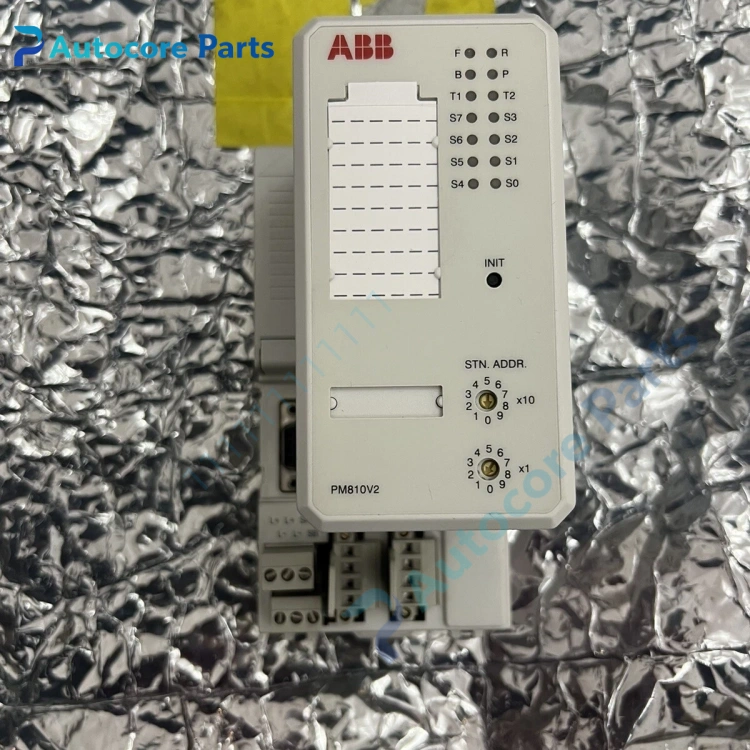

3BSE013220R1 PM810V2 Processor Module Unit

Feature & Principle

It is the core processing unit of AC70 controller. It runs user control programs, collects data from S800 I/O modules, communicates with upper HMI and monitoring system, and completes sequence control, interlock and data record for industrial process.

Specifications

Model: 3BSE013220R1 (PM810V2) Brand: ABB Series: S800 Application: Advant Controller 70 Mounting: Rack plug-in module Certification: CE

Components & Diagnostics

Main processing chip, memory chip, backplane interface, status indicator LED, battery holder. Common faults: program loss, backplane communication failure, battery failure, boot abnormality.

Product Brief

3BSE013220R1 processor module, ABB DCS spare widely used for power plant, pulp & paper and chemical industry AC70 control cabinet maintenance.
