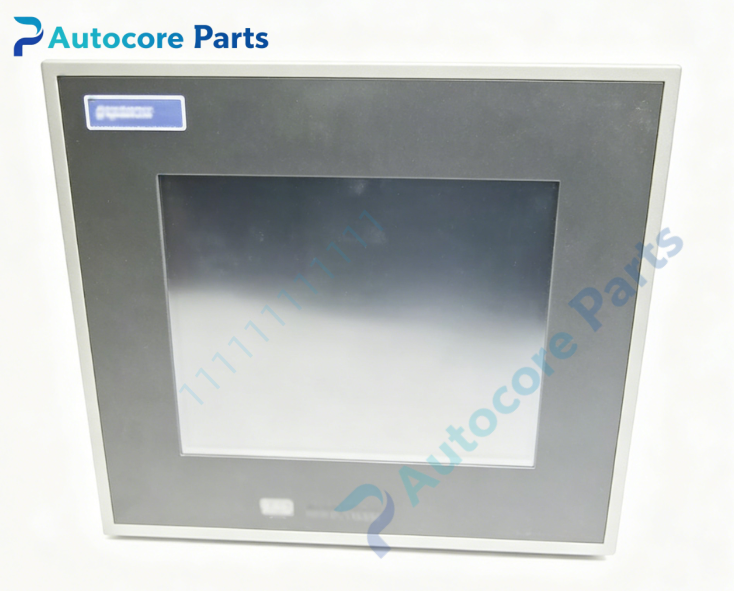

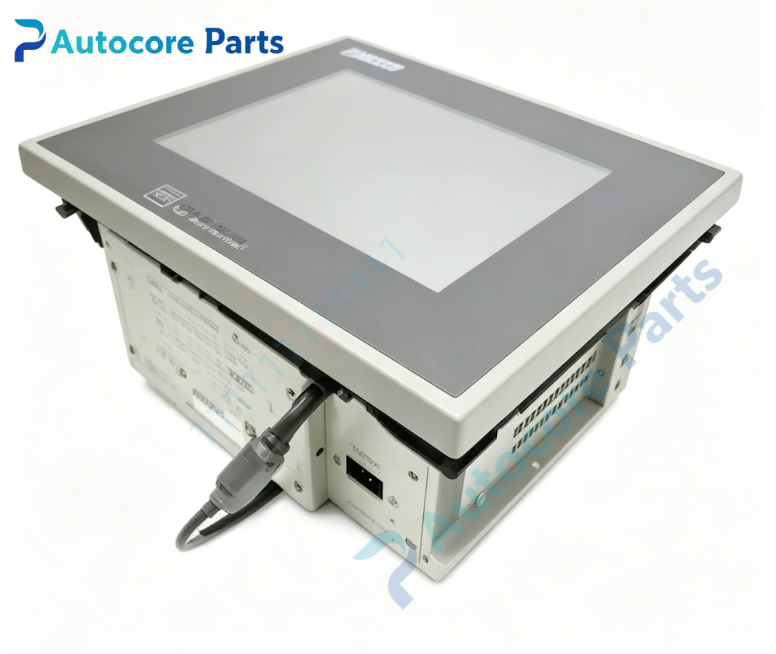

XYCOM 9460 Flat Panel Industrial Computer

Technical Specifications

Model:9460

Brand:XYCOM

Product type:10.4 Inch Panel Mount Flat Panel Industrial PC

Power supply:100~240VAC,50/60Hz

Display:10.4 inch LCD,optional STN passive color or TFT active matrix color,800600 resolution,with impact protective shield

Processor:PC/AT compatible CPU

Memory:SIMM DRAM,max configurable capacity

Storage:IDE hard disk,optional front 1.44MB floppy drive

Communication:2RS232 COM ports,optional 10/100M Ethernet,LPT,PS/2

Expansion:Passive backplane,ISA/PCI mixed slots

Input:Optional 5-wire resistive touchscreen,9460KP version with sealed membrane keypad

Weight:12.7kg

Mounting:Panel mount

Operating temperature:0℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X/12,IP65 sealed

Certification:CE,UL,Class I Division2

System compatibility

9460 belongs to XYCOM 9400 series flat panel industrial PC.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via serial or ethernet.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Support MS-DOS,Windows95/98/NT/2000 operating system and SoftScreen HMI software.

Real-time display process values,bar graphs,trend curves and system alarm messages.

Touchscreen or membrane keypad for parameter modification,mode selection and manual operation.

Modular internal structure,easy access to expansion boards,storage and power supply for maintenance.

Hardware watchdog timer,prevent system crash under continuous long-time running.

Power-on self-test for CPU,memory,disk and peripheral hardware fault detection.

ISA/PCI expansion slots to install communication or data acquisition boards for function upgrade.

Installation

Embed the unit into cabinet panel cutout and lock mounting brackets.

Connect 100~240VAC power cable and protective earth wire.

Wire serial or ethernet cable to VME controller or DCS host.

Power on,enter BIOS to adjust hardware parameters.

Install OS and HMI project,test display,touch/keypad and communication function.

Interface

AC power terminal,COM1/COM2 RS232 port,optional RJ45 ethernet,LPT port,PS/2 port,front floppy bay,10.4 inch LCD display,touchscreen or membrane keypad,LED indicators:PWR,HDD,STATUS.

Feature

Compact flat panel design,replace older CRT workstations for cabinet upgrade.

Sealed NEMA4/4X/12 front panel,dust and splash resistant for factory harsh environment.

Modular chassis,convenient for on-site maintenance and component swap.

Two display options:STN or TFT LCD,protective shield for screen anti-shock.

Support legacy operating systems,compatible with old turbine monitoring application software.

Discontinued legacy industrial panel PC,supply only for old production system spare replacement.

Metal rugged enclosure,shock and vibration resistance for continuous 24h operation.

Diagnostic

Check PWR and HDD LED;boot failure:check memory module,hard disk and power supply;communication fault:verify serial/ethernet wiring,baud rate or IP setting;display abnormal:inspect LCD panel,contrast adjustment and video circuit.

Product Brief

XYCOM 9460 is 9400 series 10.4 inch sealed flat panel industrial PC.

It is used as local HMI monitoring workstation for legacy turbine and compressor control system,realizes process data display and manual operation,widely applied to spare replacement for petrochemical and power plant old DCS renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
