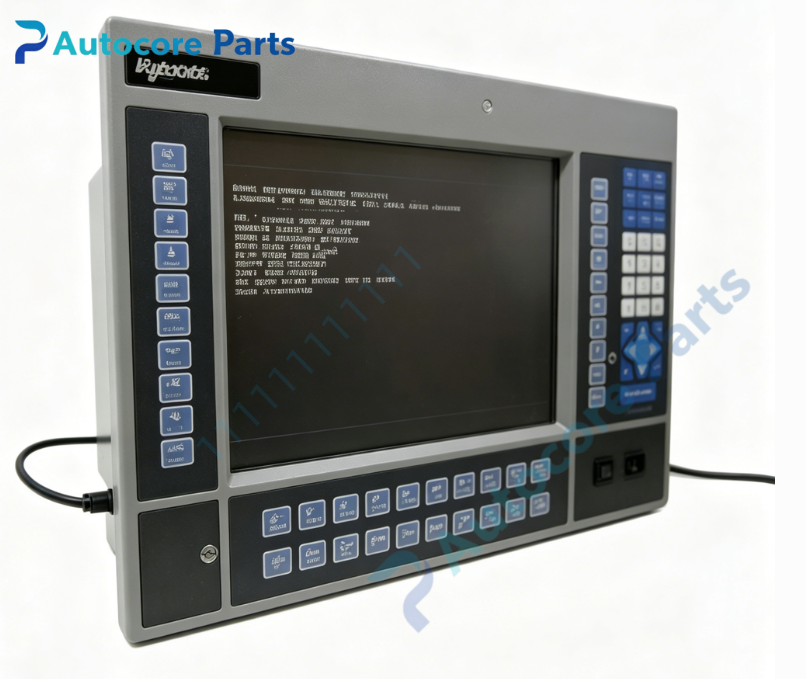

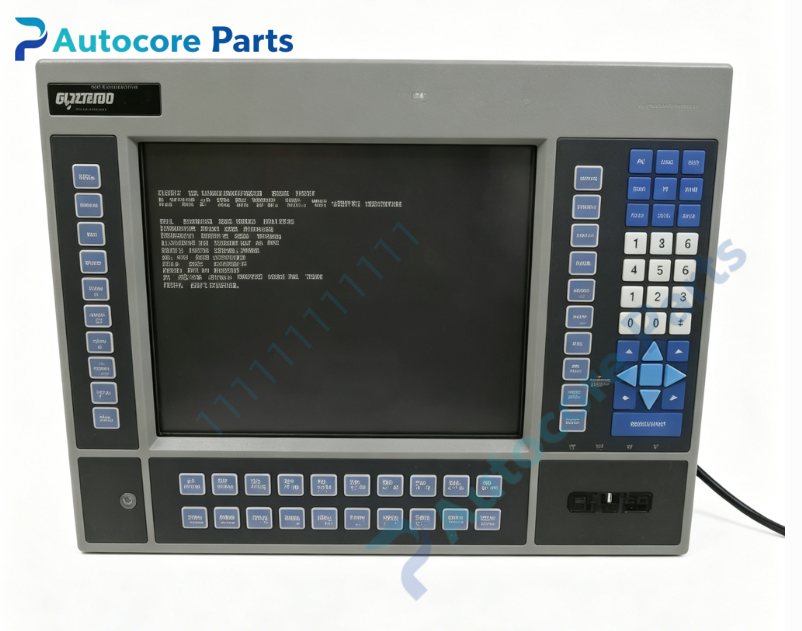

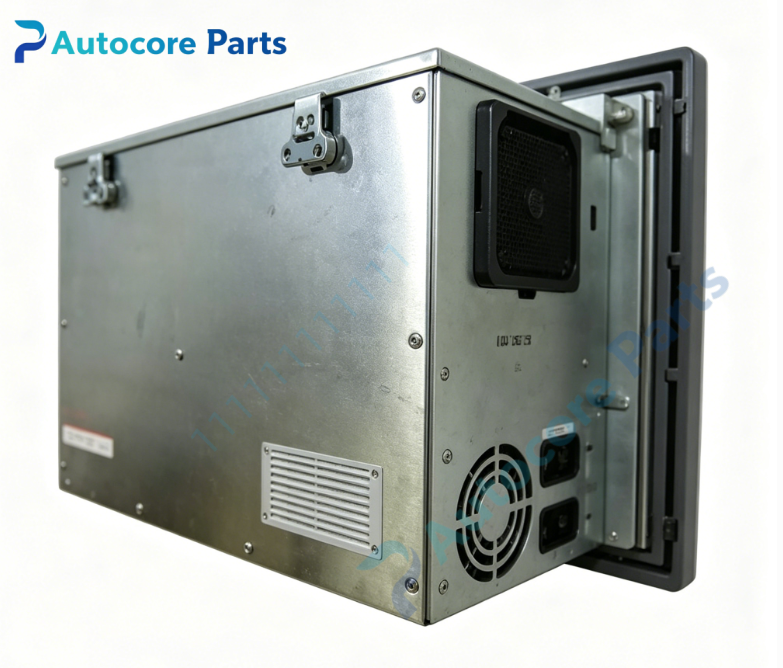

XYCOM 9465 Flat Panel Industrial Computer

Technical Specifications

Model:9465

Brand:XYCOM

Product type:15 Inch Panel Mount Flat Panel Industrial PC

Power supply:115/230VAC auto-switching,50/60Hz

Display:15 inch XGA LCD,optional STN passive color or TFT active matrix color,1024768 resolution,with impact protective shield

Processor:Intel Pentium / Celeron PC/AT compatible CPU

Memory:Max 512MB DRAM

Storage:IDE hard disk,side-access 3.5 inch floppy drive

Graphics:XGA video controller

Communication:2RS232 COM ports,PCI 10/100 BaseT Ethernet,LPT,PS/2,IrDA infrared port

Expansion:6 full-length AT bus slots,4 ISA +1 ISA/PCI shared +1 PCI slot

Input:Optional 5-wire resistive touchscreen,9465KPM variant with sealed membrane function keypad

Mounting:Panel mount or 19-inch rack mount,9-inch mounting depth

Weight:14.5kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X/12,IP65 sealed after correct installation

Certification:CE,UL,Class I Division2

System compatibility

9465 belongs to XYCOM 9400 series flat panel industrial PC.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via serial or ethernet.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Support MS-DOS,Windows95/98/NT/2000 operating system and XYCOM SoftScreen HMI software.

Real-time display process values,bar graphs,trend curves and system alarm messages.

Touchscreen or membrane keypad(for KPM version) for parameter modification,mode selection and manual operation.

Built-in IrDA infrared port,support wireless data transmission with compatible devices.

Hardware watchdog timer,prevent system crash under continuous long-time running.

Power-on self-test for CPU,memory,disk and peripheral hardware fault detection.

ISA/PCI expansion slots to install communication or data acquisition boards for function upgrade.

Installation

Embed the unit into cabinet panel cutout and lock mounting brackets.

Connect 115/230VAC power cable and protective earth wire.

Wire serial or ethernet cable to VME controller or DCS host.

Power on,enter BIOS to adjust hardware parameters.

Install OS and HMI project,test display,touch/keypad and communication function.

Interface

AC power terminal,COM1/COM2 RS232 port,10/100M RJ45 ethernet,LPT port,PS/2 port,IrDA infrared window,side floppy bay,15 inch LCD display,touchscreen or membrane keypad,LED indicators:PWR,HDD,COM,INPUT.

Feature

15-inch XGA large flat panel design,replace old CRT workstations for cabinet upgrade.

Sealed NEMA4/4X/12 front panel,dust and splash resistant for factory harsh environment.

6 full-length expansion slots,rich ISA and PCI board compatibility.

Optional STN/TFT two display types with impact protective shield.

Equipped with IrDA infrared communication interface for wireless data exchange.

Support legacy operating systems,compatible with old turbine monitoring application software.

Discontinued legacy industrial panel PC,supply only for old production system spare replacement.

Metal rugged enclosure,shock and vibration resistance for continuous 24h operation.

Diagnostic

Check PWR,HDD,COM,INPUT LED;boot failure:check memory module,hard disk and power supply;communication fault:verify serial/ethernet wiring,baud rate or IP setting;display abnormal:inspect LCD panel,contrast adjustment and video circuit.

Product Brief

XYCOM 9465 is 9400 series 15 inch sealed flat panel industrial PC.

It is used as local HMI monitoring workstation for legacy turbine and compressor control system,realizes process data display and manual operation,widely applied to spare replacement for petrochemical and power plant old DCS renovation.
