XYCOM 9485 Flat Panel Industrial Computer

Technical Specifications

Model:9485

Brand:XYCOM

Product type:18.1 Inch Panel Mount Flat Panel Industrial PC

Power supply:115/230VAC auto-switching,50/60Hz

Display:18.1 inch XGA TFT LCD,1024768 resolution,with impact protective shield

Processor:Intel Pentium / Celeron PC/AT compatible CPU

Memory:Max 512MB DRAM

Storage:IDE hard disk,optional front 1.44MB floppy drive

Graphics:XGA video controller

Communication:2RS232 COM ports,PCI 10/100 BaseT Ethernet,LPT,PS/2

Expansion:7 full-length AT backplane slots,mixed ISA + PCI

Input:Optional 5-wire resistive touchscreen,membrane keypad variant available

Mounting:Panel mount,deep chassis design

Weight:18.2kg

Operating temperature:0℃ ~ +55℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Front panel:NEMA4/4X/12,IP65 sealed after correct installation

Certification:CE,UL,Class I Division2

System compatibility

9485 belongs to XYCOM 9400 series large-screen flat panel industrial PC.

It can communicate with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems via serial or ethernet.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Support MS-DOS,Windows95/98/NT/2000 operating system and XYCOM SoftScreen HMI software.

Real-time display process values,bar graphs,trend curves and system alarm messages.

Touchscreen or membrane keypad for parameter modification,mode selection and manual operation.

Large 18.1-inch display for multi-group process data simultaneous viewing.

Hardware watchdog timer,prevent system crash under continuous long-time running.

Power-on self-test for CPU,memory,disk and peripheral hardware fault detection.

ISA/PCI expansion slots to install communication or data acquisition boards for function upgrade.

Installation

Embed the unit into cabinet panel cutout and lock mounting brackets.

Connect 115/230VAC power cable and protective earth wire.

Wire serial or ethernet cable to VME controller or DCS host.

Power on,enter BIOS to adjust hardware parameters.

Install OS and HMI project,test display,touch/keypad and communication function.

Interface

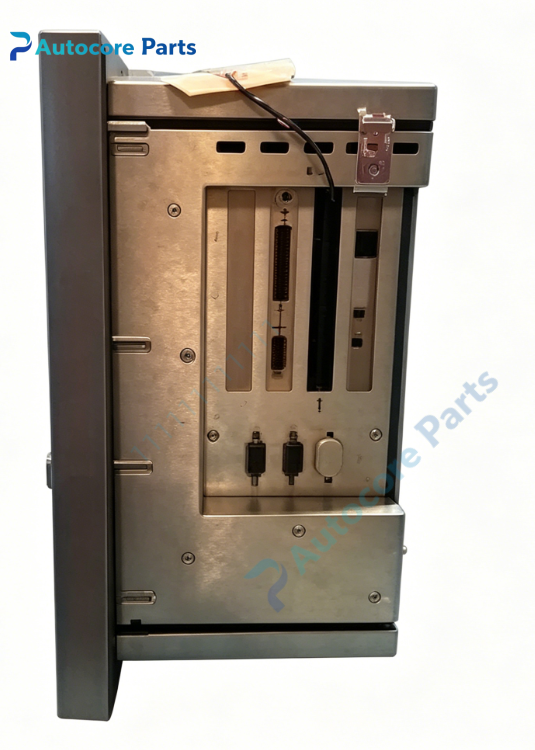

AC power terminal,COM1/COM2 RS232 port,10/100M RJ45 ethernet,LPT port,PS/2 port,front floppy bay,18.1 inch XGA LCD display,touchscreen or membrane keypad,LED indicators:PWR,HDD,STATUS.

Feature

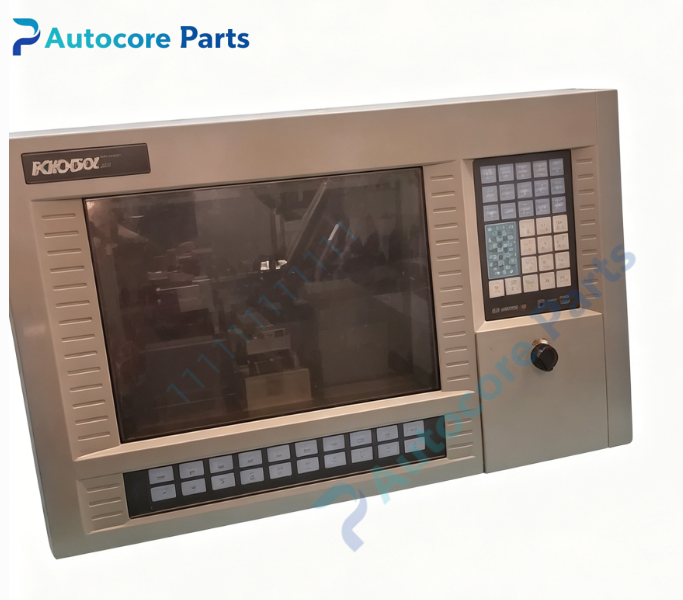

18.1-inch large XGA TFT screen,suitable for multi-point process monitoring.

Sealed NEMA4/4X/12 front panel,dust and splash resistant for factory harsh environment.

7 full-length expansion slots,strong compatibility with legacy ISA and PCI boards.

TFT active matrix LCD with impact protective shield,improved readability.

Support legacy operating systems,compatible with old turbine monitoring application software.

Discontinued legacy industrial panel PC,supply only for old production system spare replacement.

Metal rugged enclosure,shock and vibration resistance for continuous 24h operation.

Diagnostic

Check PWR,HDD,STATUS LED;boot failure:check memory module,hard disk and power supply;communication fault:verify serial/ethernet wiring,baud rate or IP setting;display abnormal:inspect LCD panel,contrast adjustment and video circuit.

Product Brief

XYCOM 9485 is 9400 series 18.1 inch large-screen sealed flat panel industrial PC.

It is used as local HMI monitoring workstation for legacy turbine and compressor control system,realizes multi-group process data display and manual operation,widely applied to spare replacement for petrochemical and power plant old DCS renovation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and transformation.
