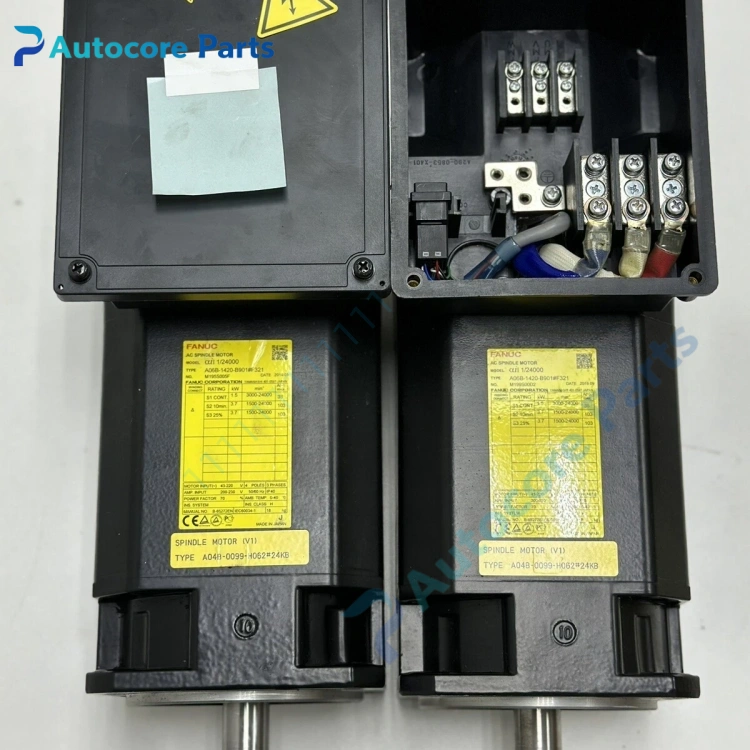

A06B-1420-B901 Spindle Motor Unit

Feature & Principle

It is an AC spindle motor driven by spindle amplifier. It receives drive control signals and converts electric energy into high-speed rotary power for machine spindle. Built-in spindle position sensor feedback signal, supports rigid tapping, spindle positioning and wide-range speed adjustment, with overload and overheat protection.

Specifications

Model: A06B-1420-B901 Brand: FANUC Type: αi AC spindle motor Voltage: 3 phase 200-230V Cooling: Air cooling Mounting: Flange mounting Application: CNC machine spindle Certification: CE, UL

Components & Diagnostics

Stator winding, rotor, spindle position sensor, cooling fan, power and signal connector, motor housing. Common faults: winding insulation damage, sensor signal loss, fan failure, bearing abnormal noise, connector poor contact.

Product Brief

A06B-1420-B901 spindle motor, FANUC CNC spare widely used for machining center, CNC lathe and milling machine spindle system maintenance.
