ABB 07KR31 FPR36000227R1202‑S Central Processing Unit Module

Technical Specifications

Model: 07KR31

Part Number: FPR36000227R1202‑S

Brand: ABB

Product Type: PLC central processing unit module

Matching System: ABB MasterPiece 200 PLC control system

Power Supply: Backplane DC 24V power supply

Memory: Built‑in program memory and data memory

Communication Interface: On‑board system bus, serial communication port

Operation Mode: Supports cyclic program scanning, fault log recording

Installation Method: Rack plug‑in module installation

Operating Temperature: 0℃ ~ +60℃, non‑condensing

Protection Class: IP20

Weight: 0.39kg

Dimension: 220mm × 145mm × 28mm

Compatible System: Industrial production line, power auxiliary control cabinet

Core Function: As core CPU unit of MasterPiece 200 PLC system, execute user control program, process I/O signal data, complete logic operation, data processing and communication interaction, realize automatic control of on‑site industrial equipment.

Product Details

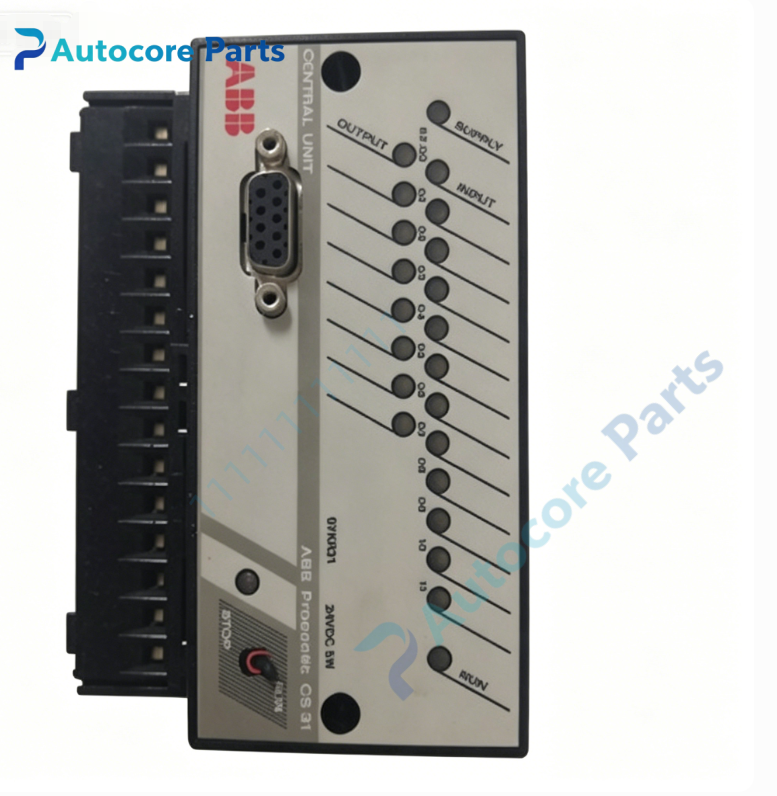

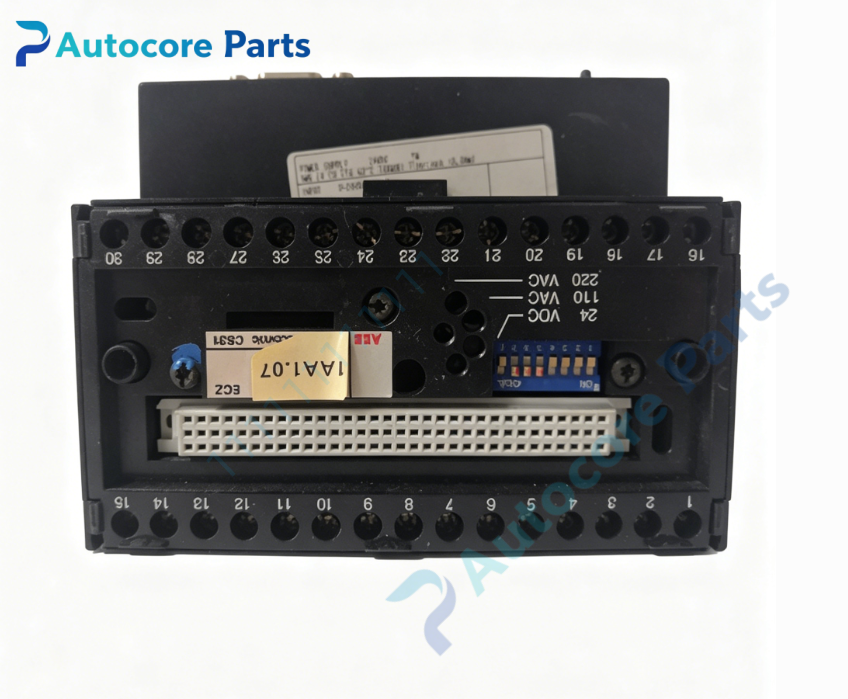

The 07KR31 FPR36000227R1202‑S is central processing unit module for ABB MasterPiece 200 PLC system.

This 07KR31 CPU module undertakes core program operation work of the whole control system. It cyclically executes user‑written logic control programs, collects status data from each I/O module on the rack.

It completes logic judgment, arithmetic calculation and data processing, and sends control commands to output modules to drive field actuators.

Equipped with serial communication interface, it supports data exchange with upper computer, HMI and other third‑party equipment.

On‑board memory stores user application program and process data, supports fault event recording for post‑incident analysis.

LED status indicators on front panel show running, fault and communication status for quick on‑site diagnosis.

Standard rack plug‑in structure, easy for maintenance and module replacement.

It is widely used in transformation and maintenance projects of old industrial equipment, power plant auxiliary control system.

It is important spare hardware for PLC system overhaul, control program debugging and defective 07KR31 module replacement.
