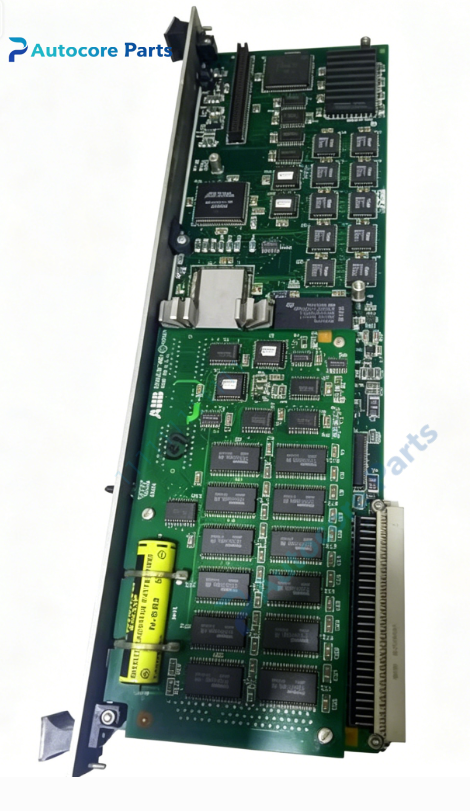

ABB 086349‑002 Digital Output Board

Technical Specifications

Model: 086349‑002

Part Number: 086349‑002

Brand: ABB

Product Type: Digital output I/O board

Matching System: ABB Advant AC31 PLC System

Power Supply: Rack backplane 24VDC

Output Channels: 16‑channel digital output

Output Type: 24VDC transistor output

Isolation: Channel‑to‑backplane galvanic isolation

Installation Method: Standard Advant AC31 rack slot mounting

Operating Temperature: 0℃ ~ +60℃, non‑condensing

Protection Class: IP20

Weight: 0.45kg

Dimension: 462mm ×80mm ×273mm

Compatible System: Power plant, chemical, papermaking legacy Advant AC31 control cabinet

Core Function: Special digital output board for Advant AC31 PLC system. It converts internal control logic signals into field‑side switch output signals, drives solenoid valves, contactors, indicator lamps and other field actuators, realizes on‑off control for field equipment.

Product Details

The 086349‑002 is 16‑channel digital output board for ABB Advant AC31 PLC control system.

This board is installed inside Advant AC31 standard rack and connects to system backplane bus. It receives control instructions from CPU unit, outputs 16‑channel 24VDC switching signals to field actuators, completes switch‑on / switch‑off control of valves, contactors and local indicators.

Front‑panel LED status indicators show channel output status and module fault alarm information for quick on‑site troubleshooting. Built‑in channel diagnosis function can detect output short‑circuit and channel failure, and feed back fault information to PLC controller. Conformal coated circuit board enhances anti‑interference performance, adapts to harsh industrial workshop environment.

It belongs to legacy Advant AC31 hardware, mainly used for spare‑part replacement and maintenance of old‑generation PLC systems. Widely applied in overhaul and renovation projects of power, chemical and papermaking industries.

It is important spare hardware for digital output loop debugging and defective 086349‑002 board replacement.
